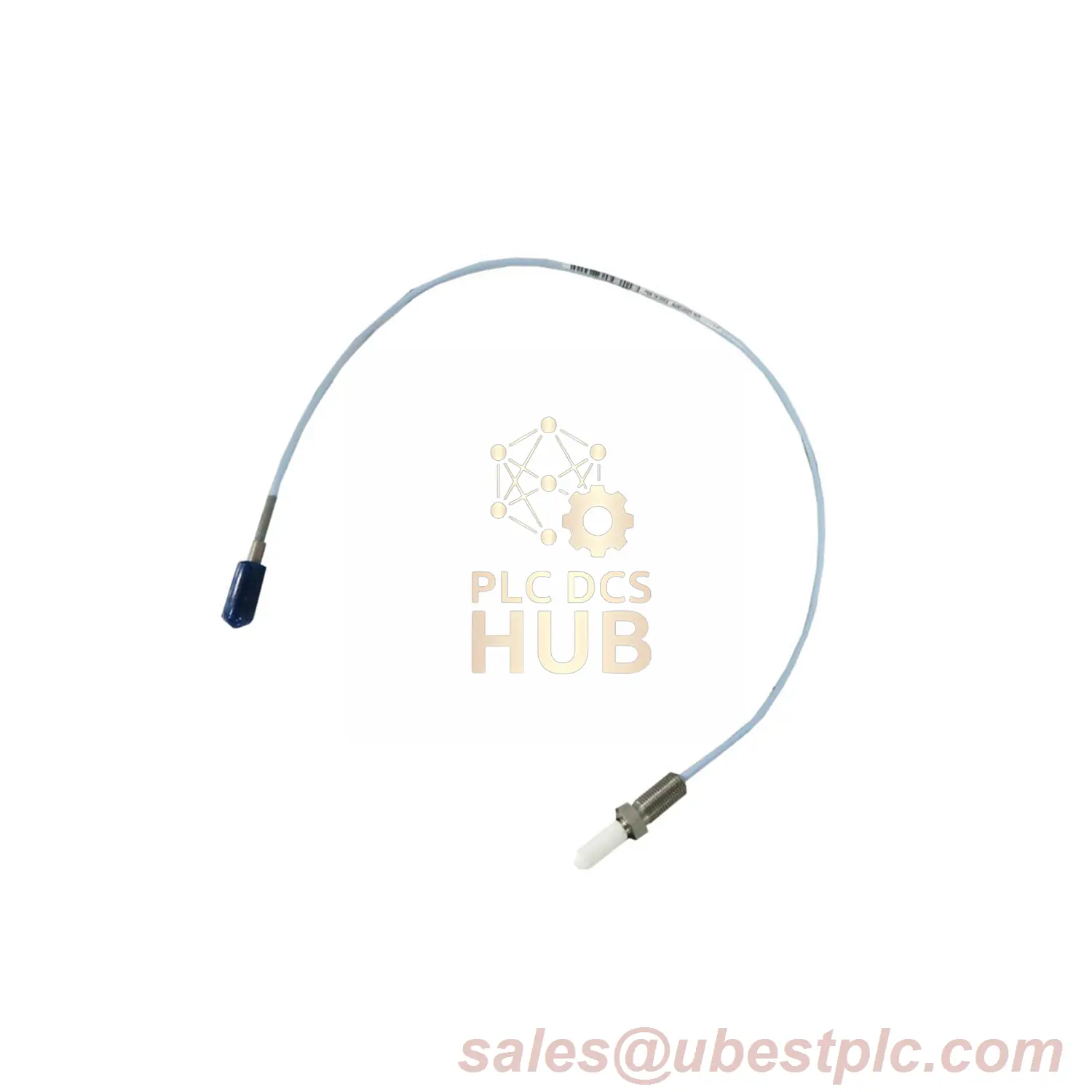

Bently Nevada 330904-08-10-50-02-05: 5-Meter Industrial Proximity Probe
New factory-packed 3300 NSv vibration sensor with 5m armored cable. Perfect for large machinery monitoring. Free global shipping via FedEx, UPS, or DHL. Includes 12-month warranty.
Model Number Explained
- 330904 – M8X1 thread with armor
- 08 – 80mm unthreaded section
- 10 – 100mm total case length
- 50 – 5.0 meter cable
- 02 – ClickLoc connector
- 05 – Safety approvals (ATEX/IECEx)
Performance Specifications
- Measurement Range
- Linear detection: 0.25-1.75mm
- Accuracy: ±0.06mm deviation
- Electrical Data
- Probe resistance: 5.3Ω ±0.7Ω
- Sensitivity: 7.87V/mm
- Frequency range: 0-10,000 Hz
- Durability Features
- Stainless steel armor
- Min. bend radius: 25.4mm
- Viton O-ring seal
Quick Setup Guide
- Set gap: 1.0 mm from target
- Max install torque: 5.1 N•m
- Use shielded triad cable for wiring
- Max wiring distance: 305 meters
Technical FAQ
Q: What’s the cable material?
A: FEP-insulated coaxial for maximum protection
Q: Pressure rating?
A: Seals differential pressure (Viton O-ring)
Q: Minimum bend radius?
A: 25.4mm even with armor
Q: Thread depth limit?
A: Max 12mm engagement for M8X1
Q: Warranty coverage?
A: 12 months from shipment date
Download Resources
- Full installation manual
- Vibration analysis guide
- Compatibility checklist
