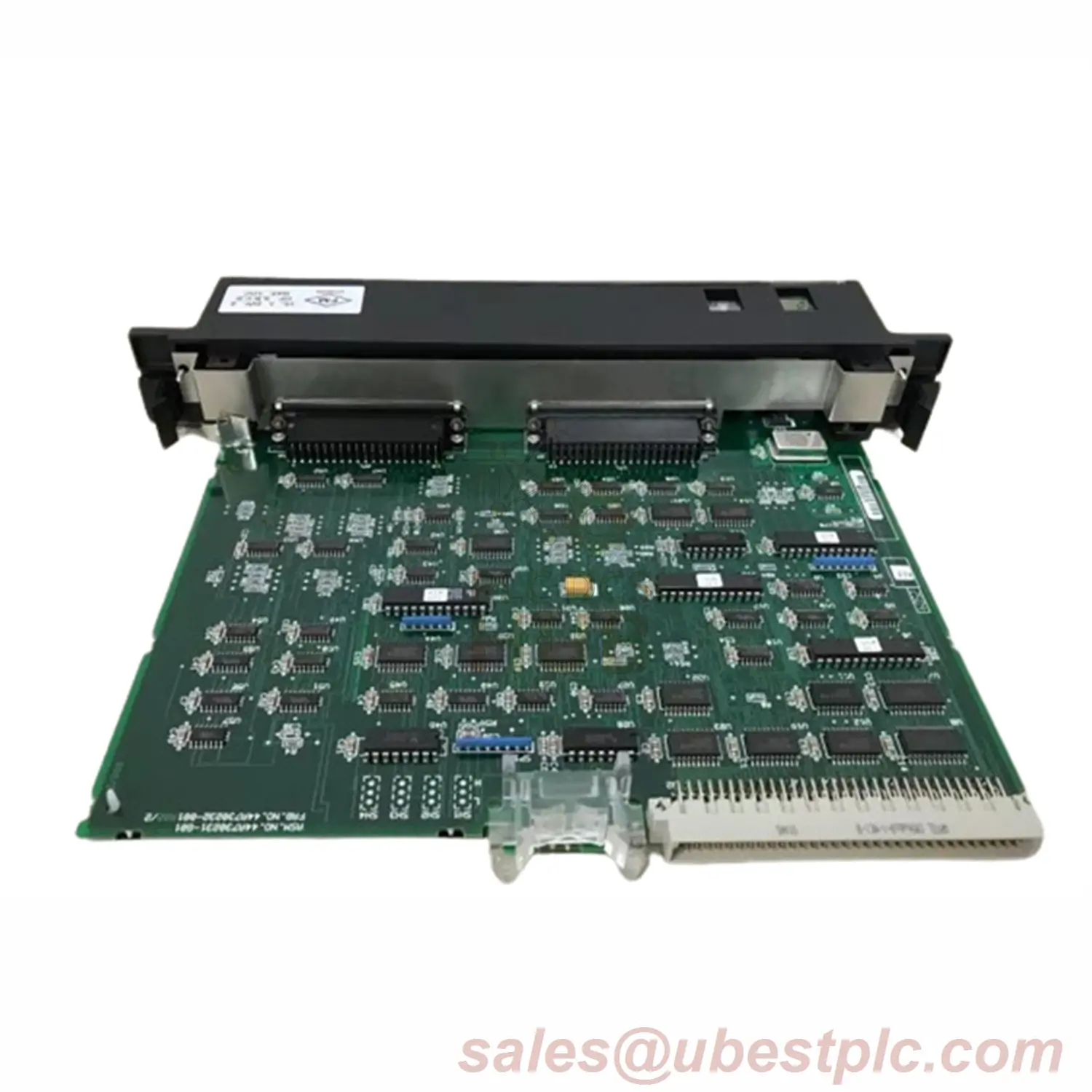

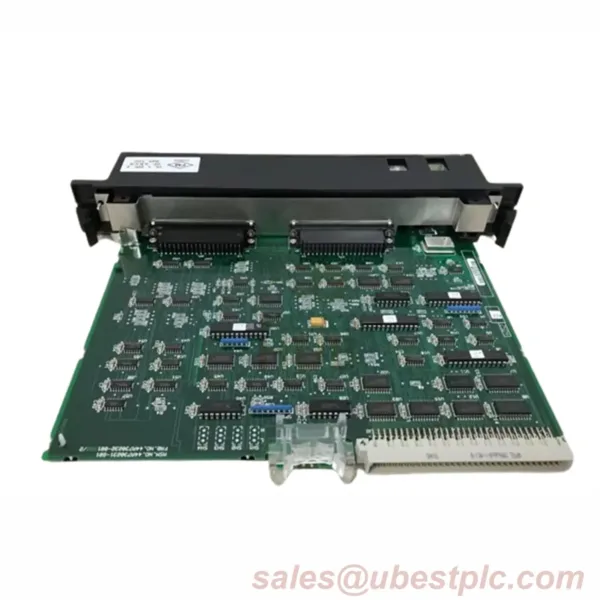

GE Fanuc IC697BEM741 FIP Bus Controller
Advanced dual-channel controller for WorldFIP networks. Connects Series 90-70 PLCs to 1.0 Megabit fieldbus systems. Supports up to 128 devices with real-time I/O scanning and diagnostics.
Technical Specifications
| Brand | GE Fanuc |
| Model | IC697BEM741 |
| Series | 90-70 PLC |
| Fieldbus Standard | WorldFIP EN50170 |
| Network Speed | 1.0 Megabit/sec |
| Max Devices | 128 nodes |
| Voltage | 5V DC ±5% |
| Current Draw | 1.3A (backplane) |
| Ports | 2x FIP Bus, 1x 15-pin serial |
| LED Indicators | 6 status lights |
| Operating Temperature | 0°C to 60°C |
| Configuration Software | Logicmaster 90-70 |
Installation Procedure
- Mount in IC697 VME rack single slot
- Connect 15-pin serial port for configuration
- Attach FIP Bus cables to 9-pin connectors
- Verify rack power supply stability
Diagnostics Features
- 6 LED indicators for status monitoring
- Module OK and RUN LEDs for health check
- 4 communication status indicators
- Front-panel reset button
Packaging Contents
- IC697BEM741 controller unit
- Mounting hardware
- Documentation booklet
- Shipping via FedEx, UPS, or DHL
