Description

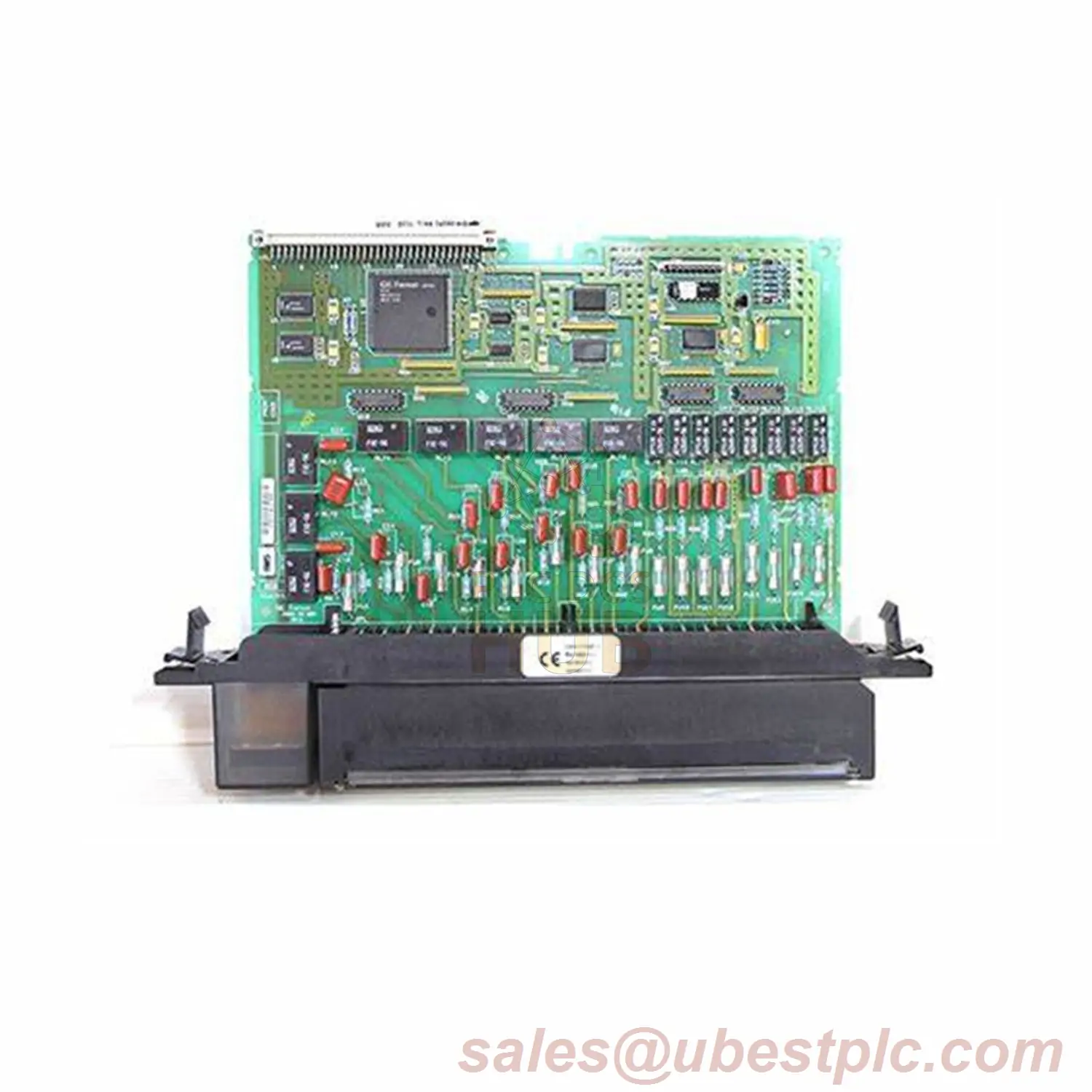

High-Voltage AC Input Module
???? Core Features
IC697MDL241: 16 isolated 240V AC inputs with 20ms filter delay. Built for heavy-duty industrial environments. Compatible with 2/3-wire proximity switches & sensors.
???? Key Specifications
- Model: IC697MDL241
- Brand: GE Fanuc (Emerson)
- Voltage: 240V AC (60 Hz)
- Input Current: 20 mA (on-state)
- Backplane Draw: 0.25A @5V DC
- Isolation: Phase-to-phase & input-to-logic
- LEDs: Per-point status indicators
⚙️ Installation & Use
- Mechanical Keying: Ensures correct slot replacement.
- Configuration: Windows NT/95 software via SNP/Ethernet.
- Compatible Devices: Limit switches, pushbuttons, proximity sensors.
???? Industry Applications
- Heavy Machinery: Monitor safety interlocks on presses.
- Energy Plants: Track high-voltage circuit breaker status.
???? Support & Shipping
- 12-month warranty
- Global delivery: FedEx, UPS, DHL
- Weight: 0.9 lbs (0.4 kg)
❓ FAQs
Q: Max leakage current?
A: ≤5 mA in off-state.
Q: Software requirements?
A: GE Series 90-70 tools on Windows NT/95.
Q: Input types supported?
A: 2-wire/3-wire switches, pushbuttons, selectors.
