Description

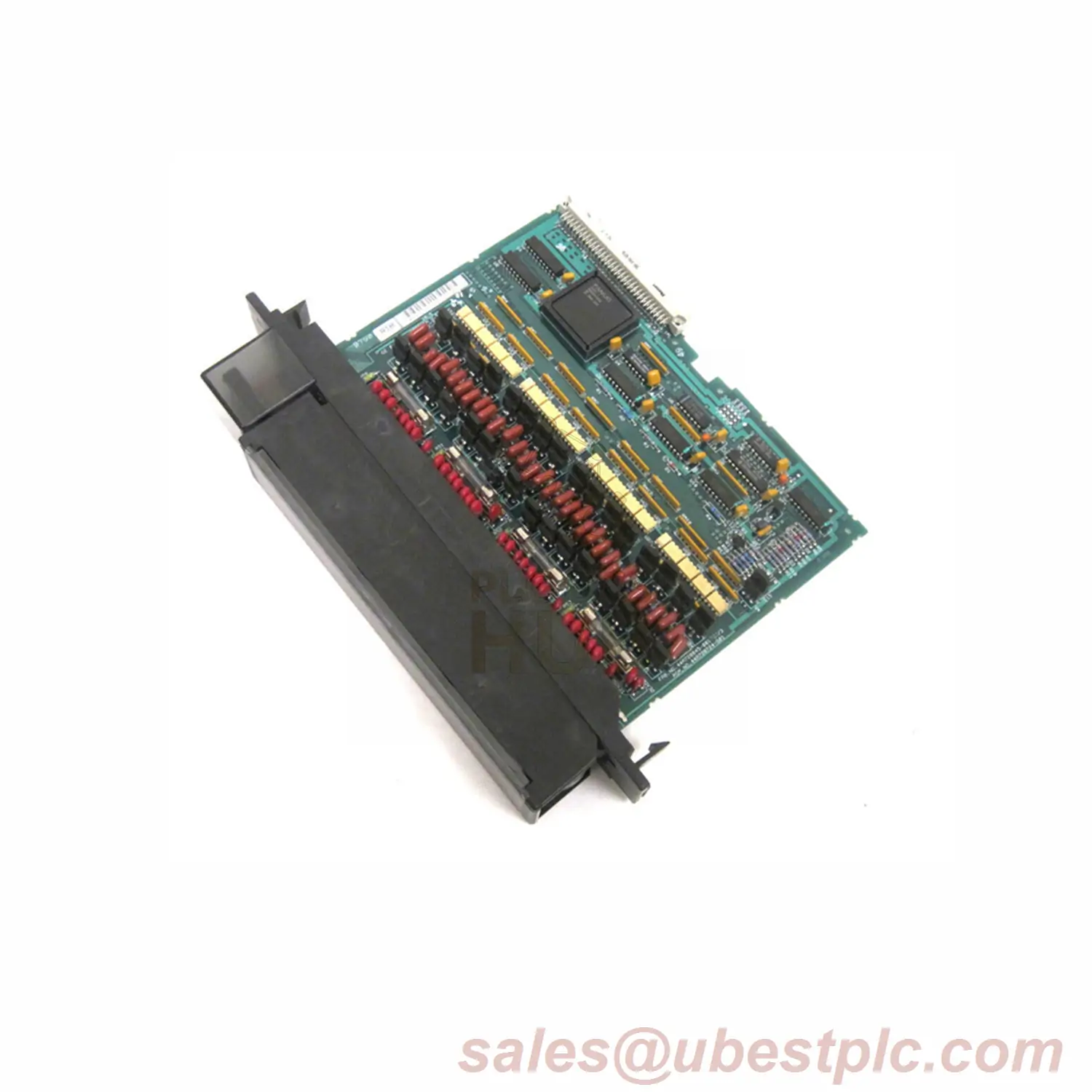

High-Capacity AC Output Module
⚡ Core Features
IC697MDL350 Control 32 AC outputs (4 groups of 8) with 0.5A per point. Handles 20x inrush current for motors, solenoids & heavy loads.
???? Key Specifications
- Model: IC697MDL350
- Brand: GE Fanuc (Emerson)
- Voltage: 120V AC (47-63 Hz)
- Current/Point: 0.5A
- Current/Group: 2A (max)
- Fuse Rating: 5A per group
- Backplane Draw: 0.5A @5V DC
- LEDs: Per-point status & fuse health
⚙️ Installation & Use
- Mechanical Keying: Ensures correct module replacement.
- Configuration: Windows NT/95 software via SNP/Ethernet.
- Heat Management: Auto current limiting at high temps.
???? Industry Applications
- Packaging Lines: Drive multiple conveyor motors & actuators.
- Water Treatment: Control pump starters & valve solenoids.
???? Support & Shipping
- 12-month warranty
- Global delivery: FedEx, UPS, DHL
- Weight: 1.1 lbs (0.5 kg)
❓ FAQs
Q: Fuse replacement needed?
A: Only if blown – rated for 5A per group.
Q: Compatible loads?
A: Motors, indicators, solenoids (120V AC).
Q: Heat limits?
A: Groups auto-limit current above 2A to prevent overheating.
