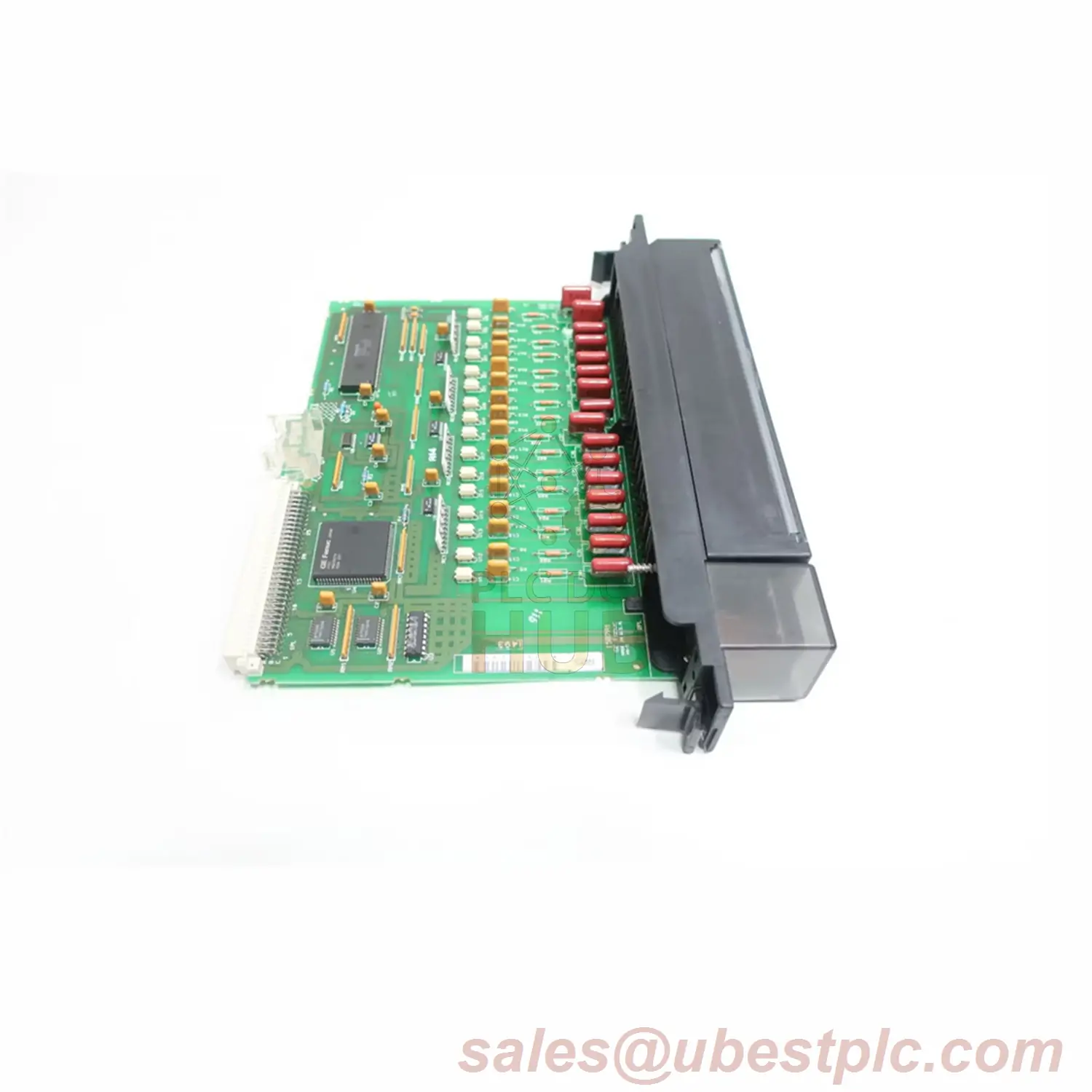

GE Fanuc IC697MDL652 Discrete Input Module – 32-Point DC Logic Solution
Product Overview
Advanced 12V DC input module for Series 90-70 PLC systems. Features dual positive/negative logic and selectable filtering. Ideal for precision control with wide voltage tolerance (-2.5 to 15V DC).
Technical Specifications
| Brand | GE Fanuc |
| Model | IC697MDL652 (Full Suffix) |
| Input Points | 32 (4 groups × 8 points) |
| Rated Voltage | 12V DC |
| Voltage Range | -2.5 to 15V DC |
| Input Current | 4.7mA |
| ON-State Range | 7.5-15V / 6-15mA |
| OFF-State Range | 0-2.5V / 0-2.5mA |
| Isolation Voltage | 1500V (backplane) |
Installation Steps
- Power down PLC rack
- Insert in compatible slot
- Connect DC wiring per diagram
- Configure logic via software
Package Includes
- IC697MDL652 Module
- Installation manual
- Terminal labels
Shipping Info
Global delivery via FedEx, UPS, DHL. Tracking provided within 24hrs.
FAQ
AC power supported?
No – DC power only
Minimum ON-state voltage?
7.5V DC required
Interrupt input capability?
Yes – One configurable interrupt input
