Description

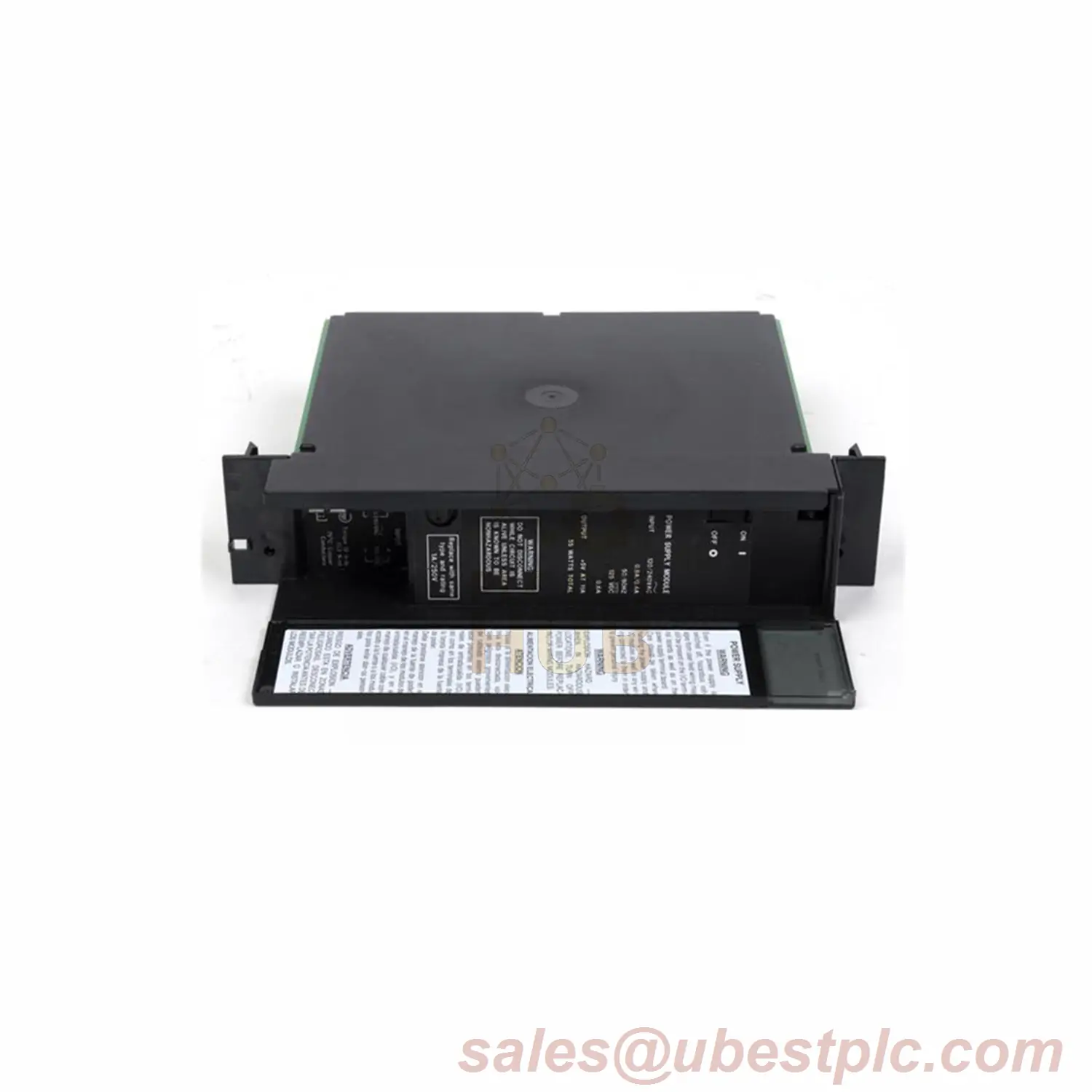

GE Fanuc IC697PWR748 Power Supply – Dual-Rack 90W Solution
Product Overview
Robust 90W rack-mounted power supply for Series 90-70 systems. Powers two PLC racks simultaneously with 35-60VDC input range. Features overcurrent protection and VME compatibility for industrial reliability.
Technical Specifications
| Brand | GE Fanuc |
| Series | Series 90-70 |
| Model | IC697PWR748 |
| Input Voltage | 35-60VDC (48VDC nominal) |
| Output Power | 90W max |
| Output Channels | +5VDC@18A, +12VDC@1.5A, -12VDC@1A |
| Ride-Through | 10ms minimum |
| Overcurrent Protection | Electronic limit on all outputs |
Installation Steps
- Power down system
- Align with 48-pin backplane connector
- Secure with included mounting screws
- Connect primary and secondary racks
- Verify load requirements for secondary rack
Package Includes
- IC697PWR748 Power Supply
- Mounting screws
- Installation manual
Shipping Info
Global delivery via FedEx, UPS, DHL. Industrial packaging for sensitive electronics. Tracking provided.
FAQ
Maximum secondary rack load?
≤5.2A@5VDC – Exceeding may damage unit
Operating temperature limit?
50°C maximum ambient temperature
Inrush protection?
Yes – Limits energy to 28 joules at 60VDC input
Minimum load requirement?
1.0A on +5VDC output
Total output capacity?
90W combined across all outputs
