Description
Reliable Digital Input Module for Industrial Control

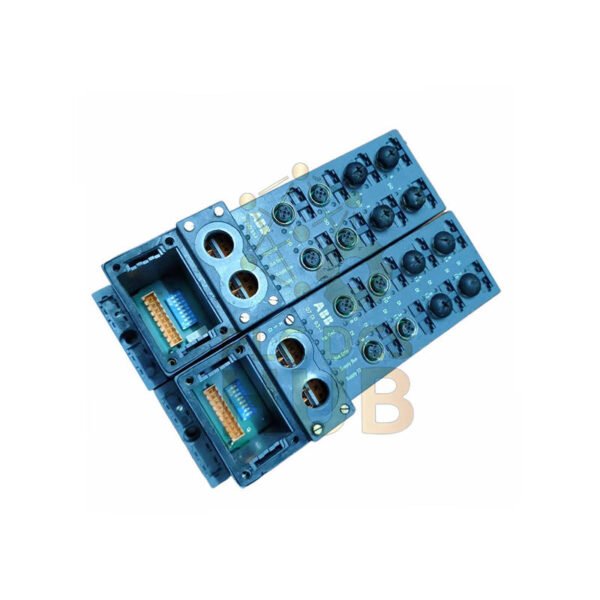

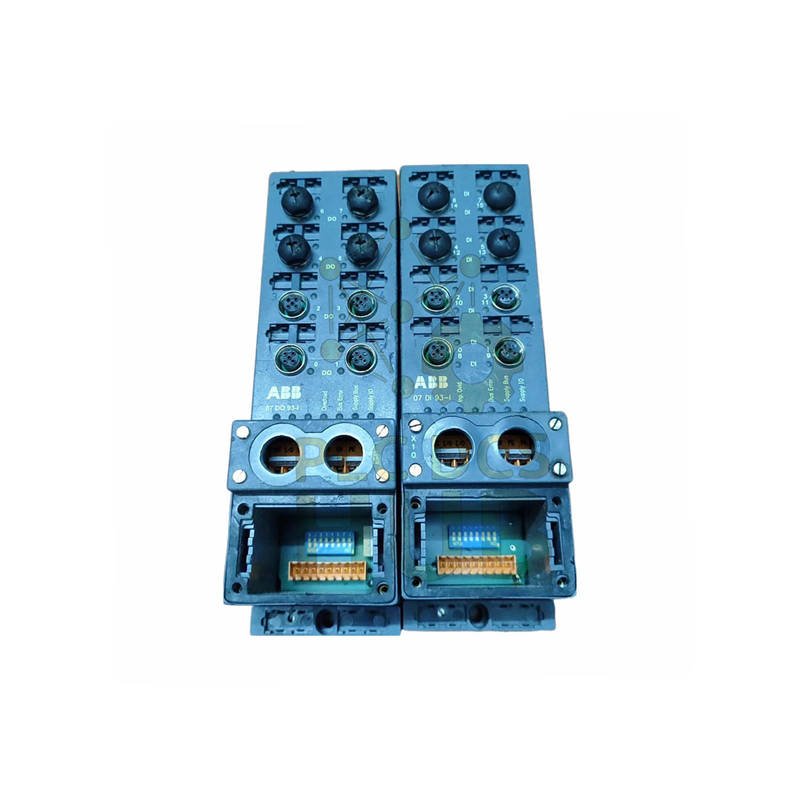

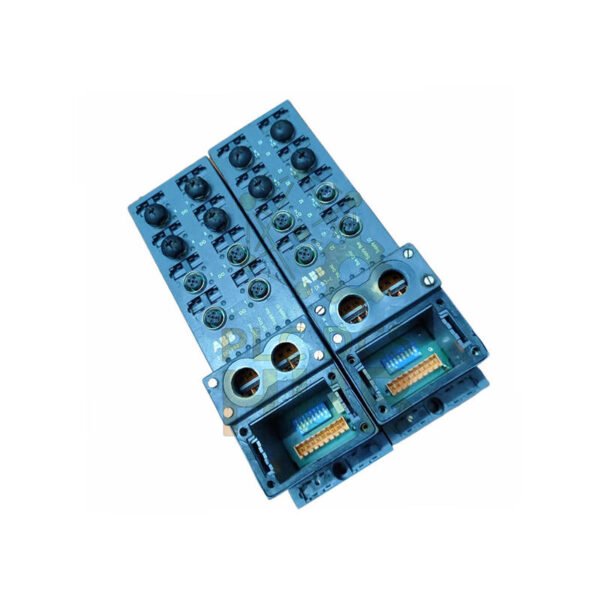

This 07DI93-I GJV3075613R0202 module is a high-quality digital input solution. It connects sensors and switches to your control system. Perfect for factory automation and machinery. Built for stable performance in tough conditions.
Quick Overview: Module 07DI93-I GJV3075613R0202
- Product Type: Industrial Digital Input Module
- Key Model: 07DI93-I GJV3075613R0202
- Power Supply: 24V DC (15-30V DC range)
- Input Current: Very low, max 10 mA per channel
- Isolation: 500V AC isolation for safety
- Response Speed: Fast, less than 5 milliseconds
- Protection Class: IP20 for indoor electrical cabinets
- Reliability: High MTBF > 100,000 hours
- Condition: New & Original
- Warranty: 12 Month Coverage
- Shipping: Worldwide via FedEx, UPS, DHL
Complete Technical Specifications
- Electrical Ratings:
- Supply Voltage: 24 V DC ±20% (15 to 30 V DC range).
- Input Current per Channel: Maximum 10 mA.
- Isolation Voltage: 500 V AC between field and system.
- Environmental Limits:
- Operating Temperature: -20°C to +60°C.
- Storage Temperature: -25°C to +85°C.
- Humidity: 5% to 95% RH, non-condensing.
- Physical Data:
- Dimensions: 220 mm x 63.0 mm x 70.5 mm.
- Weight: 0.47 kg (approximately 1.04 lbs).
- Mounting: Standard DIN rail mount.
- Status Indicators (LEDs):
- Green LEDs (2): Show healthy power supply (>18V).
- Yellow LEDs (8): One per channel for input signal status.
- Red LEDs (2): Indicate bus error or input overload/short-circuit.
Key Features & Benefits
- Wide Voltage Input: Works from 15V to 30V DC. Handles power fluctuations easily.
- Fast & Accurate: Under 5 ms response time for quick system reaction.
- Easy Diagnostics: Bright LED indicators show channel status and faults instantly.
- Built to Last: High MTBF (>100k hours) means less downtime and lower cost.
- Simple Integration: Standard dimensions and DIN rail mounting for easy setup.
Frequently Asked Questions
- How many input channels does this module have?
- It has 8 digital input channels. Each channel has its own status LED.
- Can I use this module in a very cold environment?
- Yes. It operates in temperatures as low as -20°C. Perfect for unheated factory areas.
- What does the IP20 protection rating mean?
- It protects against touch by fingers. It is for indoor use inside electrical enclosures. Keep it dry.
- The red “Input Overload” LED is on. What should I do?
- Check the connected sensor wiring. This light means a possible short-circuit or overload on the sensor supply.
- Is this module compatible with my existing PLC system?
- It is designed for standard industrial bus systems. Please check your main controller’s manual for compatible I/O modules.
