Description

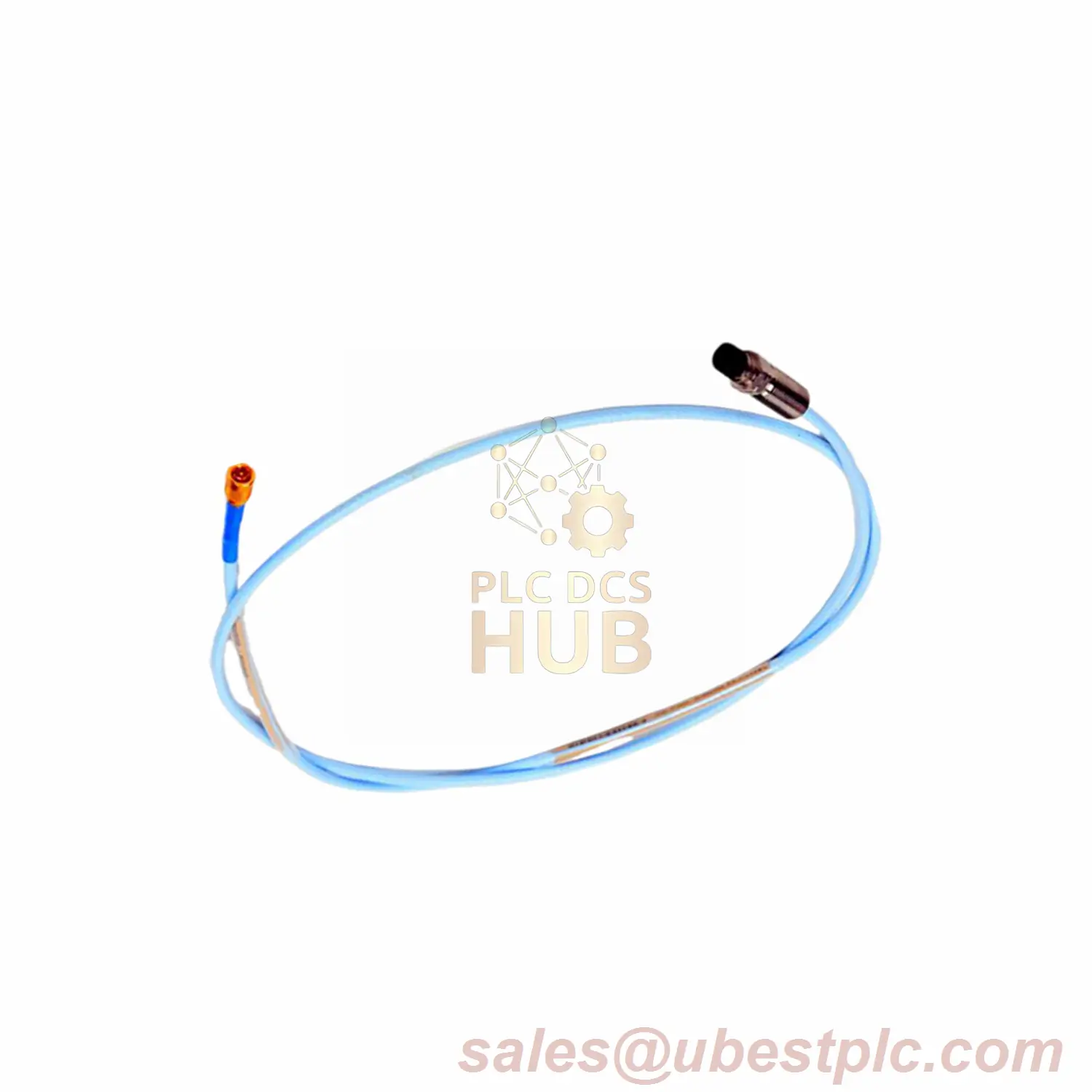

Bently Nevada 3300 XL 8 mm Proximity Probe
Optimized for heavy-duty industrial diagnostics, 330103-00-08-10-02-00 features an 80mm case length and reinforced ClickLoc connectivity for stable signal transmission in harsh environments.
Suffix Decoding
- 330103-00-08-10-02-00:
- 00: Zero unthreaded length
- 08: 80mm overall case
- 10: 1.0m cable (3.3 ft)
- 02: ClickLoc® connector
- 00: Non-certified
Dynamic Performance
- Sensitivity Drift: <±1.5% over full temperature range
- Step Response Time: 2.8 ms (10-90% output)
- Hysteresis Error: 0.12% of full scale
- Cable Capacitance: 98 pF/m max
Durability Metrics
- Shock Survival: 100g peak (11ms half-sine)
- Salt Spray Resistance: 96 hrs @ 5% NaCl
- Dielectric Strength: 1500 Vrms (50/60Hz, 1min)
Certification Matrix
- North America:
UL 60079-11 (Div 2 Groups A-D)
- Europe:
EN IEC 60079-0:2018 + A11:2023
- Global:
IECEx TUR 23.0008X
Specialized Features
- EMI Protection: 30 V/m @ 10-1000 MHz
- Ground Loop Immunity: 1V pk-pk @ 50/60 Hz
- ESD Protection: ±8kV contact discharge
Pro Tip: For installations exceeding 200m cable runs, use Bently Nevada 144791-02 signal conditioner. Technical drawings available via sales@ubestplc.com.
Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
