Description

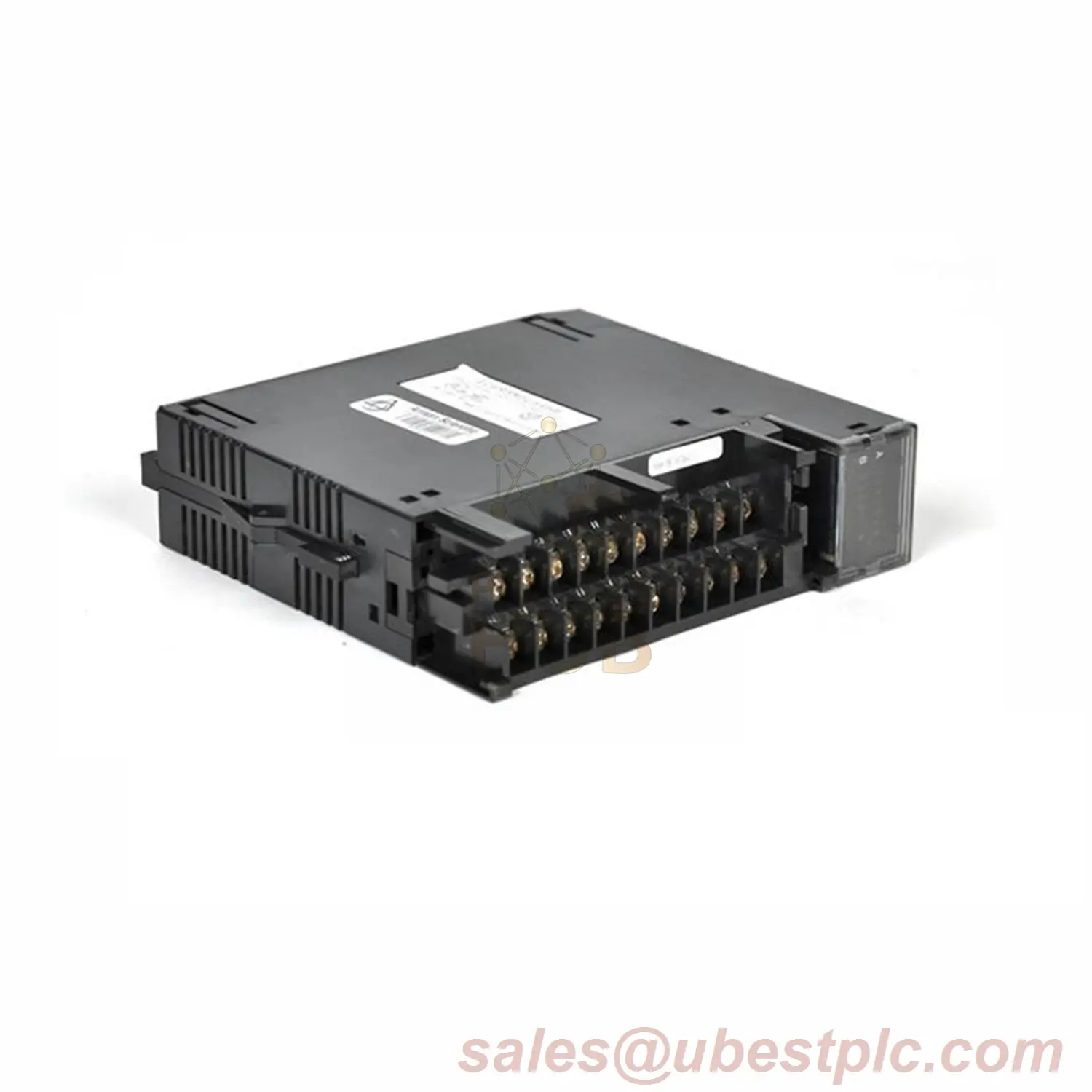

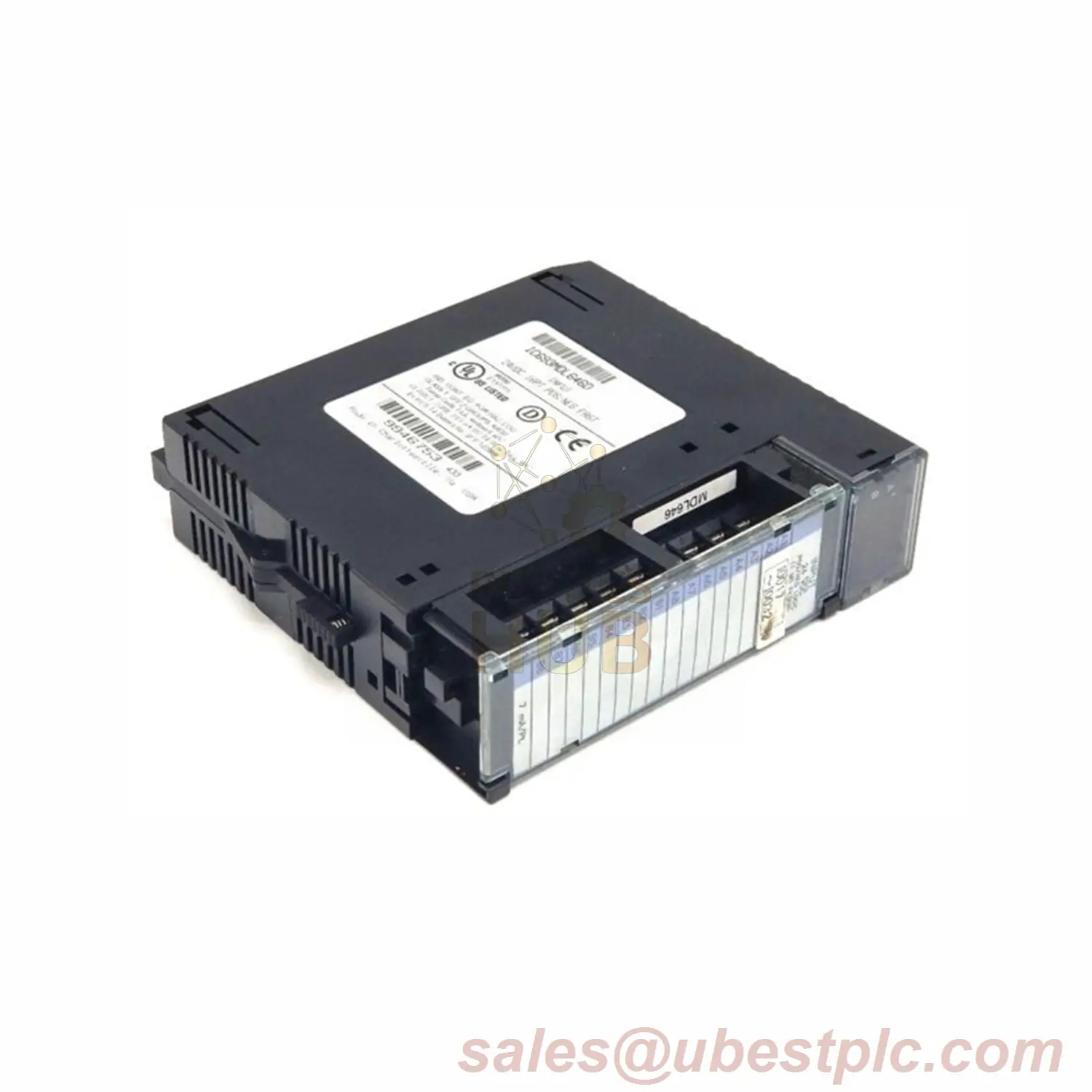

GE Fanuc IC693MDL630 24VDC Input Module
8-point flexible input module for Series 90-30 PLC systems. Supports both positive and negative logic with clear visual indicators. Easy installation in any 90-30 rack.
Technical Specifications
Manufacturer:
GE Intelligent Platforms
Full Model:
IC693MDL630 (Revision: X)
Input Points:
8 discrete
Voltage:
24VDC (operating)
Logic Type:
Positive/Negative
Response Time:
< 5ms typical
Isolation:
1500V field-logic
Power Consumption:
1.8W max
Installation Guide
1. Slide into any Series 90-30 baseplate
2. Secure with two top latches
3. Connect 24VDC external power
4. Wire using color-coded door guides
5. LED indicators show active inputs
Compatibility
- All Series 90-30 PLC racks
- 5-slot and 10-slot baseplates
- Mixed I/O configurations
- 24V sensors and switches
Package & Support
- 12-month manufacturer warranty
- Global shipping: FedEx, UPS, DHL
Technical Questions
Q: What do wiring colors mean?
A: Red=AC, Blue=DC, Gray=signal wiring
Q: External power required?
A: Yes – 24VDC for input devices
Q: How many status LEDs?
A: 8 individual indicators (1 per input)
Q: Can mix AC/DC power?
A: Yes – supports both types
Q: Maximum response time?
A: Under 5 milliseconds
