Invensys Triconex 3504E TMR Digital Input Module | High Density 64-Point DC I/O

Description

Product Description

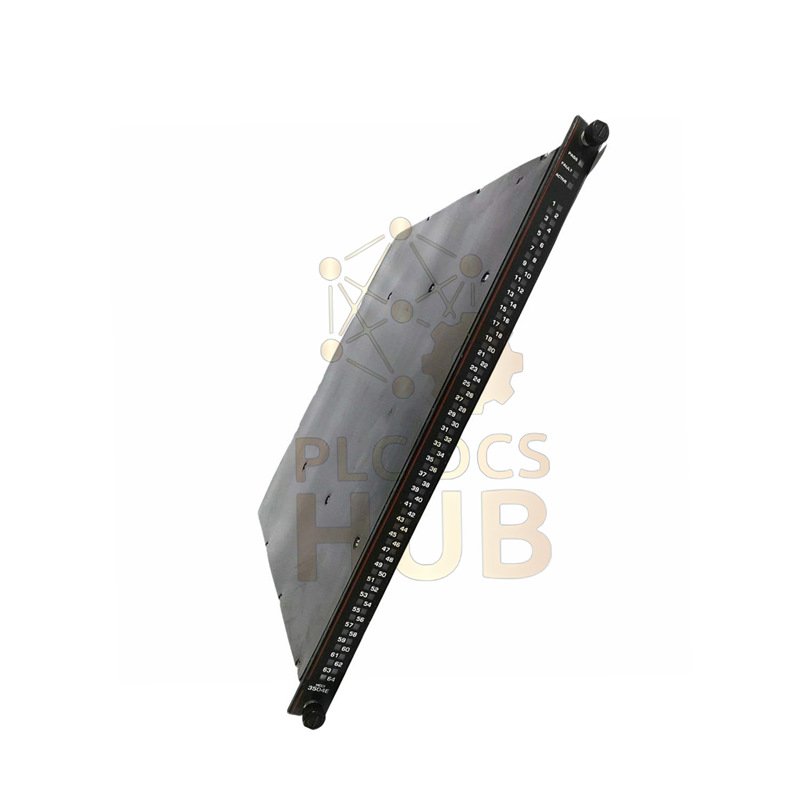

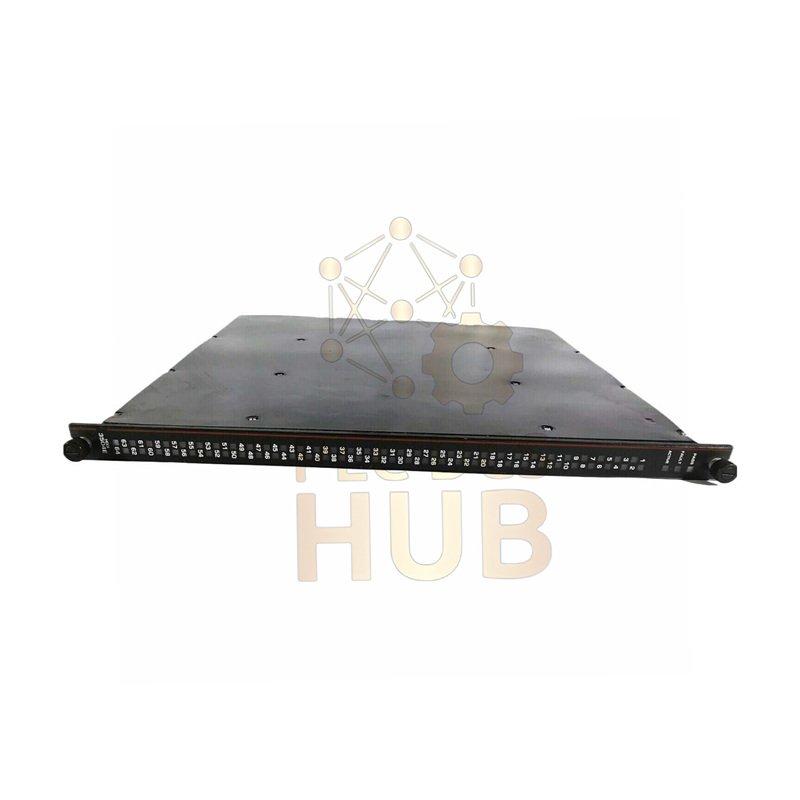

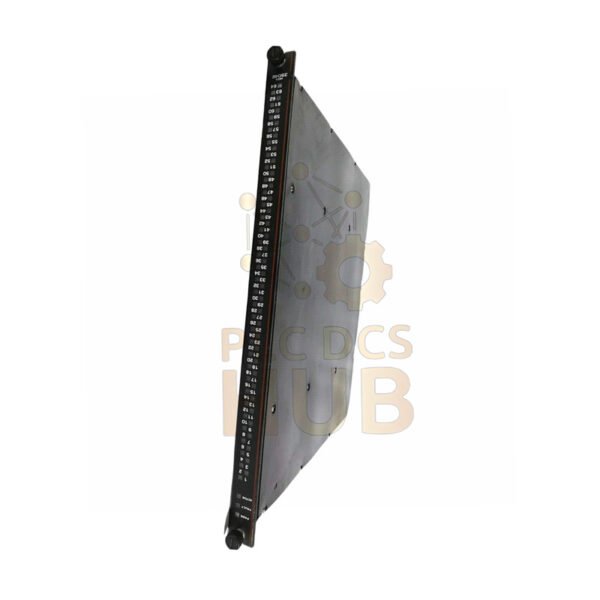

Invensys Triconex 3504E is a high-density digital input module for critical control systems.

It uses Triple Modular Redundancy to ensure high safety and availability.

Flexible voltage selection supports diverse DC field devices.

Fast response improves signal accuracy and system protection.

Clear diagnostics reduce downtime and maintenance effort.

Key Features

• TMR design for fault-tolerant input processing.
• 64 commoned DC inputs save panel space.
• Wide voltage support for industrial signals.
• Per-channel LED indication improves visibility.
• Built-in stuck tests enhance system safety.

Technical Specifications

• Brand: Invensys Triconex
• Model: 3504E
• Series: Triconex Safety I/O
• Module type: High Density Digital Input
• Redundancy architecture: TMR
• Input channels: 64 DC, commoned
• Operating voltage: 24 or 48 VDC, software selectable
• Measurement range: 20–72 VDC
• Maximum input voltage: 72 VDC
• Frequency response: Less than 10 ms
• Sensitivity threshold: 18 VDC at 24 V mode
• Hysteresis: 4 VDC or 7 VDC
• Input impedance: Greater than 30 kΩ
• Resolution: Digital ON/OFF detection
• Environmental tolerance: Industrial control environments
• EMI resistance: Designed for noisy plants
• Module weight: 2.1–2.7 kg
• Color identification: Dark red

Diagnostics and Monitoring

• LED per input shows real-time status.
• Module LEDs indicate PASS, FAULT, and ACTIVE.
• Automatic stuck ON and OFF detection.
• Diagnostics simplify troubleshooting.

Installation Guide

• Insert the module into a supported Triconex chassis.
• Wire DC signals to the commoned terminals.
• Select voltage level via TriStation software.
• Confirm LED status before startup.

Commissioning and Maintenance

• No signal calibration required.
• Online diagnostics support fast health checks.
• Designed for long-term stable operation.
• Routine inspection improves reliability.

Compatibility

• Works with Triconex safety controllers.
• Supports standard DC switches and sensors.
• Configured using TriStation software.

Certifications and Compliance

• Designed for safety instrumented systems.
• Supports regulated industrial applications.
• Suitable for mission-critical environments.

Typical Applications

• Emergency shutdown logic.
• Process safety interlocks.
• Oil and gas safety systems.
• Power generation protection.

Packing List

• One Invensys Triconex 3504E module.
• Protective industrial packaging.
• Quality inspection label.

Warranty and Shipping

• 12-month warranty against manufacturing defects.
• Worldwide shipping via FedEx, UPS, or DHL.
• Secure packaging for global delivery.

FAQ

• Is the module suitable for safety systems?
• Yes. TMR architecture supports high integrity operation.
• Can different voltages be mixed on one module?
• No. Voltage mode is selected per module.
• How can engineers reduce wiring errors?
• Status LEDs help verify signals during startup.
• What improves long-term reliability?
• Redundant voting and continuous diagnostics protect operation.
