Description
Product Description

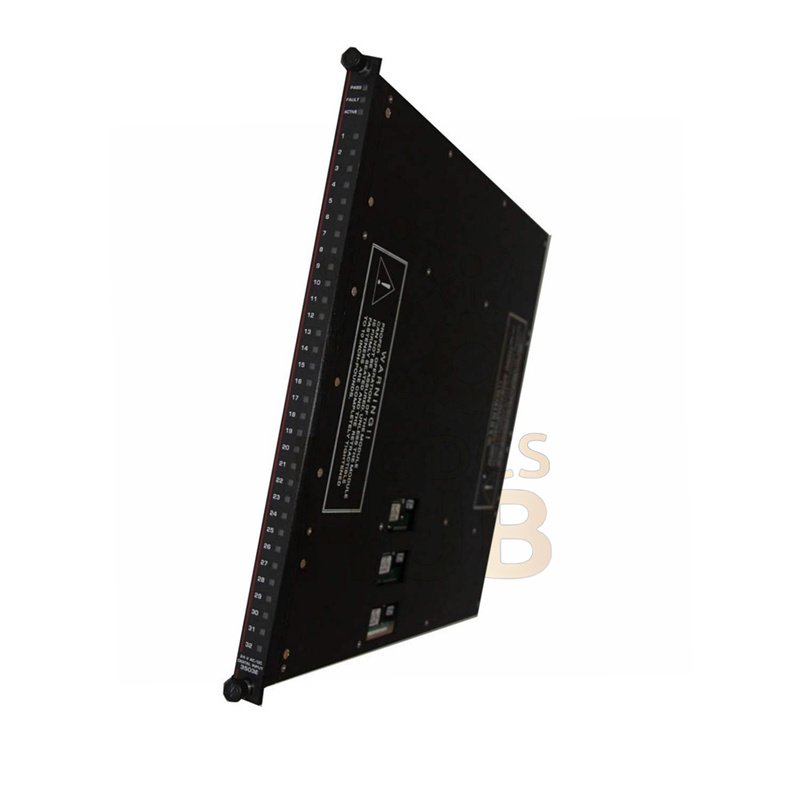

The Triconex 3505E digital input module supports critical safety control. It reads field signals with high stability. It offers fast response and clean switching. And it supports 32 input channels for medium and large systems. It suits continuous operation in demanding applications.
Technical Specifications
- Brand: Triconex
- Model: 3505E Digital Input Module
- Operating Voltage: 24V AC/DC
- Input Voltage Range: 20V to 28V AC/DC
- Input Channels: 32 channels
- Input Current: 6 mA typical
- Input Impedance: 4 kΩ typical
- Signal Delay: 4 ms typical
- Isolation Voltage: 1500V AC channel to logic
- Common Mode Rejection: 60 dB at 50/60Hz
- Operating Temperature: 0°C to 60°C
- Storage Temperature: -40°C to 85°C
- Humidity: 5% to 95% non-condensing
- Vibration Resistance: 1.5 mm at 10-55 Hz
- Weight: 5 kg
Key Performance Capabilities
- Stable measurement across the entire stated input voltage range
- Noise rejection enhances anti-interference performance
- Designed for consistent linear behavior in industrial control
- Fast response time supports safety logic execution
- Diagnostic support simplifies troubleshooting
Installation Guide
- Mount into approved Triconex chassis slot
- Tighten terminal wiring to recommended torque
- Use shielded cables for higher noise immunity
- Confirm grounding before power-up
Commissioning & Maintenance
- Perform channel check before system start
- Use system tools for configuration and testing
- Clean connectors during scheduled shutdowns
- Replace only with identical OEM modules
Compatibility
- Designed for Triconex systems in safety control architectures
- Supports standard 24V AC/DC field devices
- Consult OEM documentation for system-level approval
Certification & Compliance
- Designed for use in industrial automation environments
- Meets common safety system architecture requirements
- Check regional standards with the end user before deployment
Package List
- 1 x Triconex 3505E Digital Input Module
- 1 x Documentation set
- 1 x Protective packing
Warranty & Shipping
- Warranty: 12 months return-to-base
- Shipping: FedEx, UPS, DHL worldwide
Typical Applications
- Power generation control rooms
- Petrochemical process safety systems
- Oil and gas ESD control panels
- Industrial plant protection logic
Diagnostic Support
- Channel status indication for quick fault isolation
- Supports error evaluation in system software
- Predictive maintenance planning through monitored inputs
FAQ
Can this module handle mixed AC and DC input?
Yes. It accepts the stated 20V to 28V AC/DC range.
Is special configuration software required?
Yes. Use the approved Triconex programming tools.
Can I replace older input modules with this model?
Yes. Confirm slot and system compatibility before installation.
How often should channel tests be done?
Field teams often test channels during scheduled shutdown cycles.
Does it need external filtering?
Use shielded wiring where electrical noise is high.
Can it run in non-conditioned environments?
Keep operation within the stated environmental ranges.
