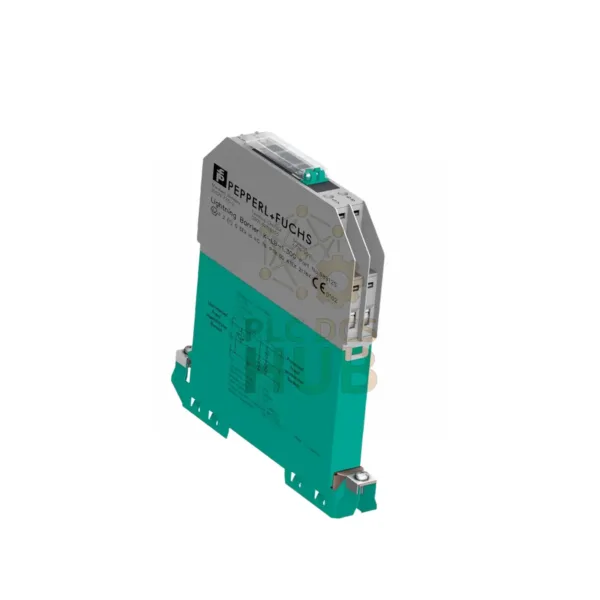

Pepperl+Fuchs K-LB-2.30G – High-Performance 2-Channel Surge Protection Barrier

How It Works

The K-LB-2.30G protects against lightning and power surges. It redirects excess current to ground and keeps voltage safe. Install on a standard 35 mm DIN rail.

Technical Specifications

• Brand: Pepperl+Fuchs
• Model: K-LB-2.30G (Surge Protection Barrier)
• Channels: 2
• Max Voltage: 30V DC
• Surge Current: 20 kA (8/20 µs)
• Response Time: < 30 ms
• Leakage Current: < 10 µA
• Operating Temp: -30°C to 80°C (-22°F to 176°F)
• Protection Rating: IP20
• Weight: 100 g

Installation Tips

• Mount on a 35 mm DIN rail.
• Connect protected side to terminals 5,6 and 7,8.
• Unprotected side goes to terminals 1,2 and 3,4.
• Use a high-quality ground connection.

FAQ

1. Can the K-LB-2.30G handle HART signals?
   Yes, it is HART transparent.
2. What is the max surge current?
   20 kA (8/20 µs).
3. Is it safe for hazardous areas?
   Yes, with proper installation.
4. How fast does it respond to surges?
   Less than 30 ms.
5. What wire size fits the terminals?
   Up to 2 x 2.5 mm².
