Pepperl Fuchs | Surge Protection Barrier K-LB-1.30G Fast Delivery

Description

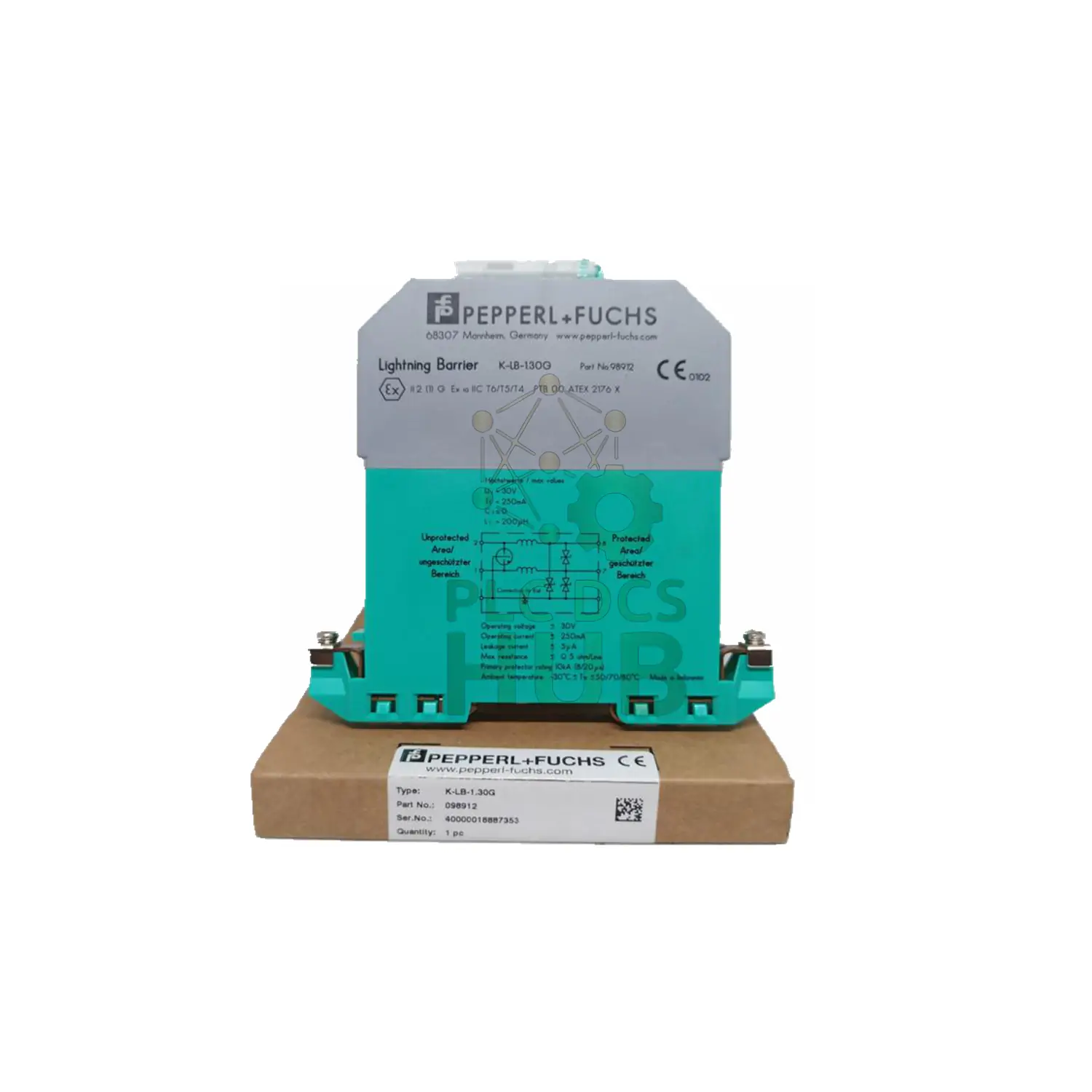

Pepperl+Fuchs K-LB-1.30G – Premium Single-Channel Surge Protector for Industrial Safety

Essential Protection for Your Systems

The K-LB-1.30G safeguards your equipment from dangerous power surges. This smart 1-channel barrier mounts easily on DIN rails and works with both safe and hazardous 30V setups. It automatically resets after surges, keeping your systems running smoothly.

Technical Highlights

• Brand: Pepperl+Fuchs
• Model: K-LB-1.30G (Single Channel Version)
• Protection: 2 signal lines
• Voltage Range: Up to 30V DC
• Current Rating: 250mA continuous
• Surge Capacity: 20kA total (8/20µs wave)
• Response Speed: <30ms reaction time
• Temperature Range: -30°C to +80°C
• Connection: Screw terminals (2.5mm² max)
• Dimensions: 12.5×115×116mm

Easy Installation Guide

1. Mount on standard 35mm DIN rail
2. Connect protected side to terminals 7-8
3. Connect unprotected side to terminals 1-2
4. Ensure proper grounding

Expert Questions Answered

1. Can I use this in explosive areas?
   Yes, when installed correctly per Ex ia IIC standards.
2. What’s the difference between 1.30G and 2.30G models?
   The K-LB-1.30G protects 1 channel (2 wires) versus 2 channels.
3. How often does it need replacement?
   It’s maintenance-free with auto-reset functionality.
4. Will it affect my signal quality?
   No, insertion loss is minimal (≤0.05dB at 4kHz).
5. What certifications does it have?
   ATEX, IECEx, CSA, and meets EN 61643-21 standards.

Package & Support

Includes 1 surge barrier unit. Ships fast via FedEx/UPS/DHL. Backed by 12-month quality guarantee.
