Description
Overview

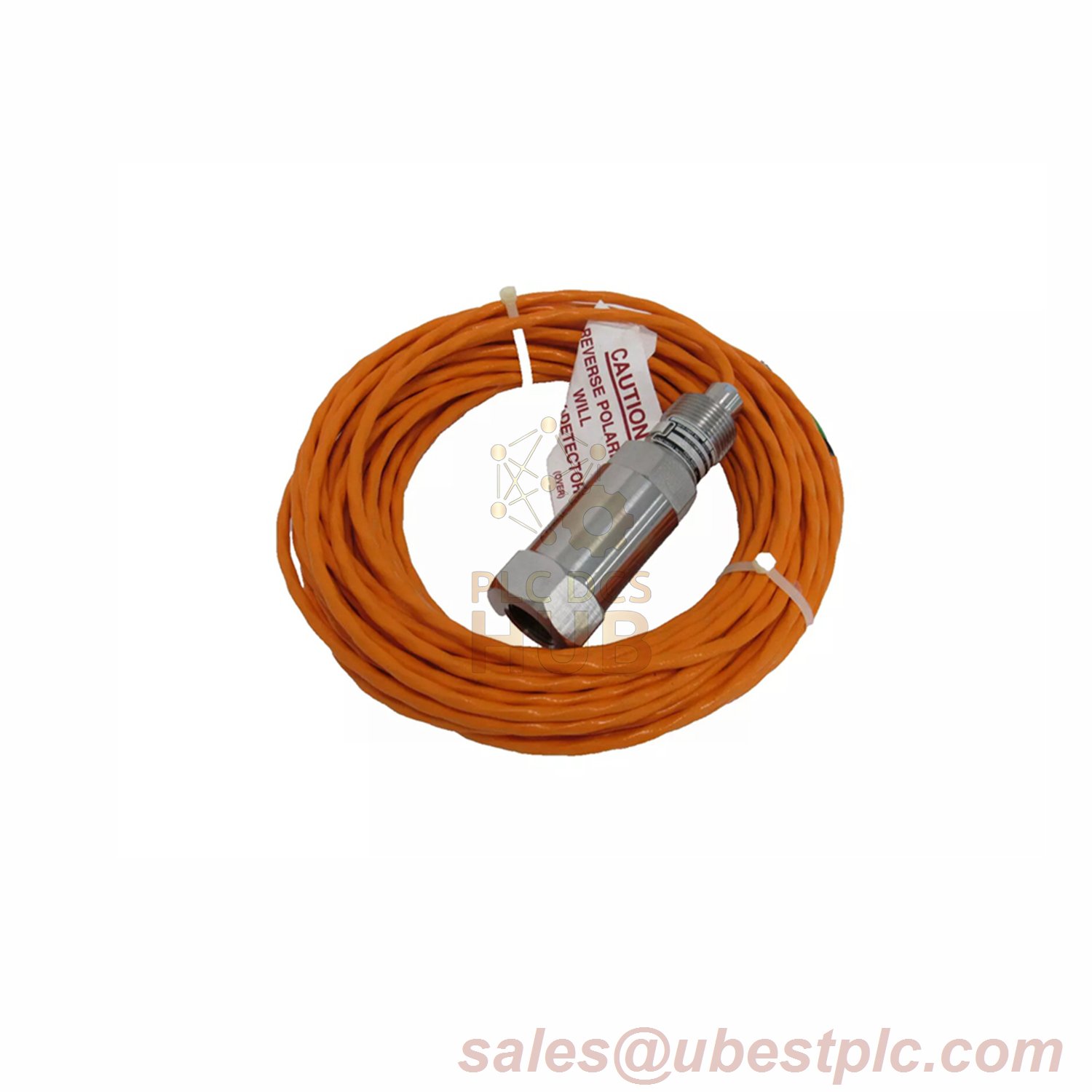

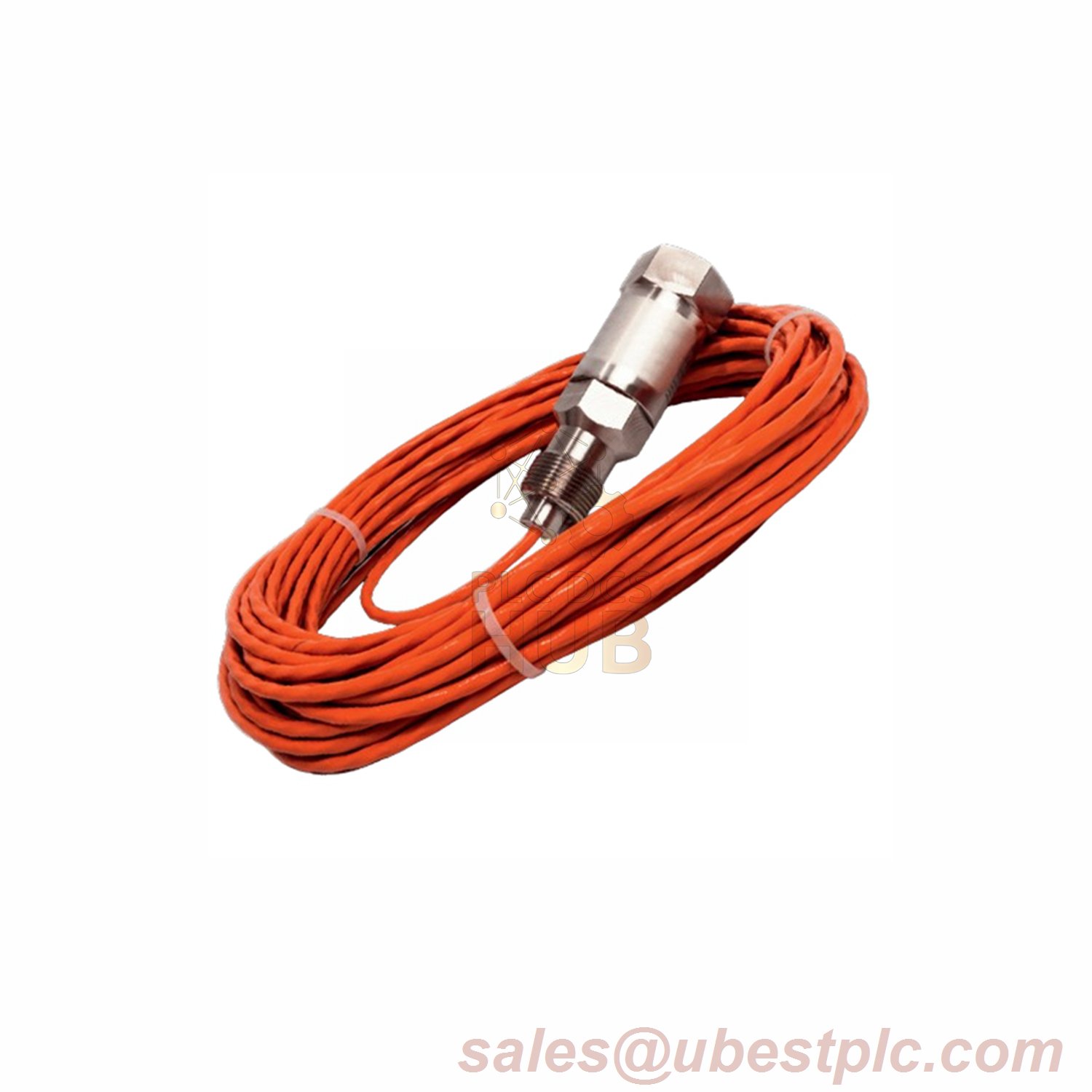

The Honeywell LG1093AA46 Flame Detector is a highly reliable and advanced detection solution designed for critical applications. With superior performance in detecting UV radiation, it provides an essential layer of safety in environments exposed to flames and fire risks. This detector is equipped with exceptional sensitivity, responding to flames in as little as 0.1 seconds, making it ideal for industries that demand fast and accurate flame detection.
Technical Data:
| Parameter | Details |
|---|---|
| Brand | Honeywell |
| Model | LG1093AA46 |
| UV Detection Range | 180-260 nm |
| Temperature Range | -40°C to 176°C |
| Flame Response Time | 0.1 seconds |
| Flame Loss Response Time | 0.2 seconds maximum |
| Operating Distance | Up to 330 meters (1000 feet) from sensor to amplifier |
| Amplifier Compatibility | EG1033AA (Transistor open collector output), EG1033AB & EG1033AC (Relay contacts – SPDT) |
| Voltage Compatibility | 28 Vdc, 20-35 Vdc, and 115 Vac |
| Mounting | 3/4 inch internal NPT |
| Sensor Type | Geiger Mueller-type phototube |
| Cable Type | Teflon shielded, 61 feet (12.8 meters) |
| Viewing Window Pressure Rating | 10 bar (150 psi) |
| Shipping Weight | 2 kg |
| Cross Reference | GE 261A1812P15 |
