MADLN05SG Panasonic MINAS A6S Servo Drive Controller

Description

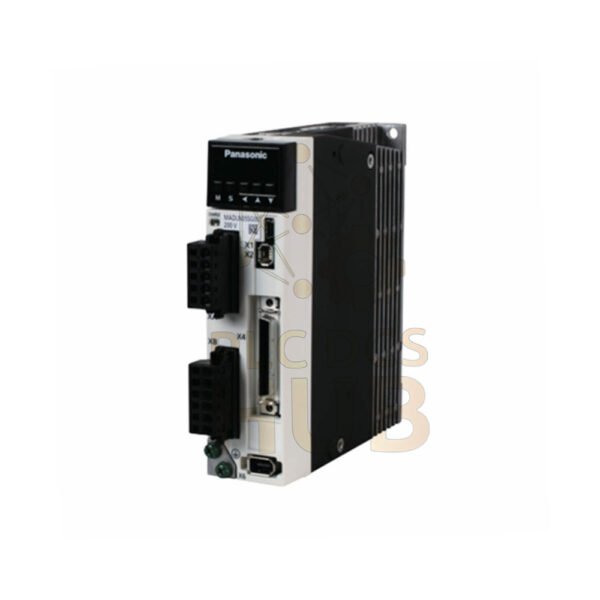

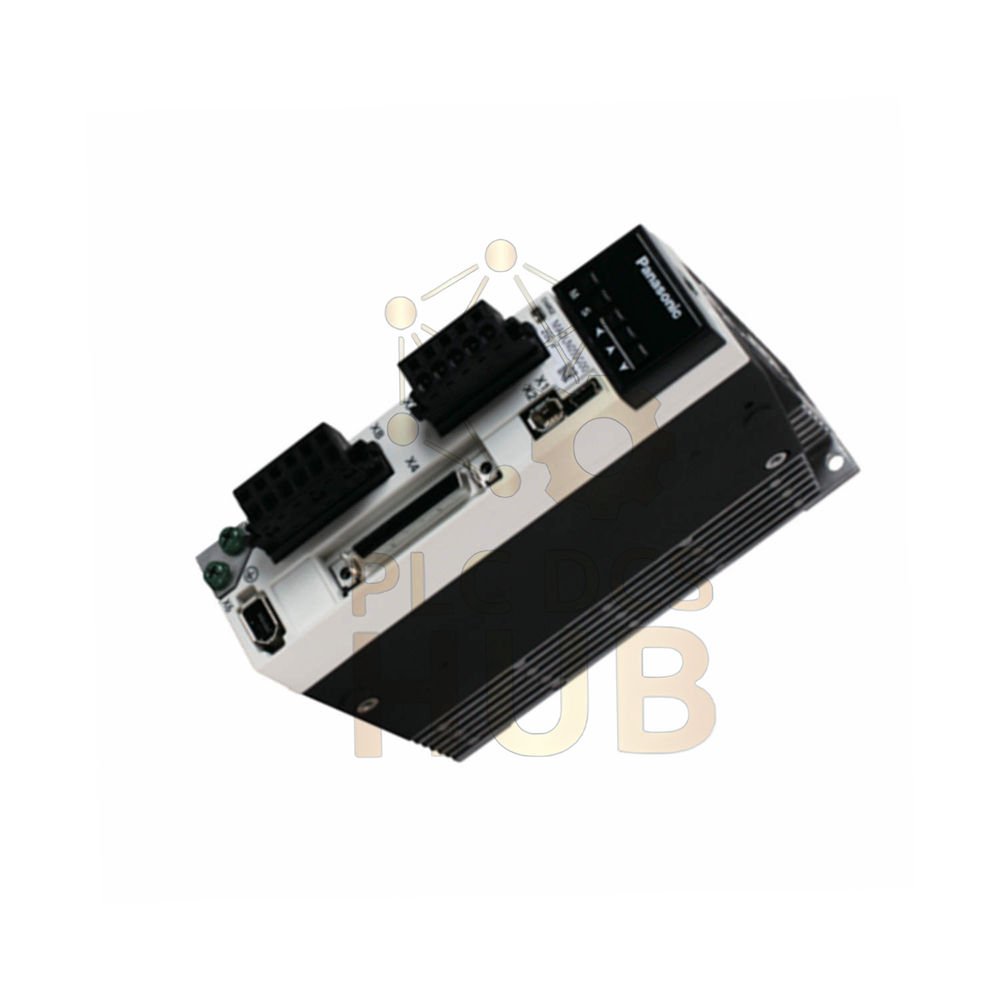

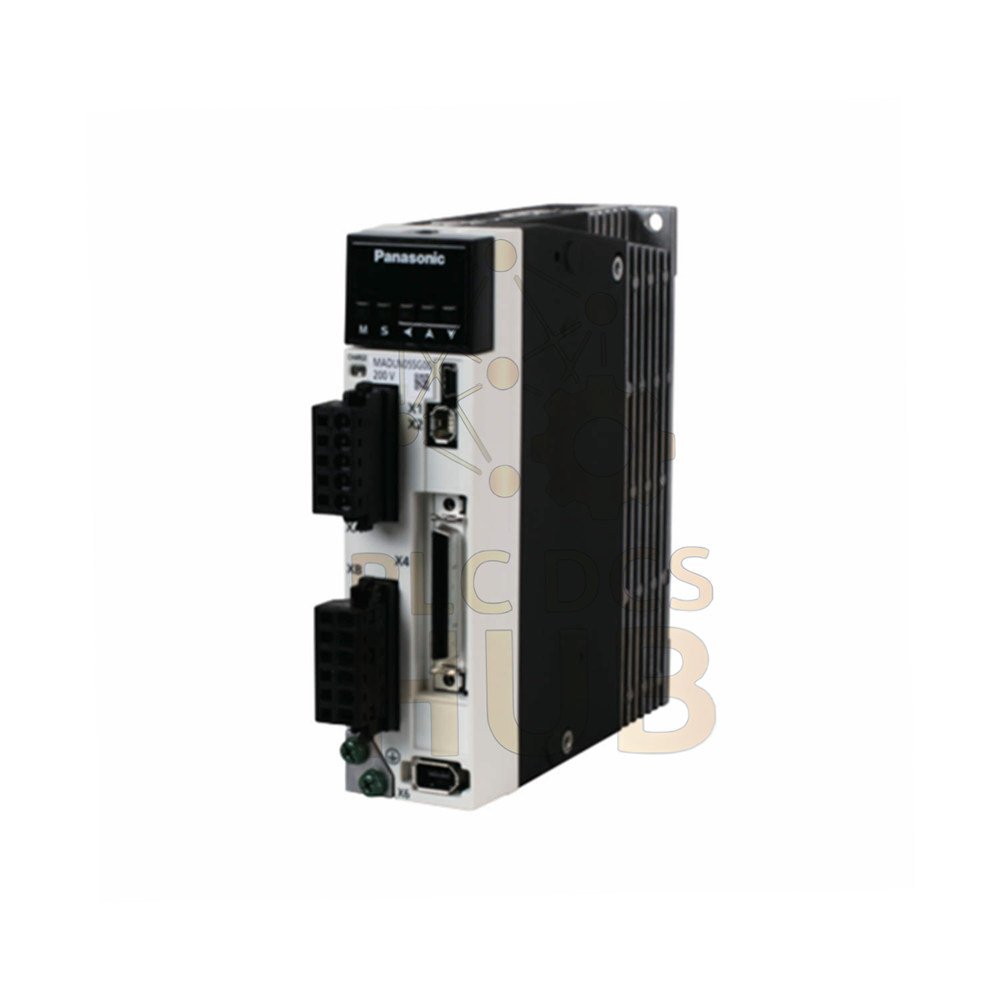

MADLN05SG Panasonic MINAS A6S Series Servo Drive Controller

MADLN05SG is a Panasonic servo drive from the MINAS A6S series.
It is built for precise motion control and stable machine performance.
The controller supports multiple communication interfaces and fast response control.
It is widely used in modern automation machines that require accurate positioning.

Product Overview

• Brand: Panasonic
• Model: MADLN05SG
• Series: MINAS A6S
• Type: General communication servo drive
• Weight: 0.8 kg
• Dimensions: 40 × 150 × 130 mm
• High reliability industrial motion controller

Communication Interfaces

• USB communication
• RS232 interface
• RS485 communication
• Modbus-RTU protocol
• Flexible system integration

Control Performance

• Position control mode
• Response frequency up to 3.2 kHz
• Smooth acceleration and deceleration
• Stable high speed motion control

Encoder Feedback System

• 23-bit absolute encoder support
• Resolution: 8,388,608 pulses
• High precision feedback
• Accurate positioning control

Power Specifications

• Main circuit input: 200-240 V AC
• Single-phase or three-phase supported
• Control circuit input: 200-240 V AC single phase
• Voltage tolerance: +10% to −15%

I/O Configuration

• 10 digital inputs
• 6 digital outputs
• 2 analog outputs
• Pulse signal inputs: 2
• Pulse signal outputs: 4

Energy Handling

• External regenerative resistor supported
• No internal braking resistor
• Suitable for frequent start and stop machines
• Improves braking stability

Compatible Equipment

• Panasonic MINAS A6 servo motors
• Industrial robot systems
• CNC machining centers
• Automated assembly machines
• Precision motion platforms

Typical Applications

• Industrial automation production lines
• Material handling systems
• Automated warehouses
• Precision manufacturing equipment
• Medical and laboratory automation

Diagnostic Capability

• Real-time system monitoring
• Servo alarm and fault detection
• Load condition monitoring
• Communication error detection
• Helps improve maintenance efficiency

Expert Review

• This drive is designed for modern automation systems.
• The 3.2 kHz response speed gives fast motion control.
• Multiple communication ports simplify integration.
• High resolution encoder improves positioning accuracy.
• Suitable for machines that require precise movement.

Warranty and Shipping

• 12-month warranty
• Professional industrial quality testing
• 24-48 hour fast shipment
• Safe export packaging
• Worldwide shipping via FedEx, UPS, DHL

Professional FAQ

• How do I choose the correct servo drive?
• Check the motor voltage, rated power, and encoder type.
  The drive must match the motor specifications.
• Can this drive work with PLC systems?
• Yes. RS485 and Modbus communication allow easy PLC integration.
• Why is an external regenerative resistor used?
• Frequent braking produces extra energy.
  The resistor absorbs this energy and protects the drive.
• What advantage does a 23-bit encoder provide?
• It offers very high position resolution.
  This improves motion accuracy in precision machines.
• What should be checked before installation?
• Confirm wiring, voltage supply, cooling space, and motor compatibility.

Purchase Consultation

• Contact: +86 158 8020 0923
