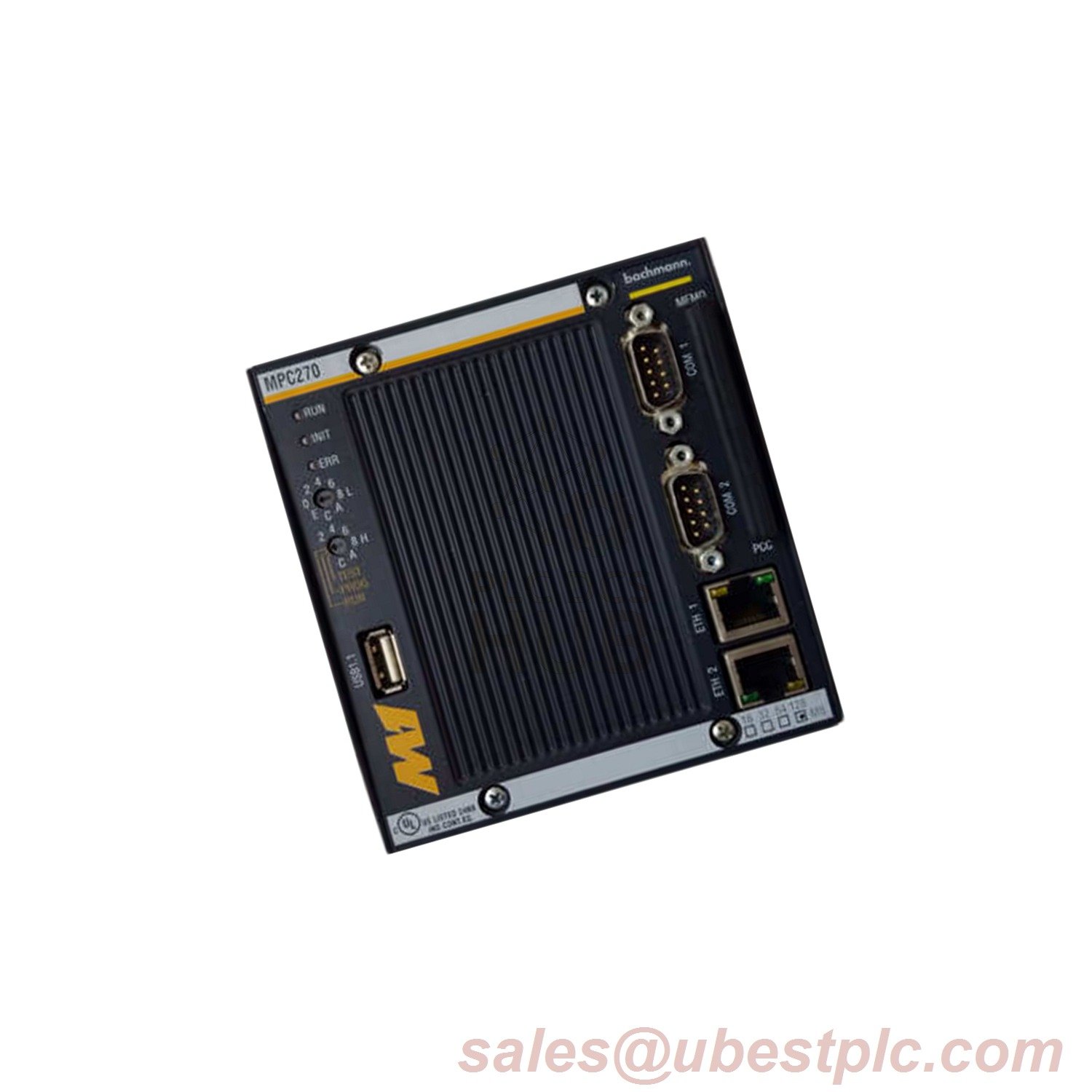

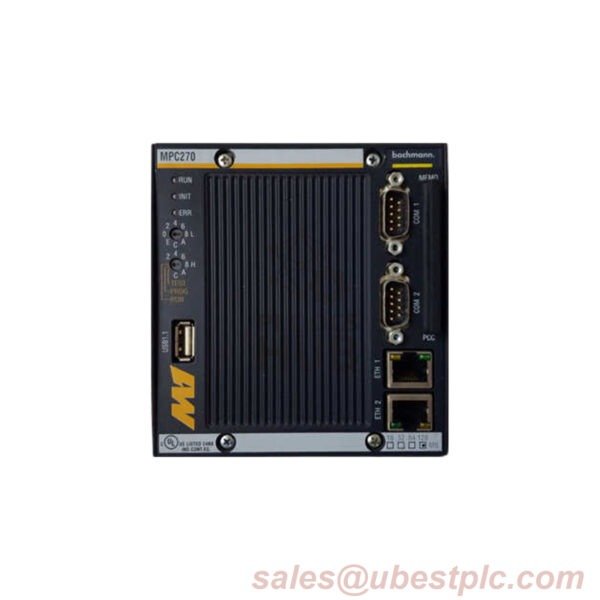

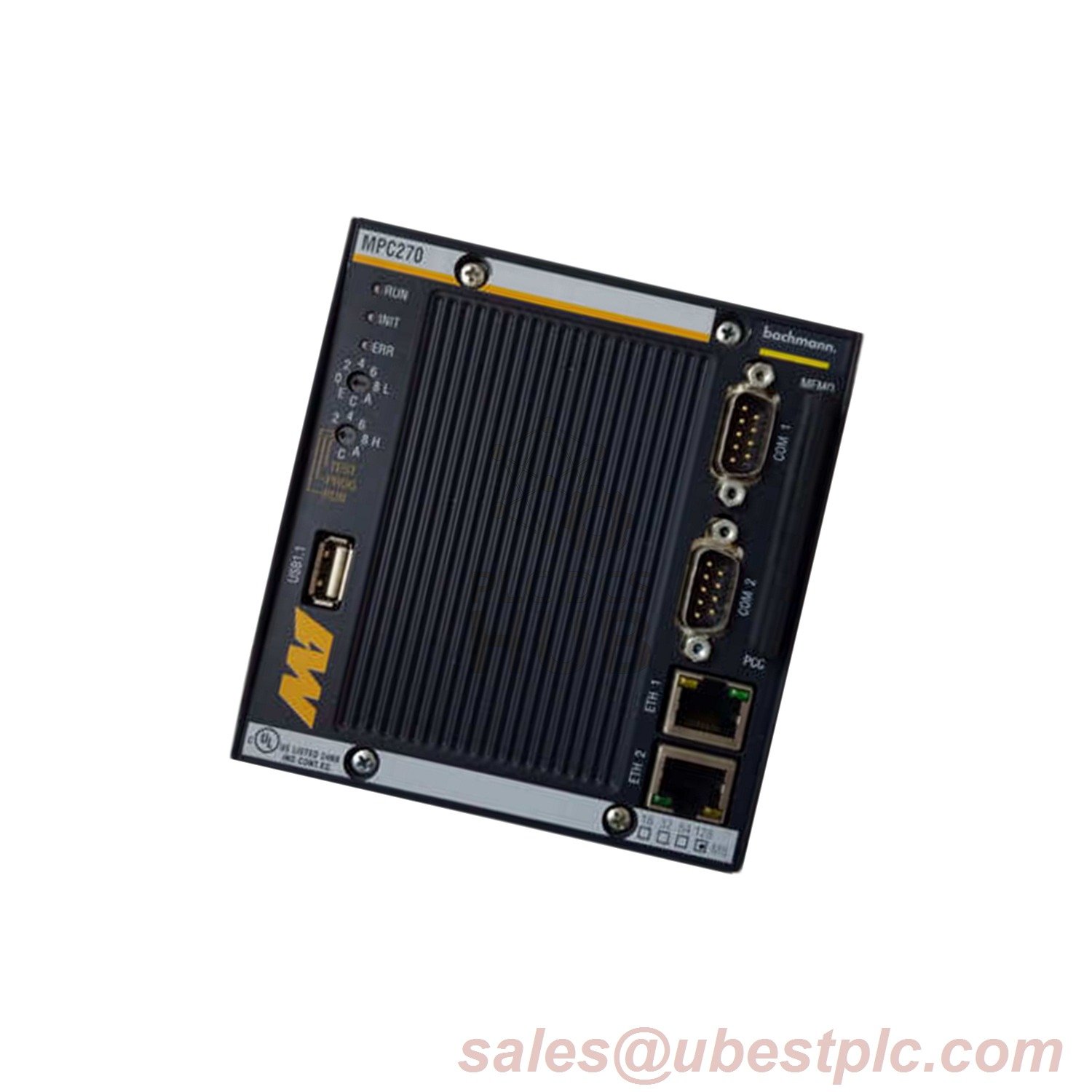

MPC270 Bachmann CPU Module MPC 270 Series

Description

Overview

The MPC270 Bachmann CPU Module from the MPC 270 Series is engineered for high-performance industrial automation and control systems. With its 32-bit RISC CPU and robust memory configuration, it ensures efficient processing and reliable communication across various industrial applications. This module is designed to meet the demands of demanding environments with wide operating temperature ranges and compliance with essential industrial certifications.

MPC270 Technical Data

• Processor:
  • Type: 32-bit RISC CPU
  • Clock Speed: 700 MHz
• Memory:
  • SRAM: 512 kB
  • DRAM: 128 MB
  • Flash Memory: 64 MB
• Interfaces:
  • Ethernet Ports: 2 x 10/100 Mbps for network communication
  • USB Ports: 1 x USB 2.0 for peripheral connectivity
  • Serial Ports: 1 x RS232 and 1 x RS485 for serial communication
  • CAN Interface: 2 x CAN ports for industrial communication
• Power Supply:
  • Voltage: 24 V DC
  • Power Consumption: < 10 W
• Operating System Compatibility:
  • Supports various real-time operating systems compatible with the M1 system
• Environmental Specifications:
  • Operating Temperature: -25°C to +60°C
  • Storage Temperature: -40°C to +85°C
  • Humidity: 5% to 95% non-condensing
• Physical Dimensions:
  • Size: 11 cm x 5.5 cm x 12 cm
  • Weight: 0.66 kg
• Certifications & Standards:
  • CE, UL, ATEX certifications ensuring safety and reliability
