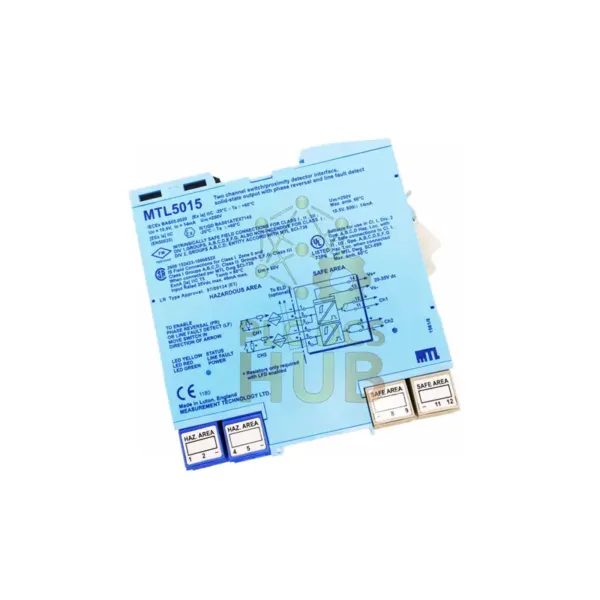

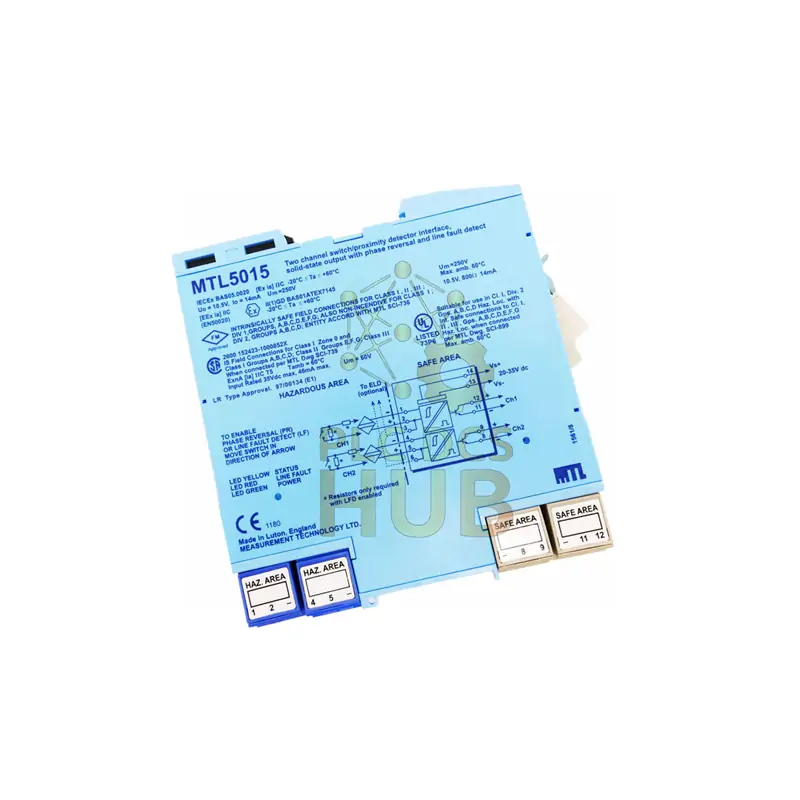

MTL5015 Dual-Channel Safety Interface: Reliable Hazardous Area Control
Dual-Channel Protection
The MTL5015 safely controls two outputs from switches in explosive areas. Each channel has independent fault detection and phase control. Ideal for critical safety systems.
Why Choose MTL5015?
- Dual NAMUR inputs – works with standard sensors
- Independent fault detection – monitors both channels
- Fast 5kHz switching – quick response time
- Flexible configuration – reversible outputs
- Clear status lights – 5 LED indicators
Technical Specifications
| Model | MTL5015 Dual Safety Interface |
| Channels | 2 independent channels |
| Input Type | NAMUR/DIN 19234 |
| Output Current | 50mA per channel |
| Switching Speed | DC to 5kHz |
| Power Range | 20-35V DC |
Easy Installation
Channel 1: Terminals 1-2 (input), 10-12 (output)
Channel 2: Terminals 4-5 (input), 8-9 (output)
Power: Terminals 13-14
Safety Certified
Approved for:
• Zone 0, IIC, T6 hazardous areas
• Division 1, Group A locations
Visual Indicators
Green: Power ON
Yellow (2): Channel status
Red (2): Fault detection
Common Questions
Q: How many sensors can connect?
A: Two independent NAMUR sensors – one per channel.
Q: What faults does it detect?
A: Open circuits (below 50µA) and short circuits (below 100Ω).
Q: Can channels work differently?
A: Yes, each channel has separate settings.
Q: What’s the maximum load?
A: 50mA per output channel.
Q: How fast does it respond?
A: Up to 5,000 operations per second.
Package Contents
• MTL5015 interface unit
• Installation manual
• Safety certificates
Your Guarantee
12-month performance warranty
Fast worldwide shipping via FedEx, UPS, DHL
