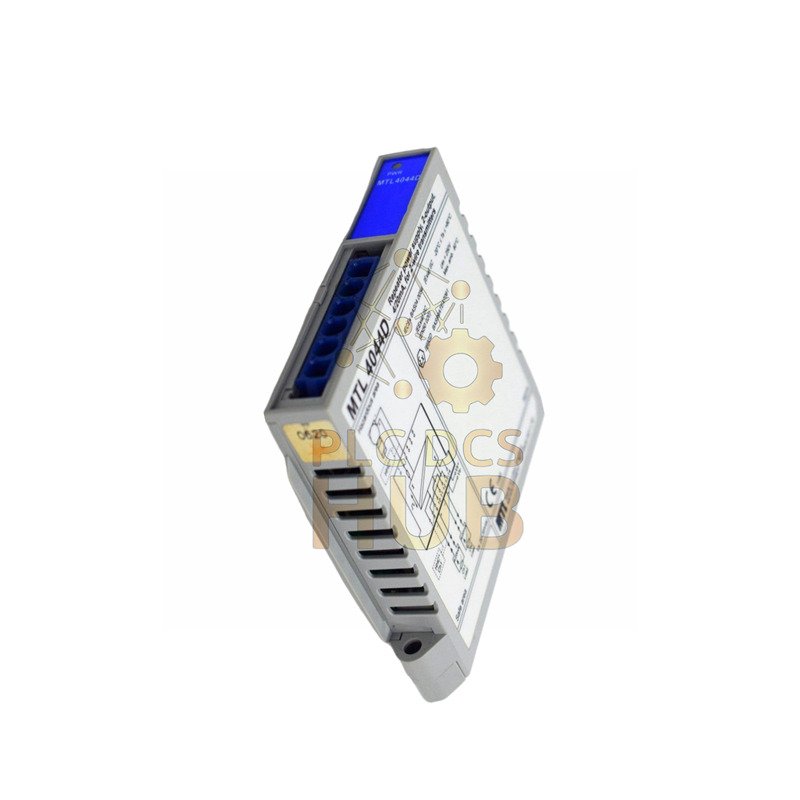

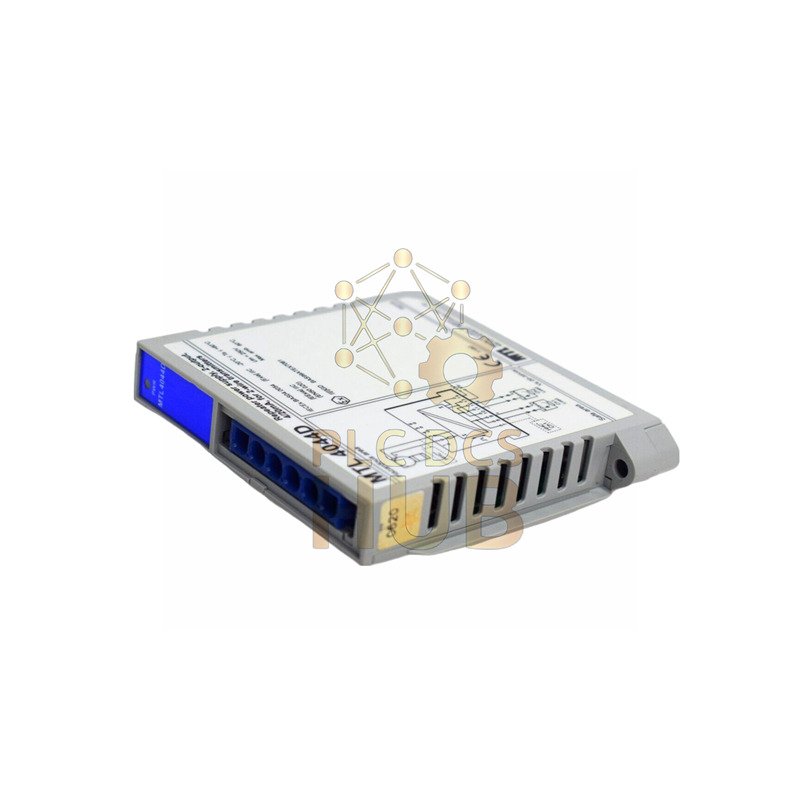

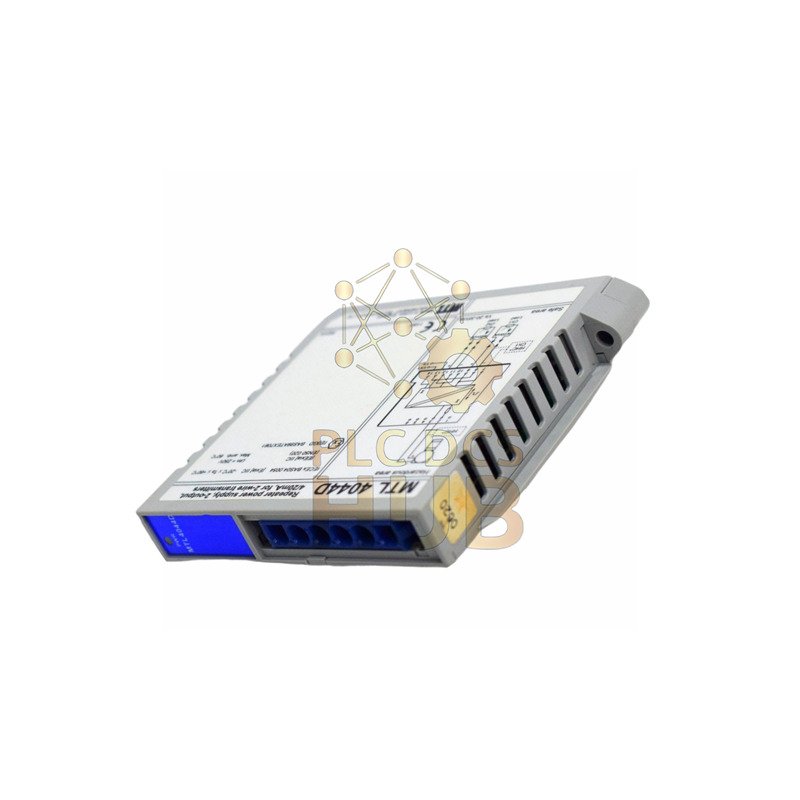

MTL4044D Isolator: Power & Isolate Smart Transmitters
The MTL4044D provides power for your 2-wire transmitters in hazardous areas. It sends the signal to two safe-area devices. It works with both standard and smart transmitters, allowing digital communication on the first output.
Technical Specifications
Brand & Model: MTL MTL4044D Transmitter Isolator
Input Signal: 0.5 to 22mA (from 2-wire transmitter)
Output 1: 4-20mA with digital communication
Output 2: 4-20mA analog only
Transmitter Power: 15V minimum at 20mA
Load Capacity: Up to 300Ω
Accuracy: Better than 20μA
Response Time: < 20ms
Digital Bandwidth: DC to 10kHz
Power Supply: 20-30V DC
Power Consumption: 95mA at 24V
Isolation: 250V AC
Operating Temperature: -20°C to +70°C
Easy To Use
Connect your 2-wire transmitter to the input. Connect your controllers to the two outputs. The MTL4044D provides power and sends isolated signals.
Frequently Asked Questions
Q1: What is a smart transmitter?
A1: It is a transmitter that can send both 4-20mA analog signals and digital data for setup and diagnostics.
Q2: Can both outputs be used for digital communication?
A2: No, only Output 1 supports digital communication. Output 2 is for analog signals only.
Q3: What types of transmitters can it power?
A3: It works with pressure, temperature, level, and any other 2-wire 4-20mA transmitters.
Q4: How much voltage does it provide to the transmitter?
A4: It provides a minimum of 15V at 20mA to power the transmitter properly.
Q5: What is the advantage of two outputs?
A5: You can send the same signal to two different devices, like a controller and a recorder.
