MTL4546 HART Valve Interface | Bi-directional Communication

Description

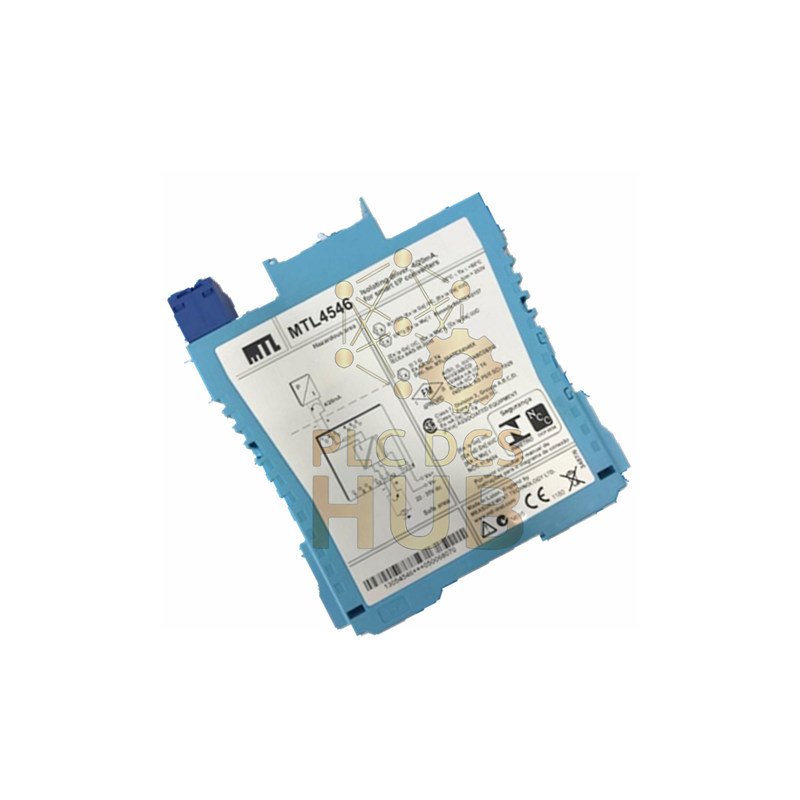

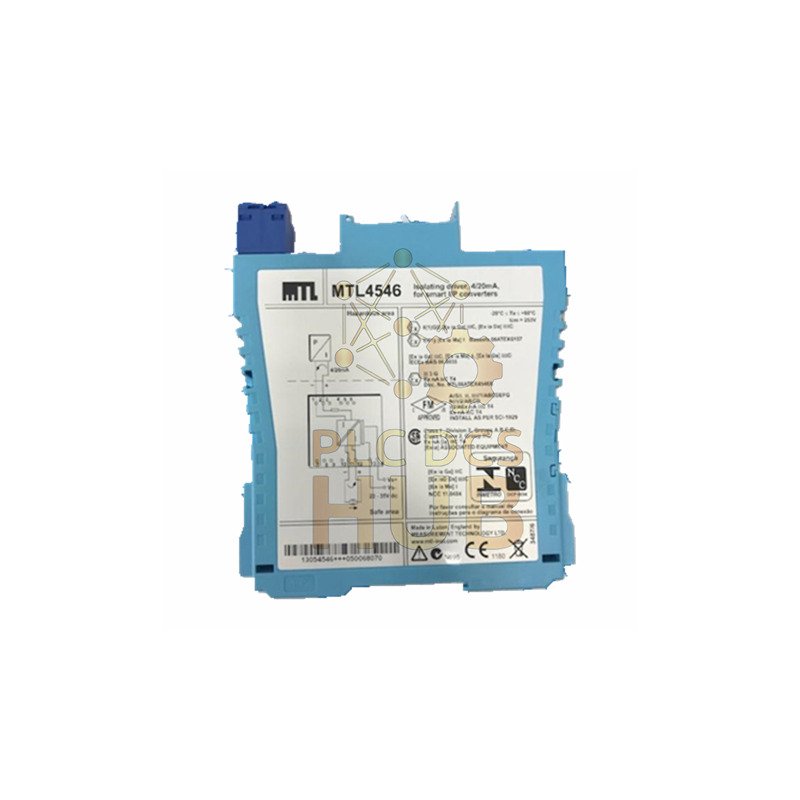

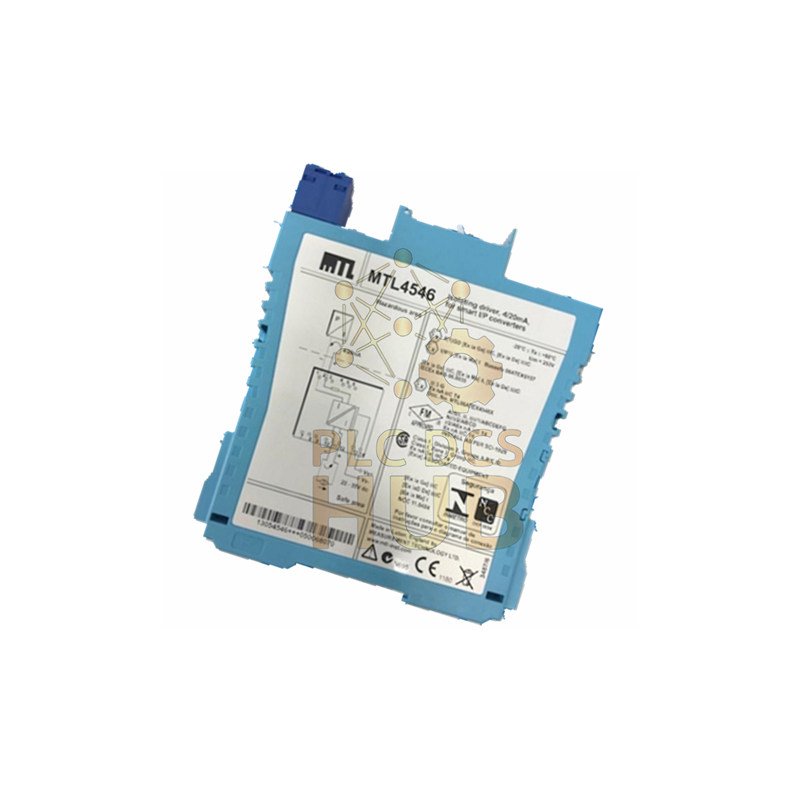

MTL4546: HART Valve Controller Interface

The MTL4546 connects your safe-area controller to HART valve positioners and I/P converters in hazardous locations. It drives loads up to 800Ω while supporting bi-directional HART communication. The module provides open and short circuit detection for field wiring safety.

Technical Specifications

Brand: MTL
Model: 4546
Signal Range: 4-20mA
HART Bandwidth: 500Hz-10kHz
Max Load Resistance: 800Ω (16V at 20mA)
Min Load Resistance: 90Ω
Output Resistance: >1MΩ
Under Range: 1mA
Over Range: 24mA (load ≤520Ω)
Accuracy: Better than 20μA at 20°C
Temperature Drift: <1.0μA/°C
Response Time: 100ms to within 200μA
Ripple: <40μA peak-to-peak
Normal Operation: <6.0V
Open-circuit Detection: <0.9mA
Short-circuit Detection: <0.9mA
Power Consumption: 35mA at 24V
Power Dissipation: 0.8W at 24V
Hazardous Rating: Zone 0, IIC, T4-T6 / Div 1, Group A
Safety Parameters: Uo=28V, Io=93mA, Po=651mW
LED Indicator: Green power light
Communication: HART protocol
Operating Temperature: -20°C to +60°C
Termination: Screw terminals

Package Contents

1 x MTL4546 interface module. Fast worldwide shipping via FedEx, UPS, or DHL.

Warranty Coverage

12-month warranty against defects. Reliable performance assurance.

Common Questions

• What types of valves does it work with?
  It works with HART-enabled valve positioners and current-to-pressure converters.
• Does it detect both open and short circuits?
  Yes, the MTL4546 provides both open-circuit and short-circuit detection.
• What is the maximum cable length supported?
  It can drive loads up to 800Ω, supporting significant cable runs.
• Can it handle signals below 4mA or above 20mA?
  Yes, it supports under-range (1mA) and over-range (24mA) signals.
• Is special software needed for HART communication?
  No, it transparently passes HART signals between controller and valve positioner.
