Description

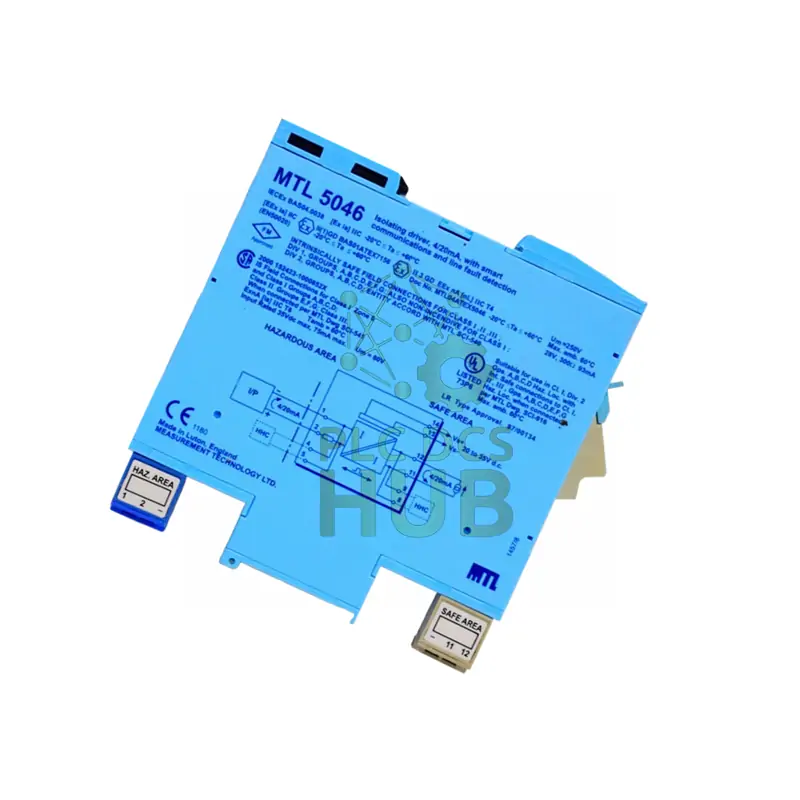

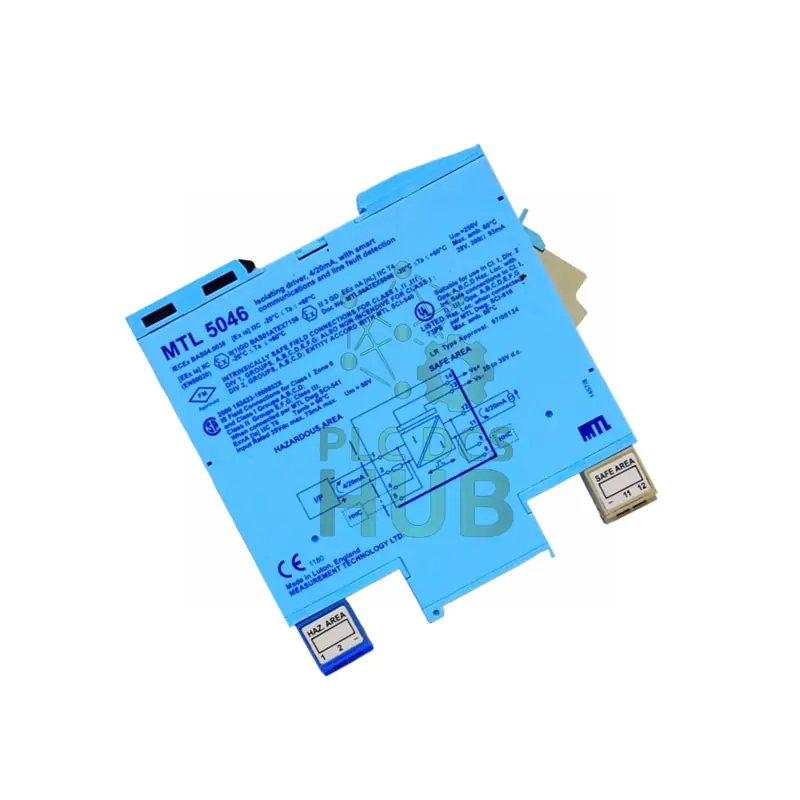

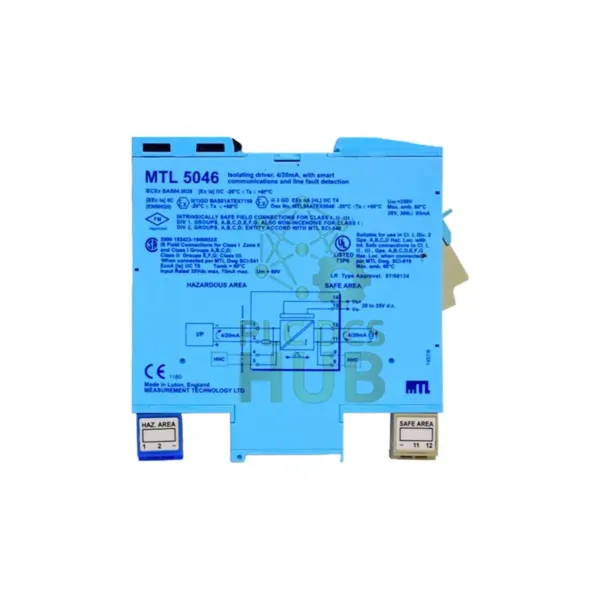

MTL5046: Explosion-Proof Signal Commander

Control hazardous area devices from safety! The MTL5046 takes 4-20mA signals and drives dangerous-zone loads. Features digital talk-back and instant fault alerts. Zone 0 certified.

⚡ Core Advantages

• Drives devices in explosive zones
• Two-way digital communication
• Instant line-fault detection
• Lightning 100μs response

???? Precision Specs

• Input Range: 1-24mA (safe area)
• Output Range: 4-20mA (100-800Ω load)
• Accuracy: ±10μA at 20°C
• Temp Stability: <0.5μA/°C drift
• Ripple: <40μA peak-peak
• Digital Bandwidth: 500Hz-10kHz
• Power: 20-35V DC (50-75mA)
• Isolation: 1500V AC tested
• Fault Detection: >100kΩ impedance shift

???? Connection Map

• 1,2: Hazard Output (-/+)
• 4,5 / 8,9: Handheld Comms (-/+)
• 11,12: Safe Input (-/+)
• 13,14: Power (-/+)

????️ Your Safety Net

• 12-month no-questions warranty
• Global express shipping: Fedex, UPS, DHL
• Green power indicator LED

❓ Expert Answers

Q1: Can MTL5046 talk to handheld devices?
A: Yes! Use terminals 4/5 or 8/9 for communicators.

Q2: How fast does fault detection work?
A: Instantly! Detects line faults in under 1ms.

Q3: What’s the minimum safe load?
A: 100Ω minimum in hazardous areas.

Q4: How precise is the MTL5046?
A: Better than 10μA error at room temperature.

Q5: What connectors are required?
A: HAZ 4-6 and SAF 7-9 connectors.
