Description
Complete Ready-to-Mount Vibration Transducer System

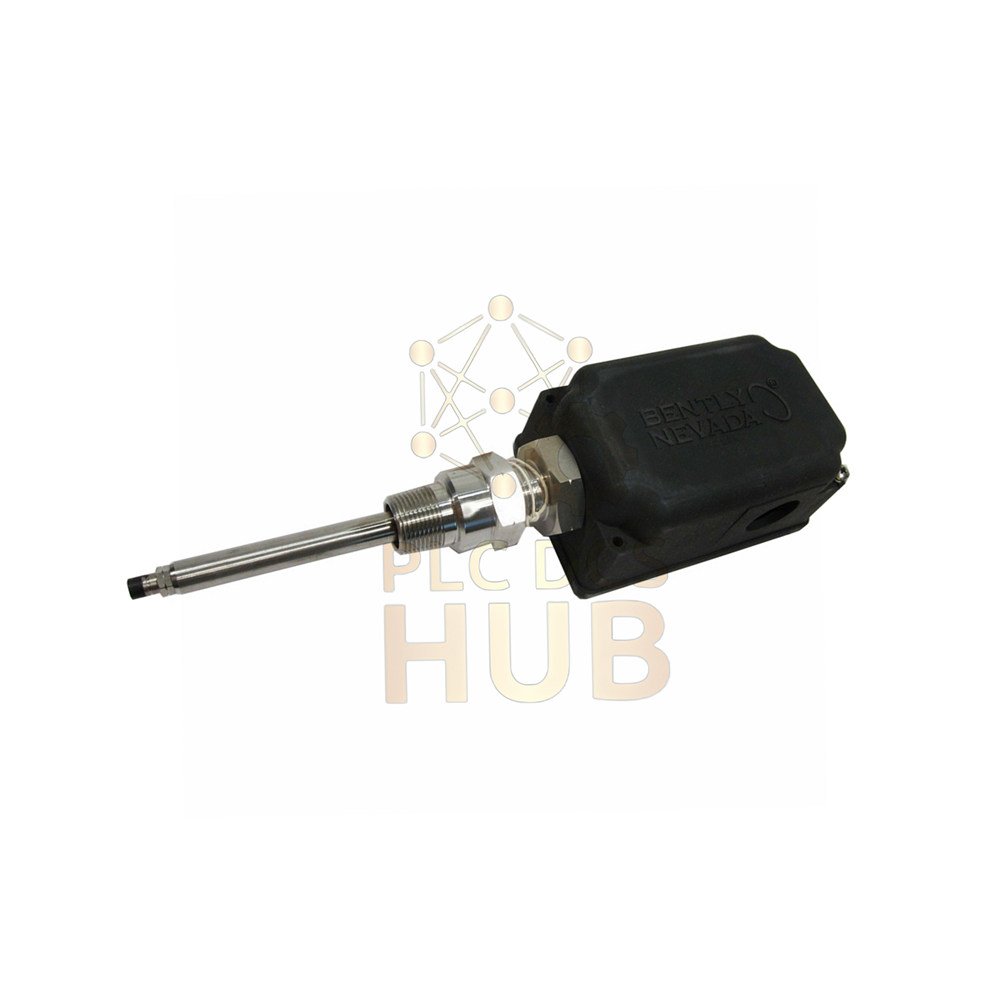

This is a genuine Bently Nevada PROXPAC XL Proximity Transducer system. The model is 330881-16-00-175-00-02. It is new, made in the USA. This is a fully integrated kit. It has a probe, cable, and protective housing. It is ready for easy installation on your machinery.
System Configuration & Build
- Brand: Bently Nevada
- Product Type: PROXPAC XL Proximity Transducer
- Complete Part Number: 330881-16-00-175-00-02
- 330881 – Base: PROXPAC XL Transducer System
- -16 – Probe: 3300 XL 8 mm (Standard)
- -00 – Standoff: No adapter
- -175 – Penetration: 175 mm sleeve
- -00 – Fittings: Two plugs & washers only
- -02 – Mount: 3/4-14 NPT thread
- Premium Construction
- Housing: UV-resistant PPS Plastic (IP66 Rated)
- Probe & Sleeve: 304 Stainless Steel, PPS Tip
- Isolation: Extra Soft Silicone for vibration damping.
- Cable: 1-meter, 75 Ω Triaxial with FEP.
- Weight: ~1.44 kg (3.2 lb)
- Performance Specifications
- Measurement Range: 2.0 mm (80 mils) linear
- Sensitivity: 7.87 V/mm ±5%
- Accuracy (Linearity): Better than ±0.025 mm
- Frequency Response: 0 to 10 kHz
- Power Supply: -17.5 to -26 VDC
- Min. Shaft Size: 50.8 mm (2.0 in) diameter
Installation & Application FAQs
System Advantages
- What is the main benefit of buying a PROXPAC XL system?It saves time. The probe, cable, and housing are pre-matched. You get a single, guaranteed-compatible unit for reliable performance.
- What does the “vibration isolation material” do?It is a soft silicone gasket. It reduces vibration transfer from the machine to the housing. This protects the electronics and improves signal stability.
Technical Setup
- What is the correct gap to set between the probe and shaft?Set the probe tip to 1.27 mm (50 mils) from the target shaft surface for optimal linear output.
- My shaft is only 1.5 inches in diameter. Can I use this?No. The minimum recommended shaft diameter for this system is 2.0 inches (50.8 mm). Using a smaller shaft will affect the measurement.
Purchasing & Support
- What is included with my purchase and how is it shipped?You receive the complete transducer kit in its factory box with a 12-month warranty. We ship securely via FedEx, UPS, or DHL with full tracking provided.
For technical drawings or torque specifications, contact our support team on WhatsApp: +86 158 8020 0923.
