Overview

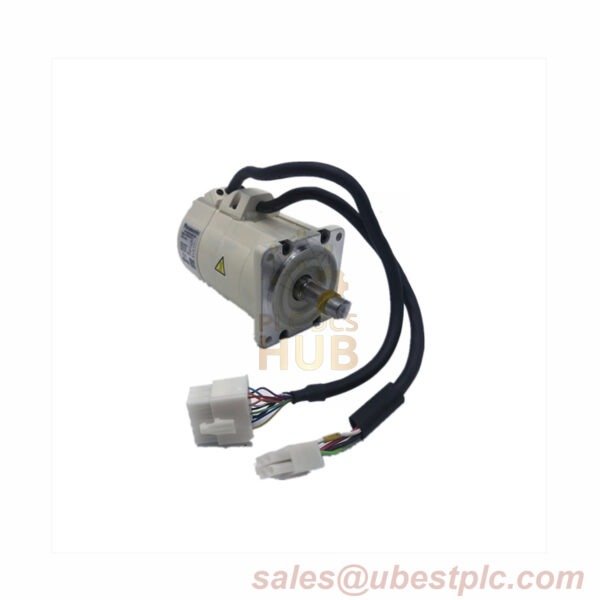

The Panasonic MINAS A6 MSMF082L1U2M is a low-inertia, high-performance AC servo motor designed for a wide range of industrial automation applications. With its durable construction and advanced encoder feedback system, it provides precise and reliable motion control. The motor features an IP65 protection class, ensuring protection against dust and water ingress (excluding rotating parts), making it ideal for demanding environments.
Technical Specifications
- Part Number: MSMF082L1U2M
- Brand: Panasonic
- Family Name: MINAS A6
- Series: MSMF Series
- Rated Output: 750 W
- Rated Voltage: 200 V
- Rated Current: 4.1 A (rms)
- Rated Torque: 2.39 N·m
- Continuous Stall Torque: 2.39 N·m
- Momentary Max. Peak Torque: 7.16 N·m
- Rated Rotational Speed: 3000 rpm
- Max. Rotational Speed: 6000 rpm
- Max Current (O-P): 17.4 A
- Mass: 2.3 kg
- Moment of Inertia (Rotor): 0.96 x 10⁻⁴ kg·m²
- Recommended Moment of Inertia Ratio: 20 times or less
- Oil Seal: Included for enhanced durability
- Regenerative Brake Frequency: No limit (without option), External regenerative resistor option: DV0P4283
- Motor Lead-out Configuration: Lead wire
- Motor Encoder Connector: Lead wire
- Flange Dimension: 80 mm square
- Radial Load (P-direction, During Assembly): 686 N
- Thrust Load (A-direction, During Assembly): 294 N
- Thrust Load (B-direction, During Assembly): 392 N
- Radial Load (P-direction, During Operation): 392 N
- Thrust Load (A/B-direction, During Operation): 147 N
