Phoenix Contact QUINT-PS-100-240AC/24DC/10 Power Supply

Description

Product Introduction

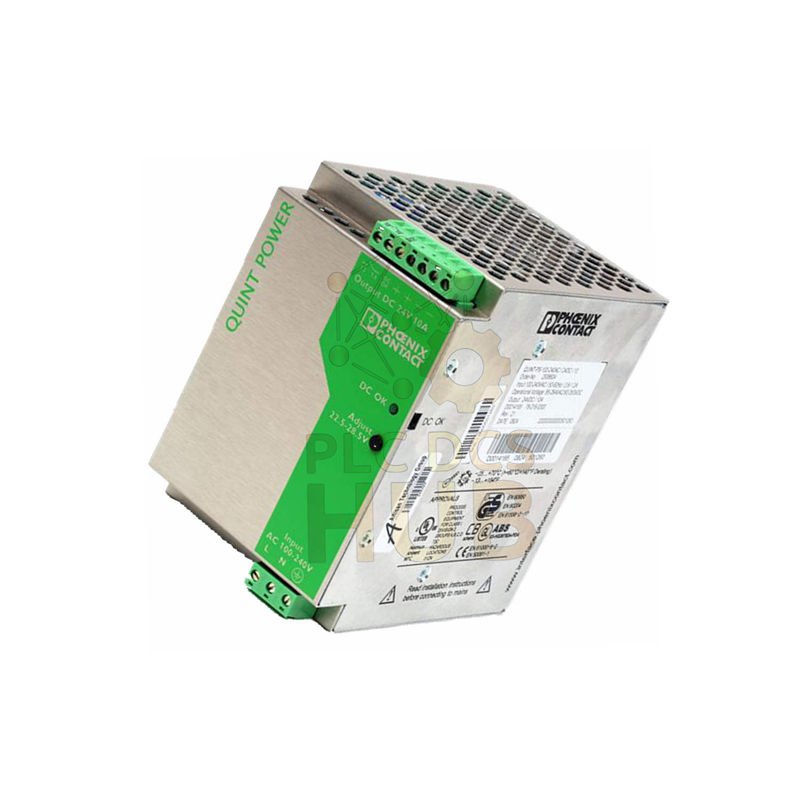

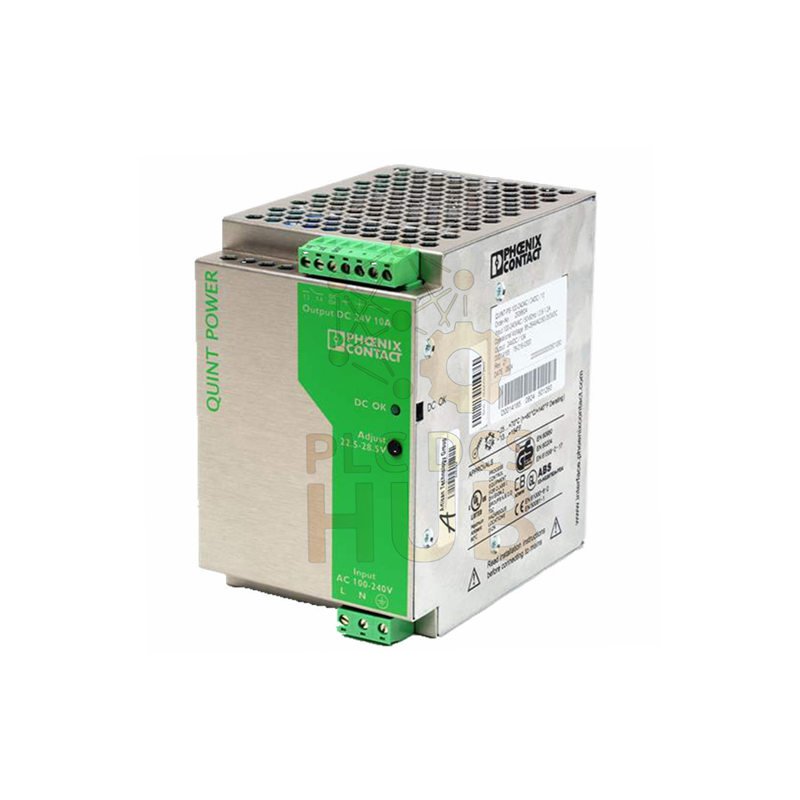

• Phoenix Contact QUINT-PS-100-240AC/24DC/10 is a QUINT Series power supply for control panels and automation systems.
• Part Number 2938604 ensures fast identification and replacement.
• It delivers 24 V DC with stable output for PLCs, I/O modules, motors, and sensors.
• Designed for industrial environments that need reliable DC conversion.

Structured Technical Data

• • Electrical Performance
  • → Nominal Input: 100 to 240 V AC
  • → Input Range: 85 to 264 V AC, 90 to 350 V DC
  • → Frequency: 45 to 65 Hz
  • → Output Voltage: 24 V DC ±1%
  • → Output Current: 10 A (to 60°C)
  • → Boost Mode: 15 A surge handling
  • → Efficiency: above 91% for energy savings
  • → Output Ripple: low noise for signal systems
• • Mechanical & Mounting
  • → Width: 85 mm
  • → Height: 130 mm
  • → Depth: 125 mm
  • → Net Weight: 1.3 kg
  • → DIN Rail: NS 35, EN 60715
  • → Alternate mount sizes included for tight cabinets
• • Environmental & Protection
  • → IP20 enclosure for cabinet use
  • → Operating: -25 to +70°C (derate after 60°C)
  • → Storage: -40 to +85°C
  • → Humidity: 95% non-condensing
  • → Pollution Degree: Class 2
• • Wiring & Connections
  • → Pluggable screw terminal interface
  • → Solid conductor: 0.2 to 2.5 mm²
  • → Flexible conductor: 0.2 to 2.5 mm²
  • → AWG: 24 to 12 range
  • → Strip Length: 7 mm

Extra Performance Highlights

• Fast power recovery after line dips
• Clean output for sensitive automation loads
• Thermal design supports continuous operation
• Internal protection reduces failure risk
• Stable feed for PLC and communication hardware

Warranty & Shipping

• Warranty period: 12 months coverage
• Shipping options: FedEx, UPS, DHL worldwide
• Package includes protective export packing

Application Scope

• PLC cabinets and motion controllers
• Machine automation and assembly lines
• Process skids and field panel upgrades
• Power backup channels for instrumentation
• Switchboard DC power distribution

Professional FAQ

• Can it power multiple loads?
  It supports parallel small loads within current limits.
• Is surge handling automatic?
  Boost mode activates without user settings.
• What raises temperature quickly?
  Dense wiring or blocked airflow near the casing.
• Should I ground both ends of shielded cable?
  Ground one end to reduce loop noise.
• What causes output drift?
  Loose terminals or high cabinet temperature over time.
