Description
Product Overview
- Industrial-grade 24VDC power supply for reliable automation.
- High efficiency over 92.5% saves energy and reduces heat.
- Wide input range works globally from 85 to 264V AC.
- Compact and robust design for harsh industrial environments.
Technical Specifications
- Brand & Model:

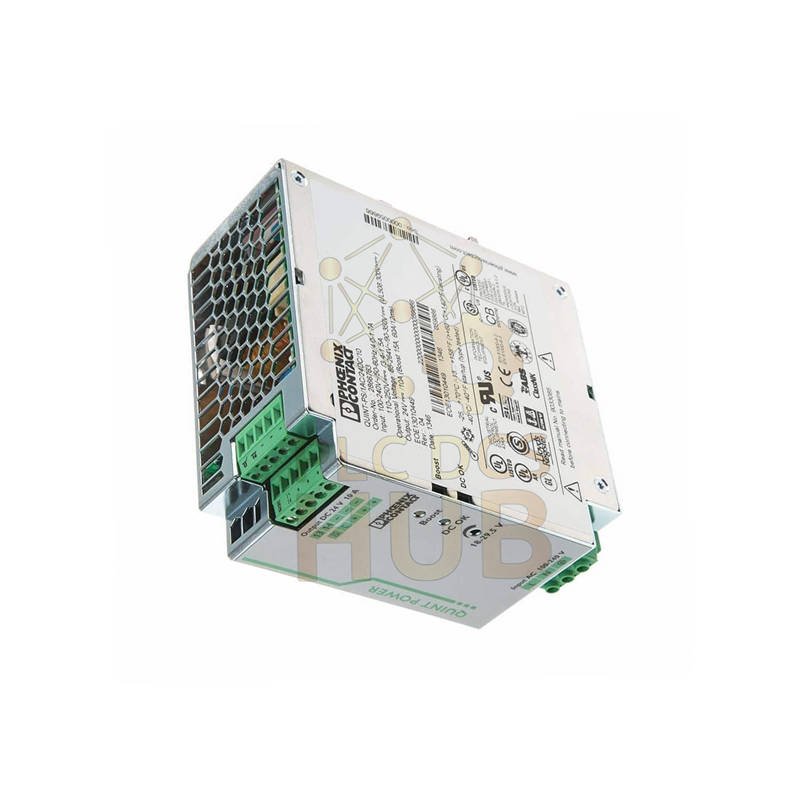

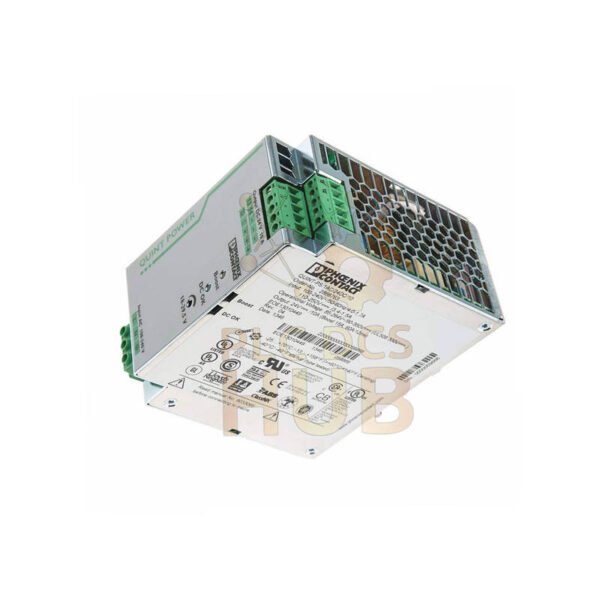

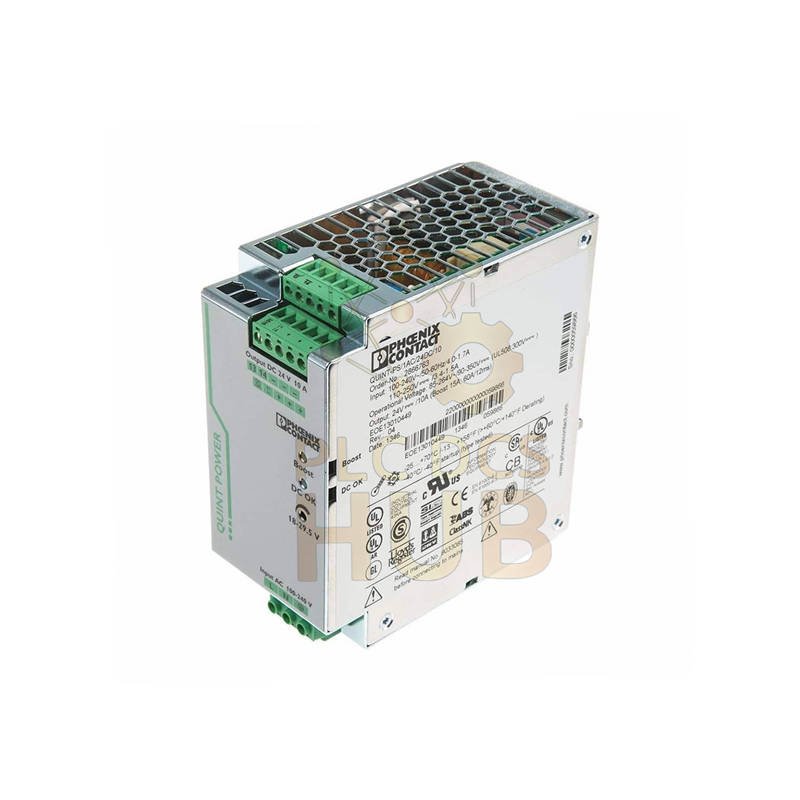

- Phoenix Contact
- QUINT-PS/1AC/24DC/10
- Core Electrical Data:
- Input Voltage: 85-264V AC / 90-350V DC
- Output Voltage: 24V DC ±1%
- Nominal Current: 10A continuous
- Peak Current: 15A POWER BOOST
- Total Power: 240W maximum
- Performance Characteristics:
- Ripple & Noise: <50mVpp
- Response Time: <0.15 seconds
- Voltage Adjustment: 18-29.5V DC range
- Environmental Ratings:
- Operating Temperature: -25°C to +70°C
- Storage Temperature: -40°C to +85°C
- Protection Class: IP20
- Humidity Resistance: Up to 95% non-condensing
- Altitude Rating: 5000 meters maximum
- Vibration/Shock: Industrial-grade endurance
- Reliability & Safety:
- MTBF: >940,000 hours at 25°C
- Isolation Voltage: 4kV AC input/output
- Protections: Surge, overload, short circuit
- Certifications: UL 508, CE, EN standards
Installation Instructions
- Mount on standard 35mm DIN rail horizontally
- Keep minimum clearances for proper cooling
- Use appropriate wire size (0.2-2.5mm² or AWG 16-12)
- Ensure secure connections with pluggable terminals
Setup & Maintenance
- Quick voltage adjustment via potentiometer
- LED indicator shows operational status
- No regular maintenance required
- Easy troubleshooting with clear fault signals
Compatibility Information
- Works with most PLCs and industrial controllers
- Compatible with sensors, relays, and small drives
- Fits standard industrial control cabinets
- Matches common DIN rail accessories
Certifications & Package
- UL 508, CE, EN 60721 compliant
- Includes power supply unit only
- Full documentation provided
- 12-month warranty
Shipping Methods
- Fast worldwide delivery available
- FedEx, UPS, and DHL express options
- Trackable shipping with insurance
Typical Applications
- Industrial control panel power
- Factory automation systems
- Process control equipment
- Machinery and motor control
- Packaging and conveying systems
Diagnostic Features
- Green LED for power-on status
- Built-in overload protection
- Automatic recovery from faults
- Stable output under load changes
Frequently Asked Questions
What does POWER BOOST mean?
The unit can deliver 15A briefly for motor starts.
Can it operate in cold temperatures?
Yes, it starts at -40°C and runs at -25°C.
What wire size should I use?
Use 0.2 to 2.5mm² wires. Strip 7mm of insulation.
Does it need cooling space?
Yes. Keep 50mm clearance above for air flow.
What causes most failures in practice?
Poor ventilation and excessive ambient heat.
Is derating necessary?
Above 60°C, reduce load by 2.5% per degree.
Selection Guide
- Choose for reliable 24V DC power up to 10A
- Perfect for harsh industrial environments
- Select if you need brief 15A peak current
- Ideal for global use with wide input range
- Best for applications needing high MTBF
