Description
Direct-Mount Precision Monitoring Solution

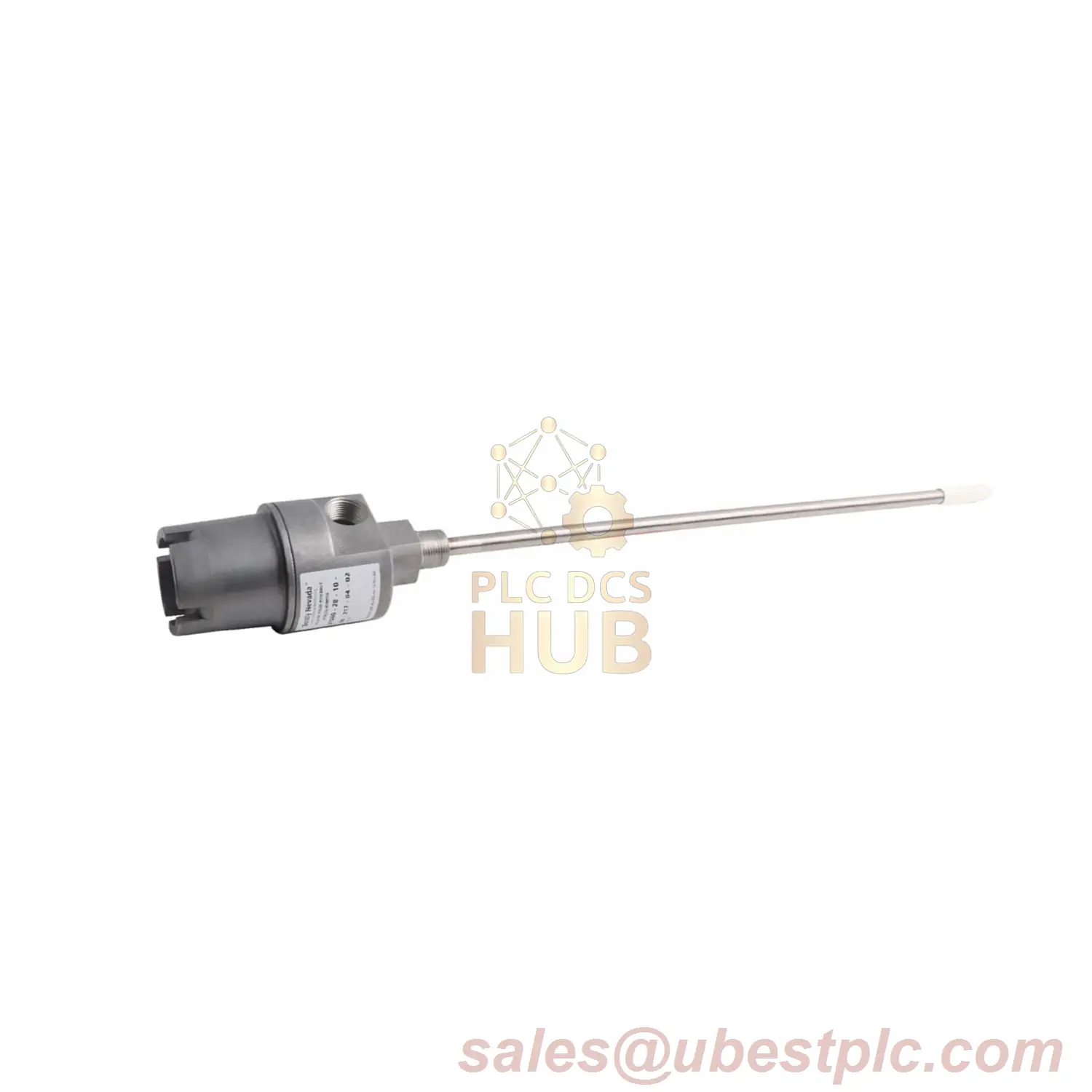

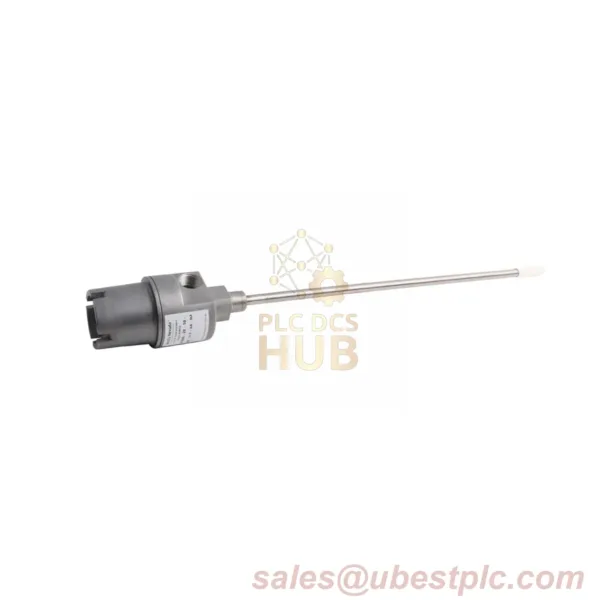

The Bently Nevada 21000-16-10-00-144-03-02 features zero-standoff configuration with 4.4″ penetration depth, ideal for space-critical installations requiring CSA Type 4 explosion-proof certification. This API 670-compliant assembly delivers uncompromised performance in intrinsically safe environments.
Suffix Configuration Matrix for 21000-16-10-00-144-03-02
| 16 | 3300 XL 8mm High-Frequency Probe (100kHz response) |
| 10 | 1.0m High-Temperature Cable (200°C rating) |
| 00 | Flush Mount Design (No Standoff) |
| 144 | Medium-Range 4.4″ Penetration |
| 03 | One 3/4-14 NPT plug One 3/4-14 to 1/2-14 NPT reducer One cable seal grip with grommets for the following cable sizes:
|
| 02 | Mounting Thread 3/4-14 NPT |
Advanced Technical Parameters
Dynamic Performance
- Frequency Response: DC to 100kHz (±3dB)
- Phase Shift: <1° @ 10kHz
- Radial Clearance: 0.8mm (0.03″) minimum
Environmental Specifications
- Salt Spray Resistance: 1000hrs ASTM B117
- Thermal Shock: 50 cycles (-55°C ↔ +125°C)
- EMC Compliance: EN 61326-1:2013
Industry-Specific Applications
- Subsea Wellhead Monitoring – Deepwater vibration analysis meeting API 17F standards
- High-Speed Rail Axle Inspection – EN 50155 compliant wheel bearing monitoring
- Cryogenic Pump Systems – LNG transfer operations at -162°C
Critical Installation Requirements
- Mandatory surface finish Ra<32μin for flush mounting
- Required axial preload torque of 25Nm ±10%
- Probe flag labels must use marine-grade adhesives
Global Approvals: CSA | ATEX II 2G | DNV-GL
Technical Support: sales@ubestplc.com for subsea installation guidelines
Check official datasheet to know more detailed information: 21000- 24701- and 164818 Proximity Probe Housing Assemblies Datasheet
