Description
High-Performance Machinery Protection

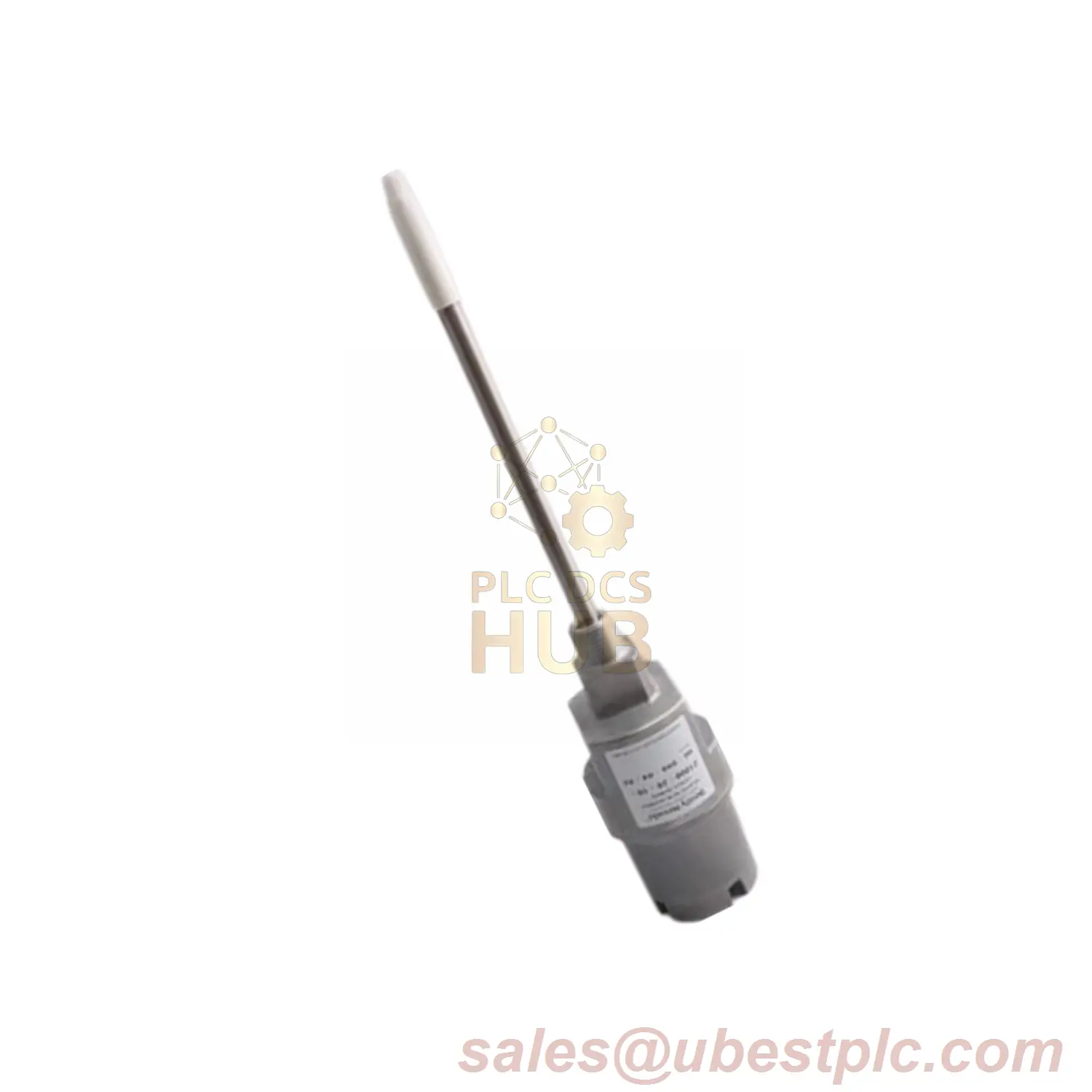

The Bently Nevada 21000-16-10-00-066-03-02 features a 6.6″ (167.6mm) penetration depth, optimized for monitoring rotating equipment through multiple protective layers. CSA-certified for Class II Division 2 Group G combustible dust environments.
Technical Configuration
Suffix Analysis for 21000-16-10-00-066-03-02
- 16: 8mm 3300 XL HT Probe (-50°C to +150°C)
- 10: 1.0m (39″) Abrasion-Resistant Cable
- 00: Flush Mount Configuration
- 066: 6.6″ Penetration (D)
- 03: Multi-Port Conduit System
- 02: Mounting Thread Option: 3/4-14 NPT
Operational Parameters
- Radial Clearance: 0.8-1.5mm (±0.1mm)
- Axial Measurement Range: ±2.5mm
- Housing Pressure Rating: 10 bar
- MTBF: 250,000 hours @ 40°C
Industrial Implementation
Wind Turbine Gearboxes
Monitors planetary gear wear in offshore environments, with 6.6″ penetration through 4″ thick epoxy-coated access panels. Aluminum housing prevents salt corrosion.
Pulp Mill Refiners
Detects rotor eccentricity in Group E metal dust conditions, utilizing -03 fittings to withstand 95% humidity and cellulose fiber ingress.
Compliance & Safety
- ATEX: II 3G Ex hc IIC T4
- IEC: 60079-0/60079-1
- NEMA: 12/13 Dual Certification
Package Contents
- Pre-assembled housing with laser-etched P/N
- 316SS conduit adapters (3/4-14 NPT)
- Calibration shim set (0.5-2.0mm)
- CSA test documentation package
Technical Advisory: For penetrations exceeding 6″, use anti-resonance clamp P/N 21000-ARC6. Contact sales@ubestplc.com for API 670 alignment diagrams.
Check official datasheet to know more detailed information: 21000- 24701- and 164818 Proximity Probe Housing Assemblies Datasheet
