Description
Long-Reach Hazardous Area Sensor System

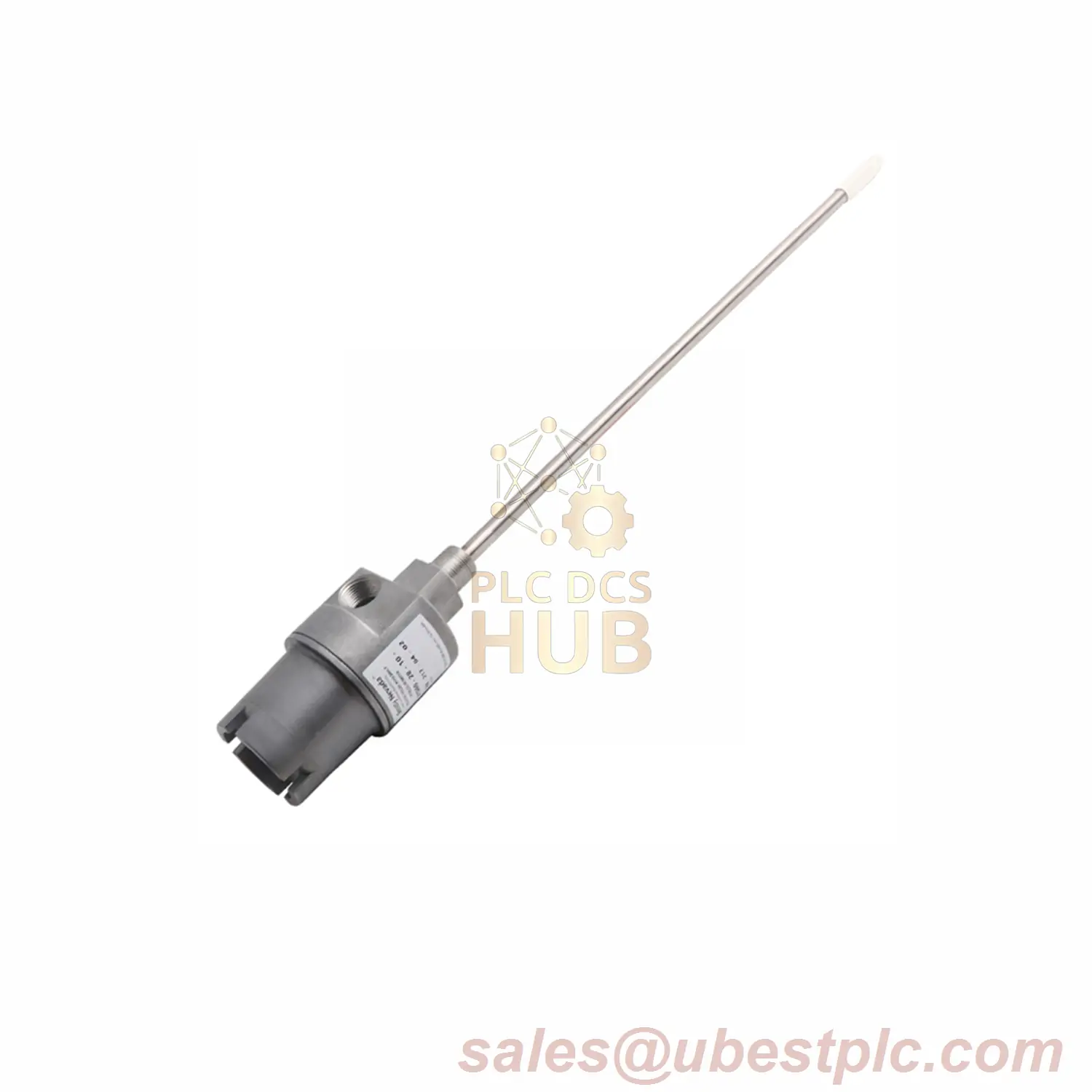

The Bently Nevada 21000-16-10-00-120-03-02 features an extended 12″ (120) penetration depth, engineered for deep-set monitoring in CSA-certified explosive environments. This API 670-compliant assembly combines industrial durability with precision measurement capabilities.
Suffix Decoding Guide for 21000-16-10-00-120-03-02
- 16: 3300 XL 8mm High-Sensitivity Probe (±0.25% linearity)
- 10: 1.0m Abrasion-Resistant Cable
- 00: Direct Surface Mount Configuration
- 120: Deep Measurement 12″ Penetration
- 03: High-Pressure NPT Fitting System
- 02: Mounting Thread Option – 3/4-14 NPT
Enhanced Technical Profile
Mechanical Specifications
- Radial Runout Tolerance: 0.05mm MAX
- Resonance Frequency: 45Hz (unsupported)
- Cable Tensile Strength: 150N (33.7 lbf)
Environmental Ratings
- Hydrostatic Pressure: 300m (984ft) depth rating
- Chemical Resistance: NORSOK M-501 approved
- Impact Resistance: IK10 protection level
Specialized Industry Applications
Installation Requirements
- Mandatory alignment jig for penetrations >6″
- Required anti-vibration mounts for crusher applications
- Probe labels must withstand high-pressure washdowns
Global Certifications: CSA | ATEX Zone 1 | IECEx
Contact Engineers: sales@ubestplc.com for deep penetration support solutions
Check official datasheet to know more detailed information: 21000- 24701- and 164818 Proximity Probe Housing Assemblies Datasheet
