Product Overview

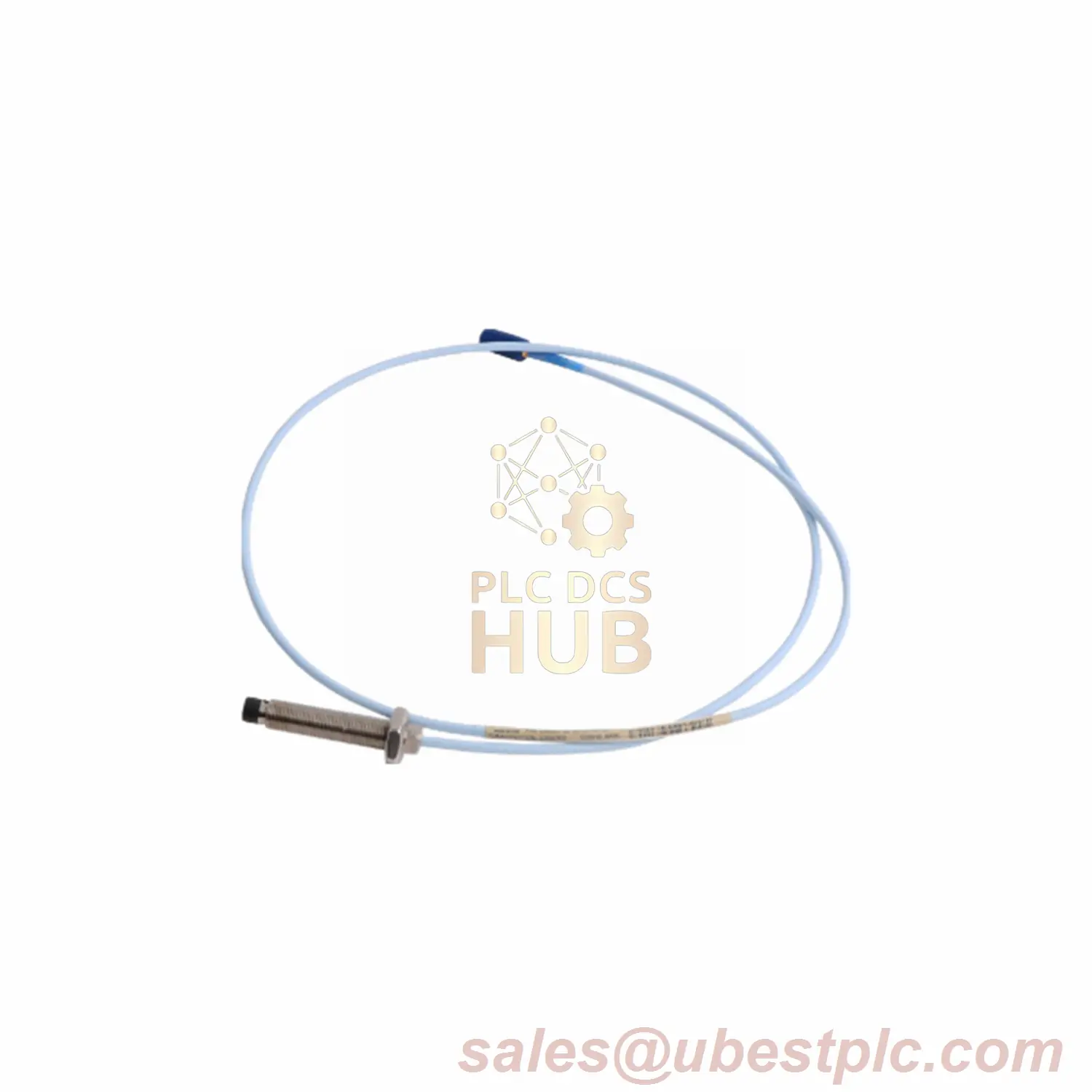

The Bently Nevada 3300 XL Heavy-Duty Proximity Probe (Model: 330103-03-10-15-01-00) combines a 100mm reinforced case with 1.5m armored cable, engineered for harsh industrial environments. Features 30mm unthreaded section for vibration-resistant installations.
Technical Specifications for 330103-03-10-15-01-00
- Suffix Breakdown: 03-10-15-01-00
03: 30mm Unthreaded Zone
10: 100mm Case Length
15: 1.5m (4.9ft) Cable
01: ClickLoc® with Protector
00: Non-Certified Industrial Use
- Signal Linearity: ±1% FS over full 2mm range
- Impact Rating: IK08 mechanical shock protection
- Cable Flexibility: 300+ bend cycles @ -40°C
- Radial Load Capacity: 50N side force tolerance
Advanced Features
- Coating System: Passivated per ASTM A967
- EMI Shielding: 95% coverage double-braided shield
- Surface Adaptability: Effective on non-ferrous alloys (Inconel®/Hastelloy®)
Installation Guidelines
- Use Corrosion-Resistant Grease (MIL-PRF-81322) on threads
- Maintain 10mm radial clearance from adjacent components
- Ground through dedicated 4mm² conductor per EN 60204-1
Compliance Standards
- NEMA 4X/IP66 rated enclosure compatibility
- DNV GL-RP-0496 for maritime applications
Industry Applications
- Mining: Ball mill trunnion bearing monitoring
- Offshore: Jack-up rig leg penetration measurement
- Steel Production: Continuous casting roller alignment
Technical Support: For marine compliance documentation or material test reports, contact sales@ubestplc.com
