Description

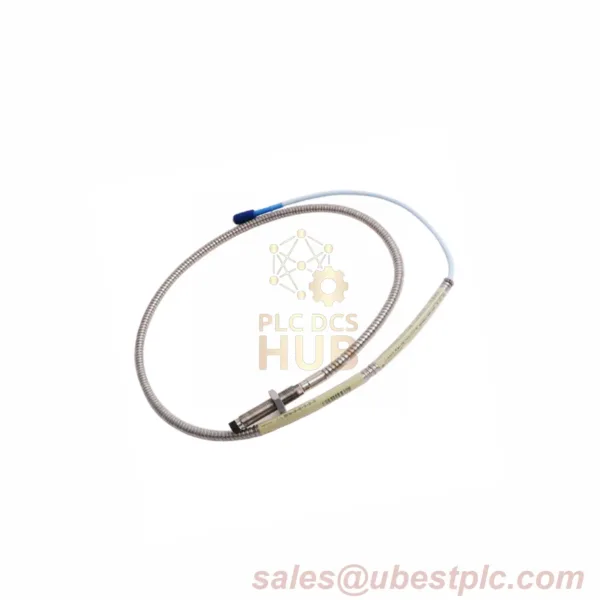

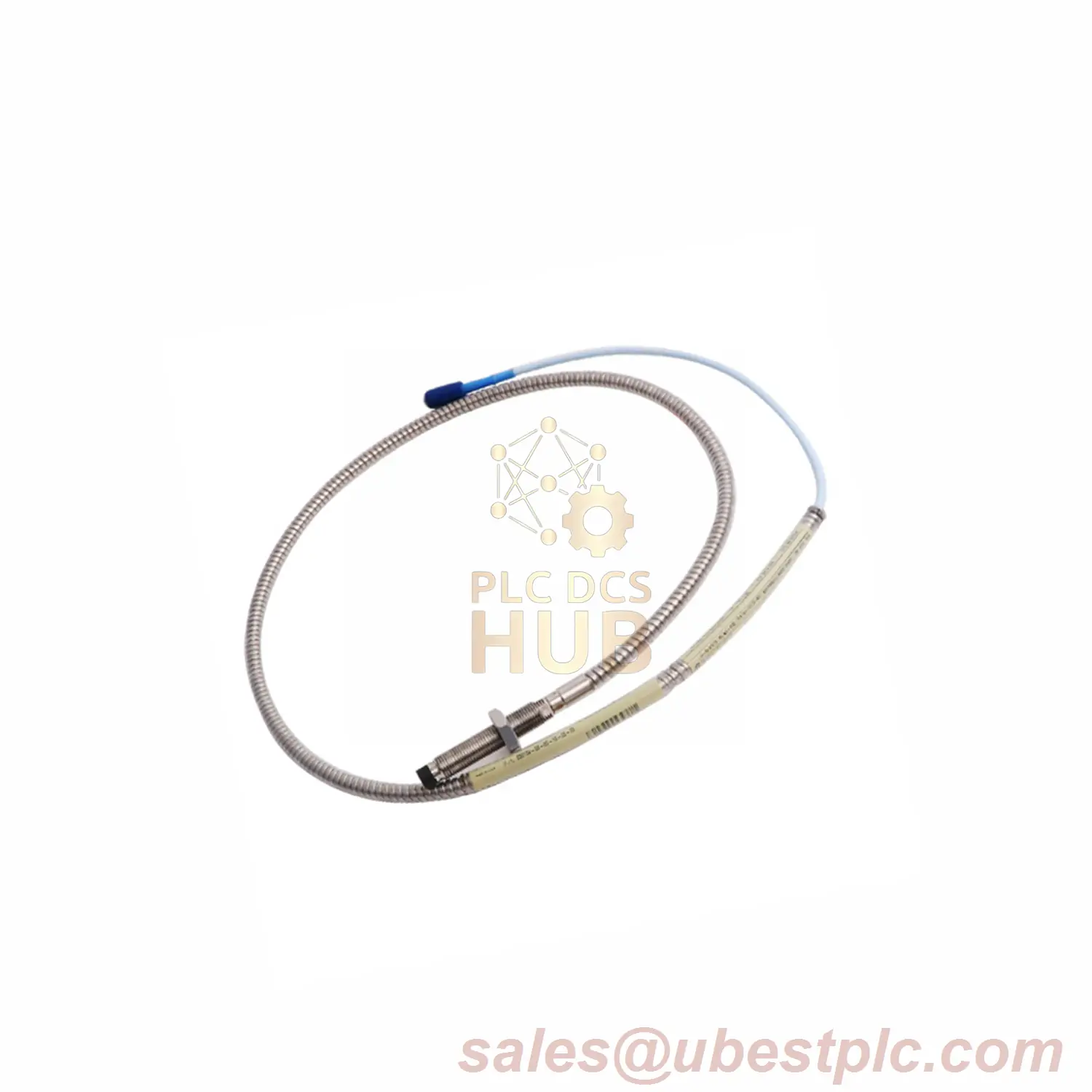

The Bently Nevada 330103-00-03-05-02-00 is a 3300 XL 8 mm Proximity Probe designed for precision vibration and position monitoring in industrial machinery. Featuring an M10x1 threaded stainless steel case and a PPS probe tip, it ensures durability in harsh environments. Ideal for applications requiring reliable non-contact measurement with ±0.50Ω resistance tolerance and extended temperature resilience.
Technical Data
- Brand: Bently Nevada
- Model: 330103-00-03-05-02-00
- 330103: Base model (3300 XL 8 mm Probe, M10x1 thread, no armor)
- 00: Unthreaded length = 0 mm
- 03: Overall case length = 30 mm
- 05: Cable length = 0.5 meters
- 02: Miniature coaxial ClickLoc connector
- 00: No agency approvals
- Measurement Range: 2 mm (80 mils), linear from 0.25 mm to 2.3 mm
- Output Signal: -1 to -17 Vdc
- DC Resistance: 7.45 ±0.50 Ω
- Operating Temperature: -52°C to +177°C (Standard)
- Probe Material: AISI 303/304 SST case, PPS tip
Installation Guide
- Thread Engagement: Max 15 mm for M10x1
- Cable Length: 0.5 meters (extendable to 305 meters with shielded triad cable)
- Gap Setting: Optimized at -9 Vdc (~1.27 mm) for radial vibration
Compatibility
- Works with 3300 XL Proximitor Sensors and intrinsic safety barriers (per drawing 141092)
- Supports Class I/II/III hazardous area certifications
Certifications
- AEx/Ex ia IIC T5-T1 Ga (Zone 0)
- AEx/Ex nA IIC T5-T1 Gc (Zone 2)
Package Contents
- 3300 XL 8 mm Proximity Probe
- Documentation & Compliance Certificates
Warranty
1-year limited warranty covering manufacturing defects.
Application Example
Used in gas turbine monitoring to detect shaft vibration and prevent mechanical failures. Compatible with Bently Nevada 3300 monitoring systems for real-time diagnostics.
