Proximity Probes Bently Nevada 330103-00-03-10-02-CN

Description

Product Overview

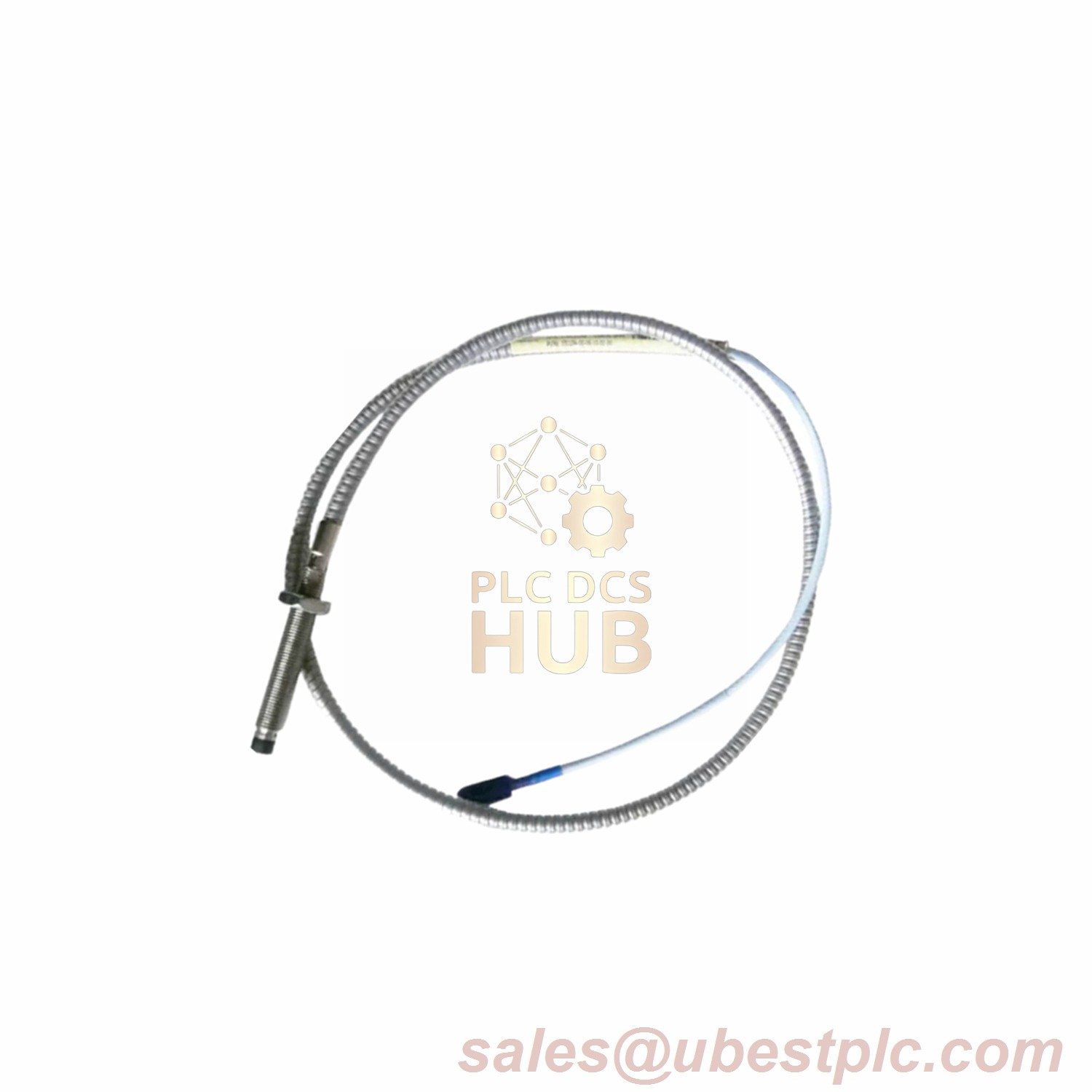

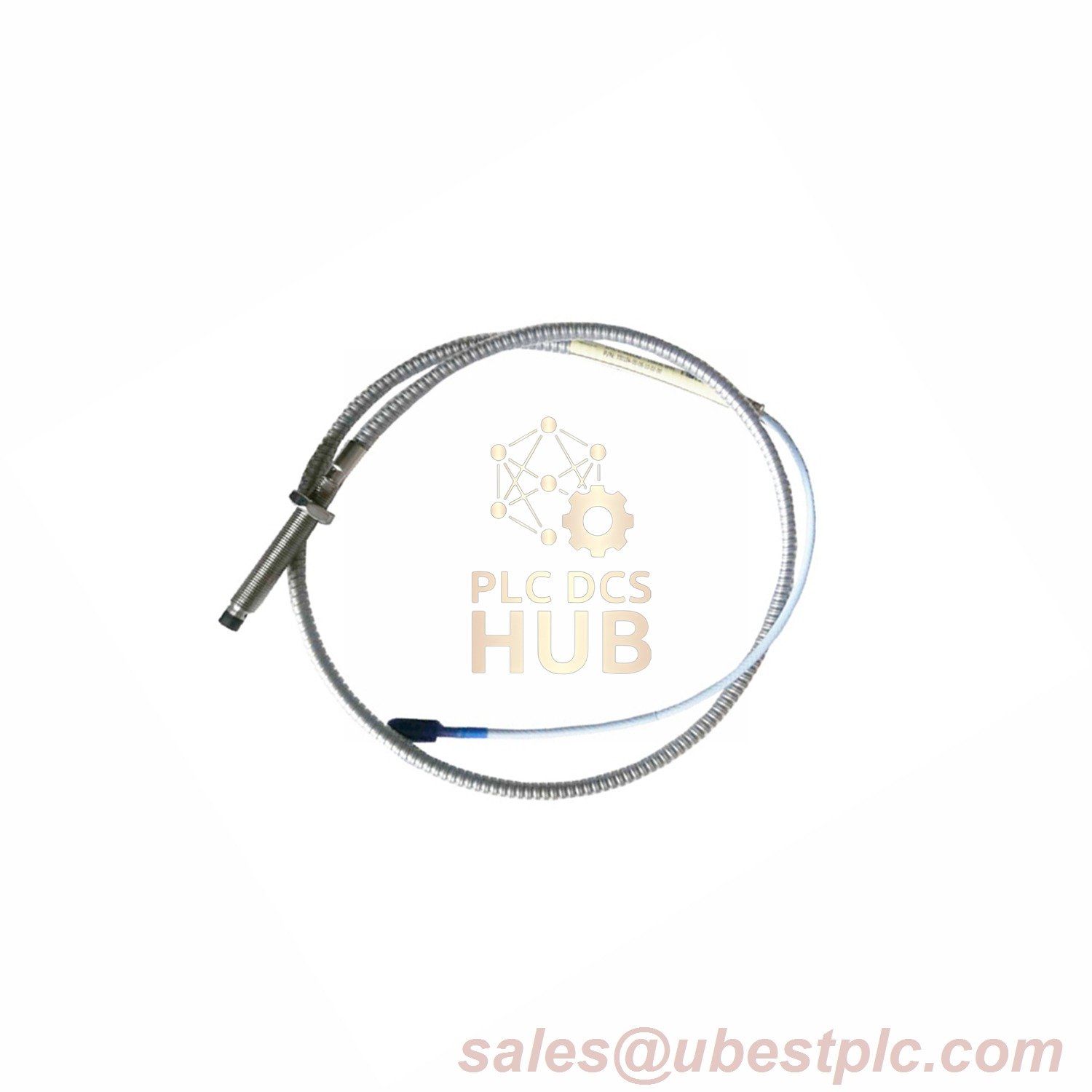

The Bently Nevada 330103-00-03-10-02-CN 8 mm Proximity Probe delivers precise vibration monitoring for industrial machinery in hazardous environments. Featuring an M10x1 threaded stainless steel case (30 mm length) and a Polyphenylene sulfide (PPS) tip, this probe ensures durability and reliability. With a 1.0-meter cable and Miniature ClickLoc connector, it simplifies installation while maintaining signal integrity. Designed for extreme temperatures (-52°C to +177°C standard, up to +260°C extended) and certified for hazardous zones, it is ideal for critical applications requiring robust performance.

Technical Specifications for 330103-00-03-10-02-CN

???? Manufacturer: Bently Nevada
???? Model: 3300 XL 8 mm Proximity Probe
???? Dimensions:

• Unthreaded Length: 00 mm
• Case Length: 30 mm
• Total Length: 1.0 m (3.3 ft)
  ???? Connector: Miniature coaxial ClickLoc (standard cable)
  ⚡ Electrical:
• Resistance: 7.59 ± 0.50 Ω (1.0 m length)
• Linear Range: 2 mm (0.25–2.3 mm / -1 to -17 Vdc)
• Recommended Gap: -9 Vdc (~1.27 mm / 50 mils)
  ????️ Materials:
• Tip: PPS
• Case: AISI 303/304 stainless steel
• Seal: Viton® O-ring (not pressure-tested)
  ????️ Temperature:
• Standard: -52°C to +177°C (-62°F to +350°F)
• Extended: Tip up to +218°C (+425°F), cable up to +260°C (+500°F)
  ⚖️ Weight: 323 g/m (11.4 oz/ft)
