Description
Product Overview

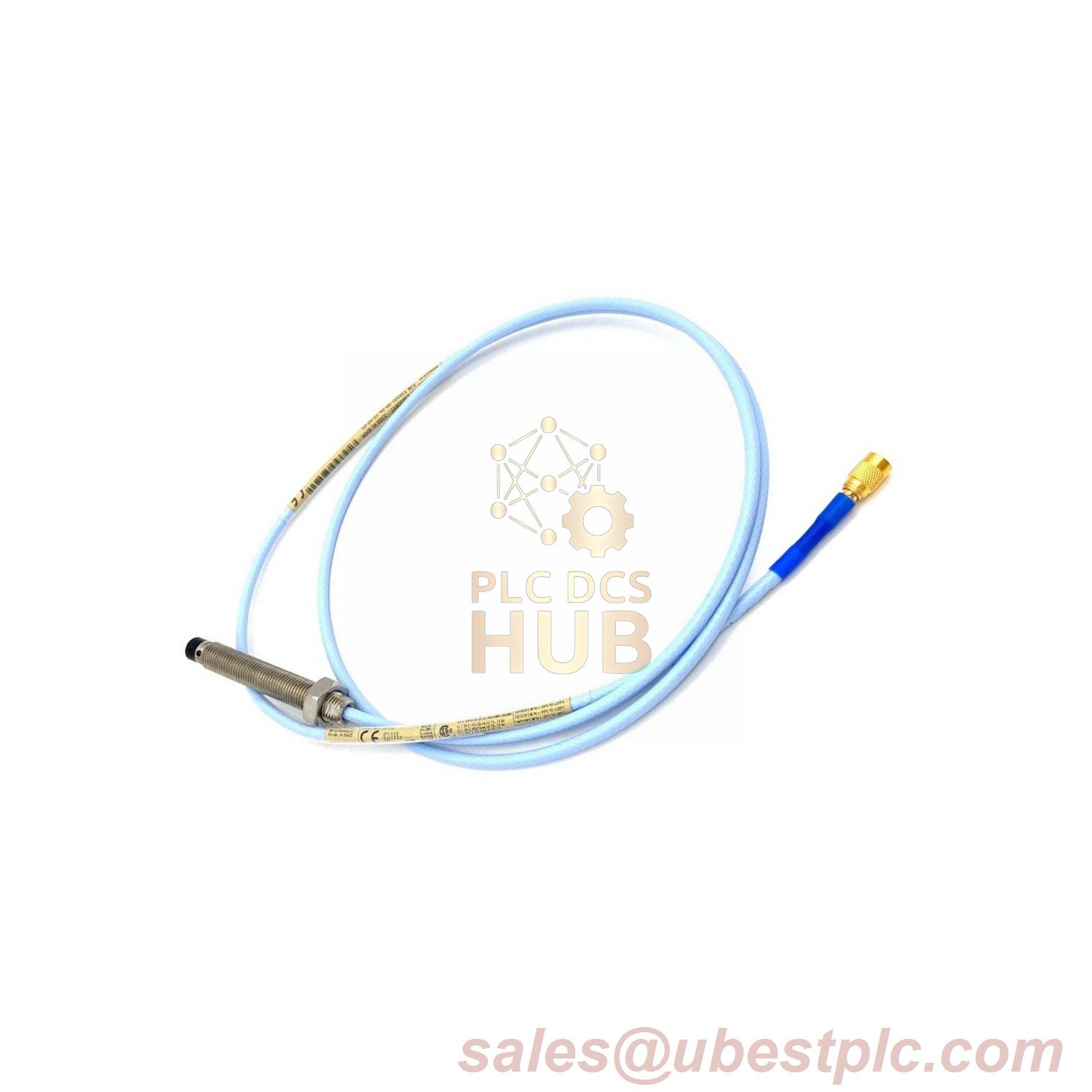

The Bently Nevada 330103-00-12-10-01-00 8 mm Proximity Probe is engineered for precision vibration and position monitoring in industrial applications, including hazardous environments. Featuring an M10x1 threaded stainless steel case and Polyphenylene sulfide (PPS) tip, this unarmored probe offers durability and reliability. With a 1.0-meter cable and Miniature ClickLoc connector, it ensures easy installation and secure signal transmission.
Technical Specifications for 330103-00-12-10-01-00
???? Manufacturer: Bently Nevada
???? Model: 3300 XL 8 mm Proximity Probe
???? Dimensions:
- Unthreaded Length: 00 mm
- Case Length: 120 mm
- Total Length: 1.0 m (3.3 ft)
???? Connector: Miniature coaxial ClickLoc with standard cable
⚡ Electrical: - Resistance: 7.59 ± 0.50 Ω (1.0 m length)
- Linear Range: 2 mm (0.25–2.3 mm / -1 to -17 Vdc)
- Recommended Gap: -9 Vdc (~1.27 mm / 50 mils)
????️ Materials: - Tip: PPS
- Case: AISI 303/304 stainless steel
- Seal: Viton® O-ring (not pressure-tested)
????️ Temperature: - Standard: -52°C to +177°C (-62°F to +350°F)
- Extended: Tip up to +218°C (+425°F), cable up to +260°C (+500°F)
⚖️ Weight: 323 g/m (11.4 oz/ft)
Contact Information
For custom pressure testing or hazardous area certifications:
Email: sales@ubestplc.com
