GE Fanuc Emerson QuickPanel+ IC754VBI06STD HMI

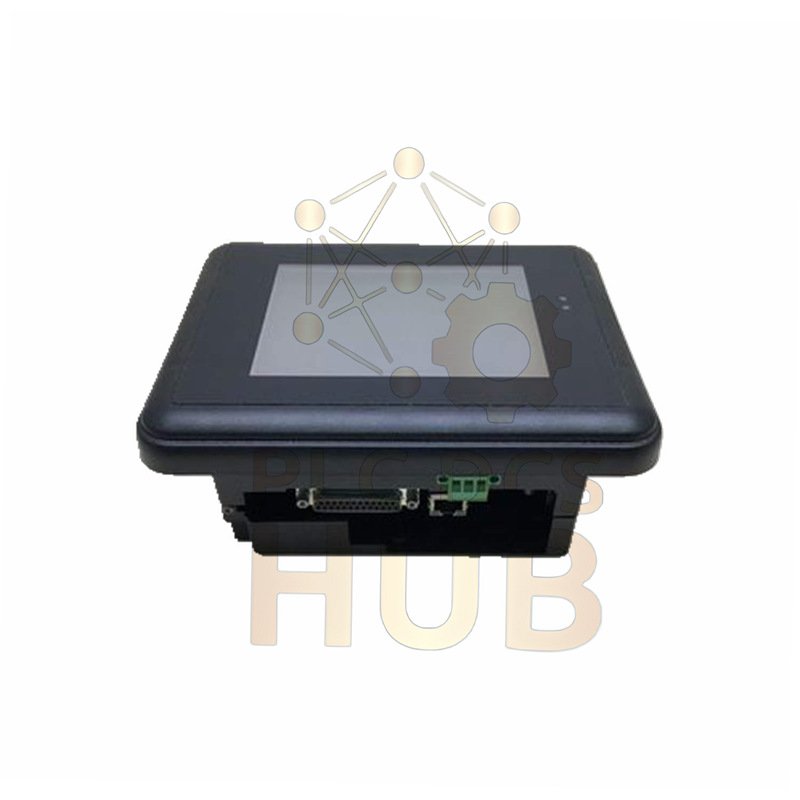

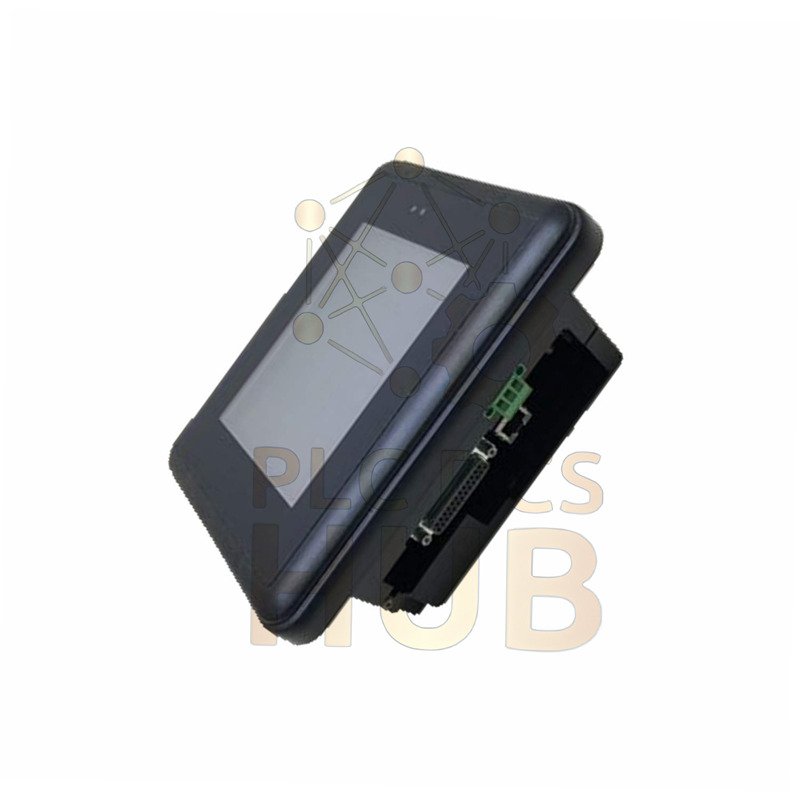

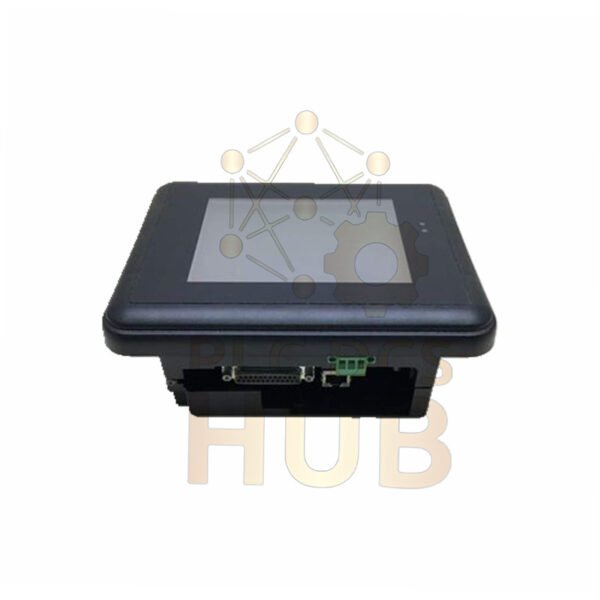

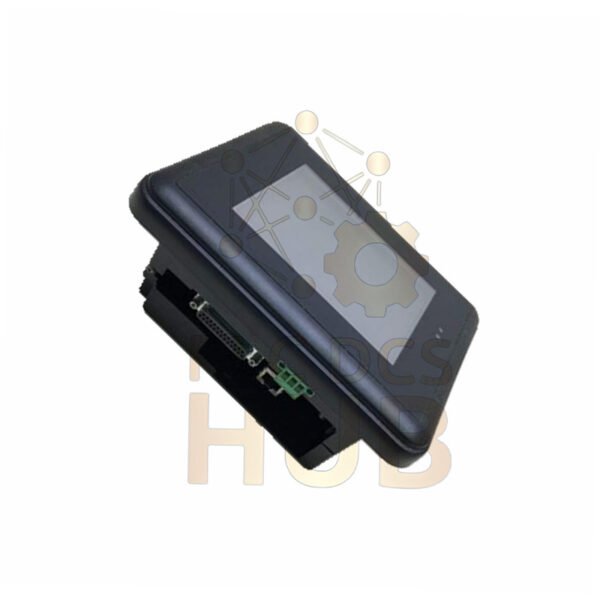

The IC754VBI06STD is a 6-inch color touchscreen operator interface. This HMI belongs to the QuickPanel+ series by GE Fanuc Emerson. It provides reliable control for industrial automation systems.
Technical Specifications
- Model: IC754VBI06STD
- Brand: GE Fanuc Emerson
- Series: QuickPanel+
- Display Size: 6 inches diagonal
- Display Type: Color TFT LCD
- Touch Technology: Resistive touchscreen
- Resolution: 640 x 480 pixels
- Brightness: 250 cd/m² typical
- Backlight Life: 50,000 hours minimum
- Processor: Advanced ARM microprocessor
- Memory: 32 MB flash, 512 KB battery-backed SRAM
- Communication Ports: RS-232 and RS-485 serial
- Baud Rates: 1200 to 115200 bps adjustable
- Power Input: 12-30 VDC wide range
- Power Consumption: 15 watts maximum
- Weight: 4.44 lbs (2.01 kg)
- Dimensions: 14 x 12 x 10 inches
- Operating Temperature: 0°C to 50°C (32°F to 122°F)
- Storage Temperature: -20°C to 70°C (-4°F to 158°F)
- Humidity: 10% to 90% non-condensing
- Vibration Resistance: 1G at 10-500 Hz
- Shock Resistance: 10G for 11 ms duration
- Enclosure Rating: NEMA 4/4X front panel
- Pollution Degree: 2 (normal industrial)
- Certifications: CE, UL, cUL listed
Key Features & Benefits
- High-resolution color display for clear visibility
- Intuitive touchscreen operation reduces training time
- Dual serial ports for flexible device connection
- Wide voltage input range for various power sources
- Non-volatile memory protects critical data
- Battery backup maintains settings during outages
- Rugged construction withstands industrial environments
- Compact design saves valuable panel space
- Easy mounting with standard cutout dimensions
- Compatible with major PLC brands and protocols
Communication Capabilities
- RS-232 port for direct computer connection
- RS-485 port for multi-drop networks
- Supports Modbus RTU protocol
- DF1 protocol for Allen-Bradley compatibility
- Custom driver development available
- HMI-CAB-C110 communication cable included
- Maximum cable length: 50 feet (15 meters)
- Isolated communication ports reduce noise
Installation & Setup
- Panel cutout: 5.91 x 4.33 inches (150 x 110 mm)
- Mounting depth: 2.36 inches (60 mm)
- Four mounting clips included
- Spring-loaded terminals for easy wiring
- Removable terminal blocks simplify maintenance
- Clear labeling for all connections
- Integrated strain relief for cables
- Tool-free installation design
Package Contents
- One IC754VBI06STD HMI unit
- HMI-CAB-C110 communication cable
- Mounting hardware kit
- Quick start guide
- Installation template
- Regulatory compliance documents
Warranty & Support
- Warranty Period: 12 months from purchase date
- Technical Support: Available via email and phone
- Software Updates: Available for download
- Documentation: Full manuals provided
- Repair Services: Available for out-of-warranty units
Shipping Information
- Shipping Methods: FedEx, UPS, DHL available
- Processing Time: 1-2 business days
- Tracking Number: Provided for all shipments
- International Shipping: Available worldwide
- Customs Documentation: Provided when needed
- Insurance: Available for valuable shipments
Expert Questions & Answers
- Q: What programming software works with this HMI?
- A: QuickDesigner software from GE Fanuc programs this unit effectively.
- Q: Can it communicate with Siemens PLCs?
- A: Yes, with proper driver configuration and serial communication setup.
- Q: How long does the backup battery last?
- A: Approximately 3-5 years depending on ambient temperature conditions.
- Q: Is the touchscreen replaceable if damaged?
- A> Yes, the touchscreen overlay can be replaced by authorized service centers.
- Q: What’s the expected lifespan in continuous operation?
- A> Typically 7-10 years with proper maintenance and normal operating conditions.
