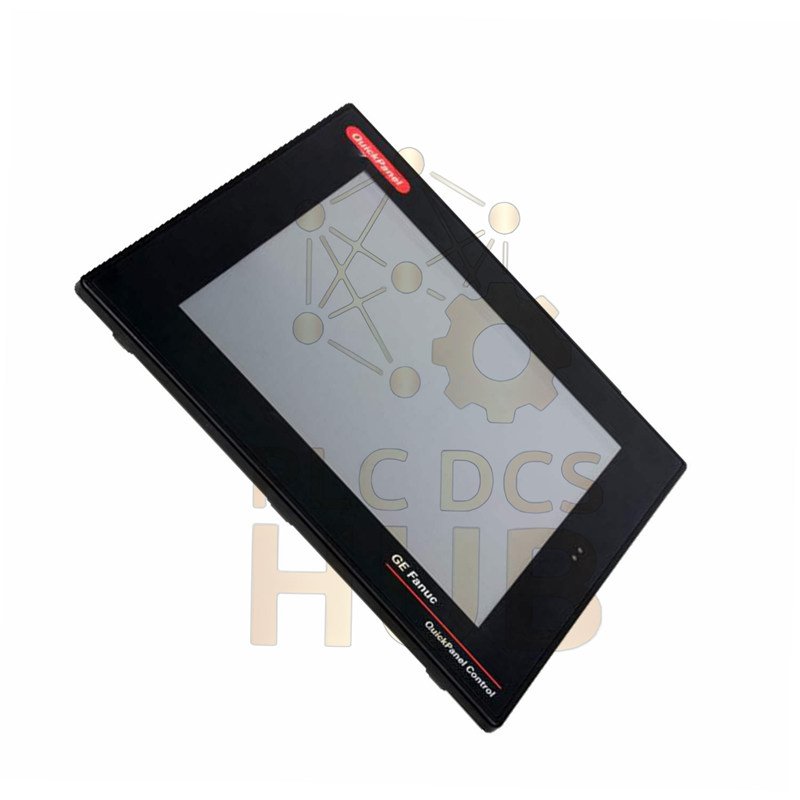

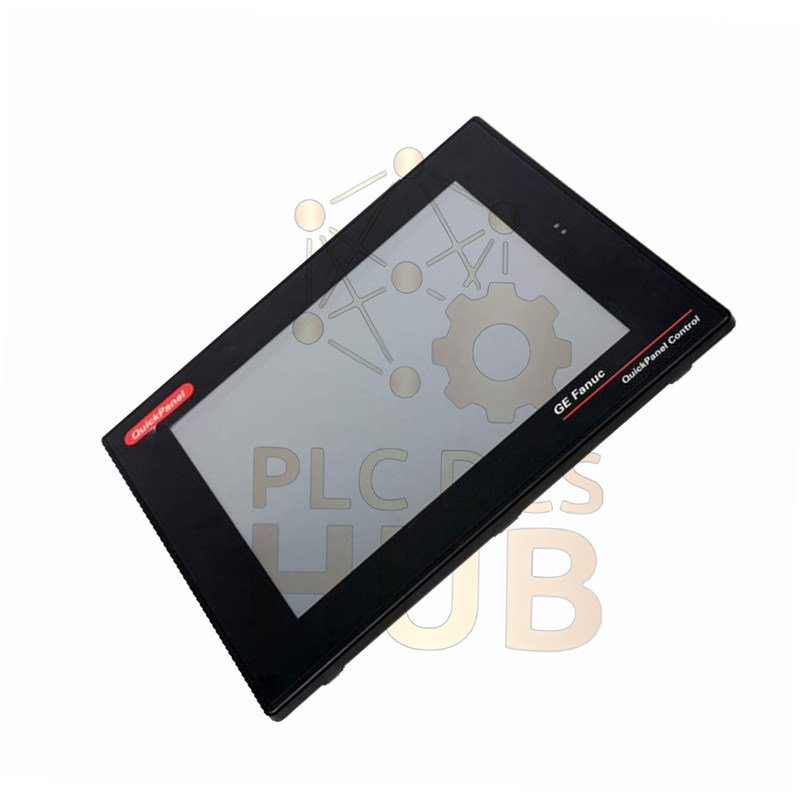

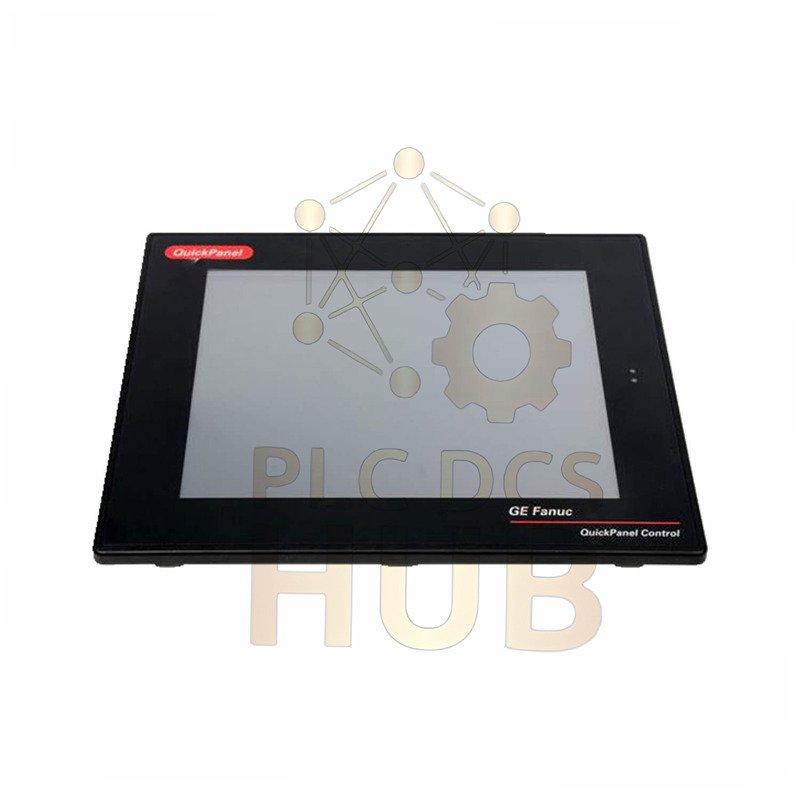

GE Fanuc IC754VBI08CTD QuickPanel Series Touchscreen HMI

Description

GE Fanuc IC754VBI08CTD QuickPanel Touchscreen HMI

• The IC754VBI08CTD offers stable control and display for daily factory operation.
• This QuickPanel unit fits medium-duty automation tasks.

Key Value for Users

• 8 inch color TFT screen shows clear process data.
• Touch operation improves response speed.
• Compact build saves control cabinet space.
• QuickPanel design supports long service life.

Display and Touch Design

• Resolution reaches 800 x 600 for sharp images.
• Screen supports 65 thousand colors.
• CCFL backlight delivers even brightness.
• Backlight life reaches about 50,000 hours.

Processor and Memory

• XScale PXA255 processor runs at 300 MHz.
• Flash memory provides 32 MB onboard storage.
• DRAM capacity reaches 32 MB.
• Expandable memory supports CompactFlash cards.

Communication and Ports

• RS232 and RS485 ports support serial devices.
• Ethernet port allows fast PLC data exchange.
• Status LEDs show power and system state.

Power and Electrical Data

• Input voltage range supports 12 to 30 VDC.
• Power design handles unstable supply conditions.
• Low heat output improves panel reliability.

Environmental and Protection

• NEMA 4 and 4X front rating protects against dust and water.
• Operating temperature fits 0 to 50 degrees Celsius.
• Storage temperature supports harsh conditions.

Typical Use Scenarios

• Machine control and monitoring panels.
• Process visualization for plant operators.
• Retrofit projects replacing older HMIs.

Warranty and Shipping

• Product includes a 12 month warranty.
• Fast delivery via FedEx UPS or DHL.

Professional FAQ

• Does this panel support long shifts?
  Yes, the backlight life supports continuous use.
• Can users upgrade storage later?
  Yes, CompactFlash allows simple expansion.
• Is the touchscreen accurate?
  Yes, the resistive panel offers stable input.
• Does it handle older PLC networks?
  Yes, serial ports support legacy systems.
• Is it easy to maintain?
  Yes, front access simplifies basic service.
