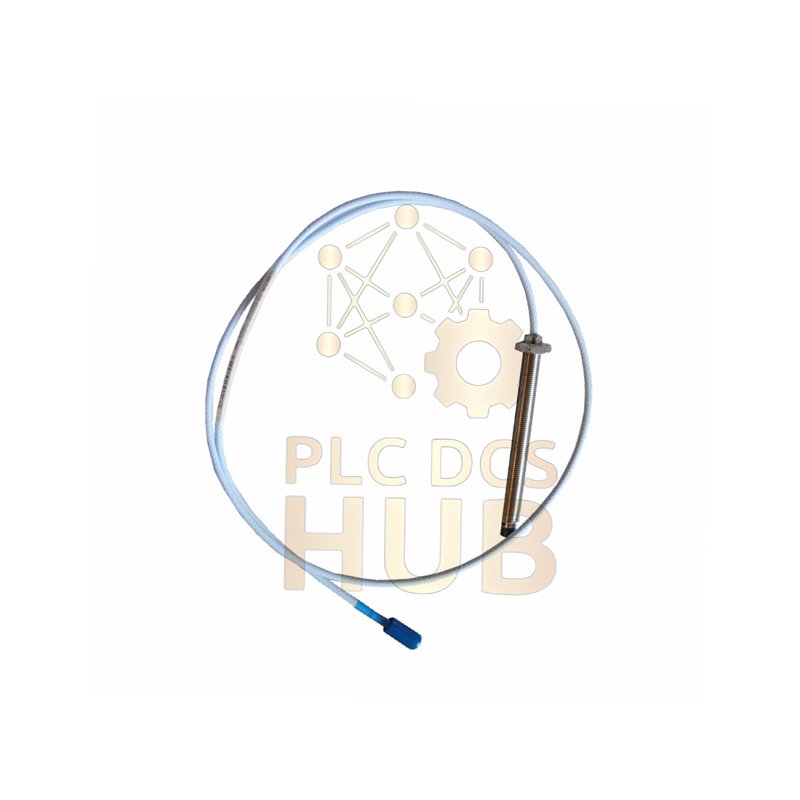

Bently Nevada 330103-00-14-50-02-00 | 3300 XL 8mm Proximity Probe

Description

Product Description

• Brand: Bently Nevada
• Model: 330103-00-14-50-02-00
• Series: 3300 XL
• 8 mm metric proximity probe for vibration and position monitoring.
• Designed for harsh industrial rotating equipment.
• Stable output across temperature and humidity changes.
• Optimized for use with 5 m Proximitor sensors.

Key Technical Specifications

• Probe Type: 3300 XL 8 mm proximity probe.
• Thread Size: M10 x 1 metric.
• Overall Case Length: 140 mm.
• Total Cable Length: 5.0 meters.
• Connector: Miniature coaxial ClickLoc.
• Armor: None.
• DC Resistance: 8.73 Ω ± 0.50 Ω.

Measurement Performance

• Linear Range: 0.25 mm to 2.3 mm.
• Total Range: 2 mm effective measurement span.
• Output Signal: Approx. –1 to –17 Vdc.
• Recommended Gap: –9 Vdc at 1.27 mm.
• High repeatability for radial vibration monitoring.

Environmental & Durability Ratings

• Probe Tip Material: PPS polymer.
• Probe Case: AISI 303 or 304 stainless steel.
• Operating Temperature: –52°C to +177°C.
• Extended Tip Rating: Up to +218°C.
• Humidity Stability: Less than 3% ASF shift.
• Resists oil mist, vibration, and industrial contaminants.

Electrical & Interference Protection

• Stable signal over long cable runs.
• Supports field wiring up to 305 meters.
• Compatible with shielded triad cables.
• Strong immunity to EMI and ground noise.

Installation Guidelines

• Maximum thread engagement: 15 mm.
• Ensure proper gap voltage during setup.
• Avoid exposure below –34°C during installation.
• No pressure test performed before shipment.

Commissioning & Maintenance

• Fast alignment using standard gap tools.
• No calibration required after installation.
• Low drift over long service life.
• Easy replacement without system shutdown.

Compatibility

• Designed for 3300 XL Proximitor sensors.
• Works with Bently Nevada vibration monitors.
• Suitable for Zone 0 and Zone 2 systems.

Certifications & Approvals

• ATEX and IECEx when used with approved barriers.
• Class I Zone 0 and Zone 2 rated.
• Suitable for hazardous industrial locations.

Typical Applications

• Steam and gas turbines.
• Centrifugal compressors.
• Large electric motors.
• Pumps and rotating shafts.

Diagnostic Capabilities

• Early fault detection for imbalance.
• Supports trend and waveform analysis.
• Improves asset reliability decisions.

Package Contents

• 1 x 3300 XL 8 mm proximity probe.
• Factory-installed 5 m cable.
• Protective packaging.

Warranty & Logistics

• Warranty: 12 months.
• Shipping: FedEx, UPS, DHL.
• Worldwide delivery available.

FAQ

• Can this probe work with shorter cables?
• No. It is tuned for 5 meter Proximitor systems.
• Is field calibration required?
• No. Factory characteristics ensure accuracy.
• What causes unstable readings?
• Poor grounding or incorrect gap setting.
• Is this suitable for continuous operation?
• Yes. It supports 24/7 industrial duty.
