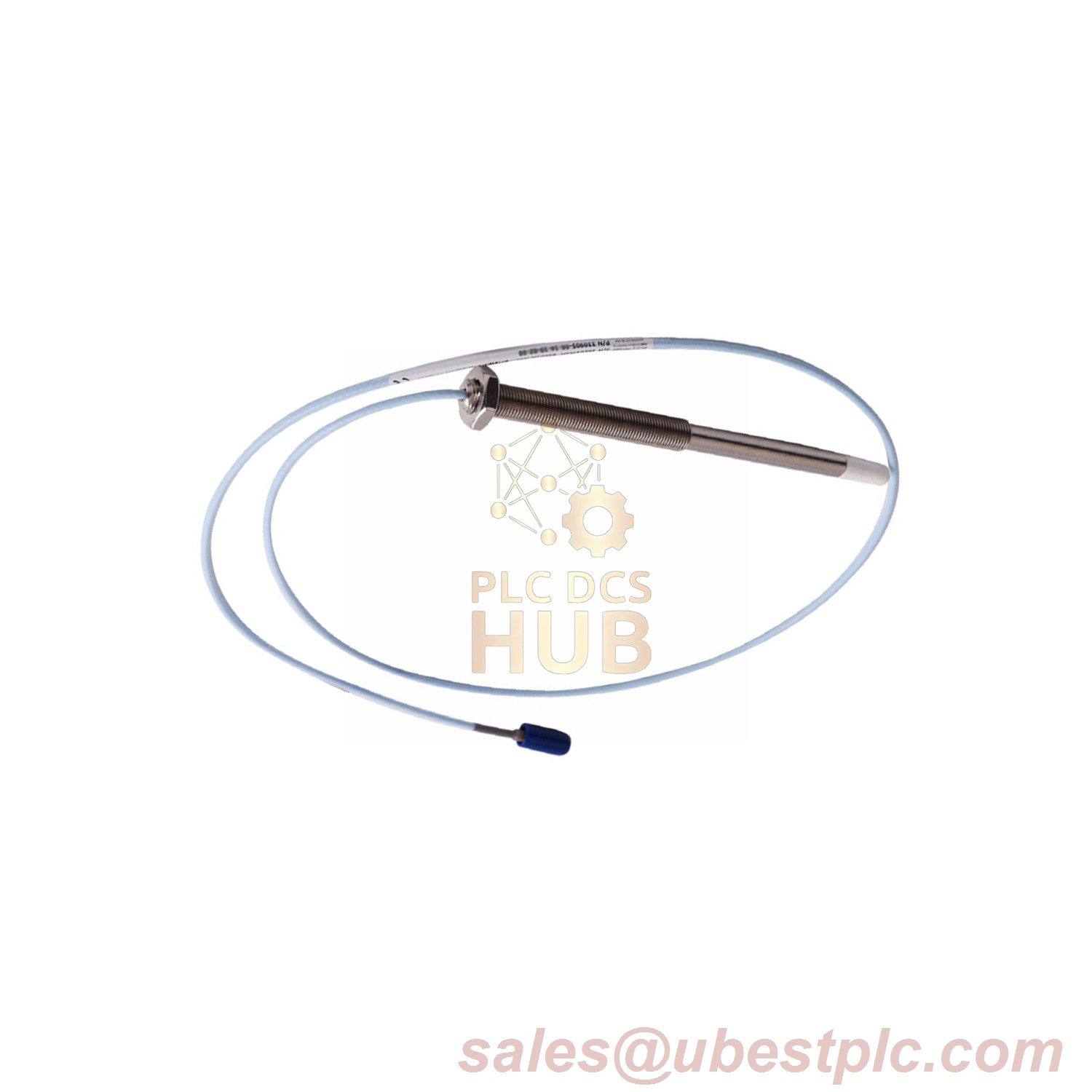

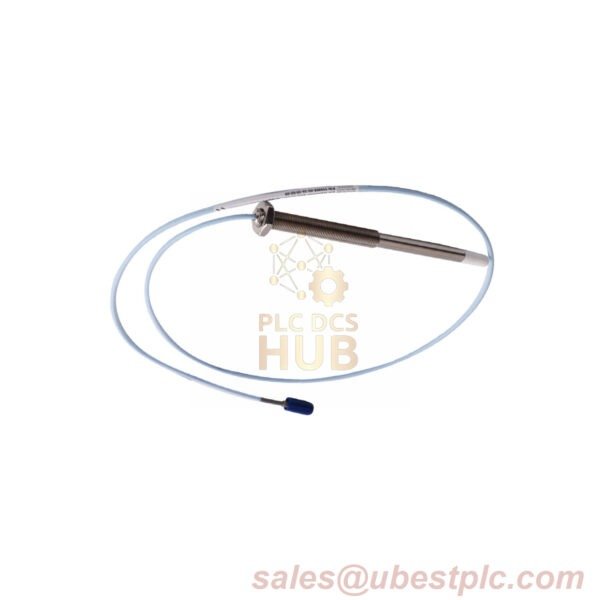

Reverse Mount Probe – Bently Nevada 330105-02-12-20-12-CN

Description

Overview

The Bently Nevada 330105 Reverse Mount Probe (Part No. 330105-02-12-20-12-CN) is engineered for precision vibration monitoring in challenging industrial settings. Designed with a 2.0-meter FluidLoc cable and Miniature ClickLoc connector, it prevents fluid ingress while ensuring secure reverse-mount installations. Certified for country-specific safety standards (CN), this probe features a rugged PPS tip, stainless steel casing, and patented TipLoc/CableLoc technologies for reliable performance in explosive or corrosive environments.

Technical Specifications

• Brand: Bently Nevada
• Model: 330105-02-12 (3300 XL 8mm Reverse Mount Probe)
• 330105-02-12-20-12-CN Breakdown:
  • 02: Connector type (Miniature ClickLoc)
  • 12: FluidLoc cable option
  • 20: 2.0-meter cable (6.6 feet)
  • CN: Country-specific agency approval
• Electrical Parameters:
  • DC Resistance: 7.85 Ω ±0.48 (2.0m cable)
  • Operating Voltage: -17.5 Vdc to -26 Vdc (barrier-compatible)
• Mechanical Design:
  • Tip Material: Polyphenylene sulfide (PPS)
  • Case Material: AISI 304 stainless steel
  • Thread: 3/8-24 UNF, 0.563-inch engagement
  • Weight: 323 g/m (11.4 oz/ft)
• Temperature Range:
  • Standard (EPL Ga/Gc): -52°C to +218°C (-62°F to +425°F)
  • Extended (EPL Dc): -52°C to +280°C (T280°C classification)
• Hazardous Area Certifications:
  • Class I, Zone 0: AEx/Ex ia IIC T1-T5 Ga
  • Class I, Zone 2: AEx/Ex nA/ec IIC T1-T5 Gc

Contact Support

For certification documents or custom configurations:
sales@ubestplc.com

Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
