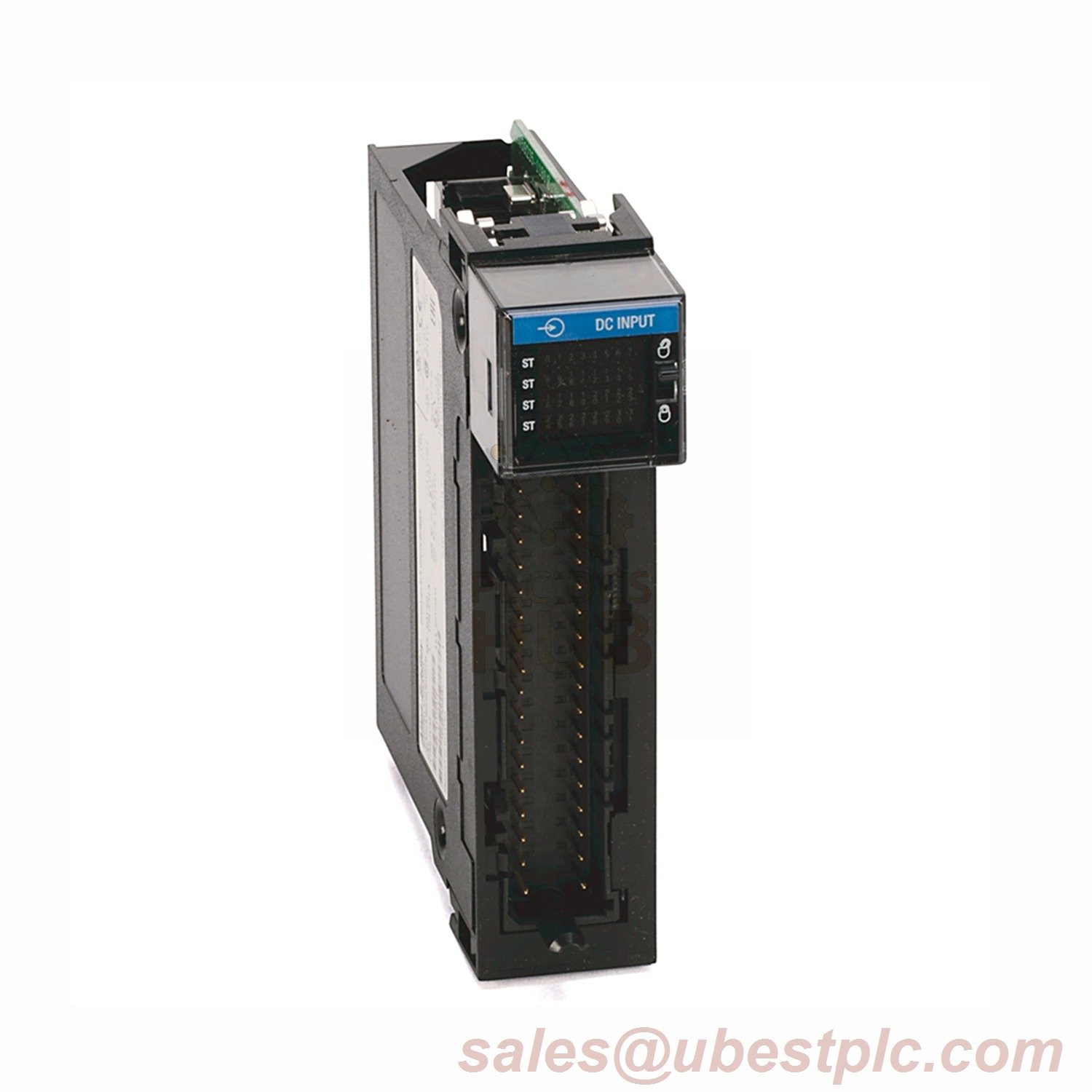

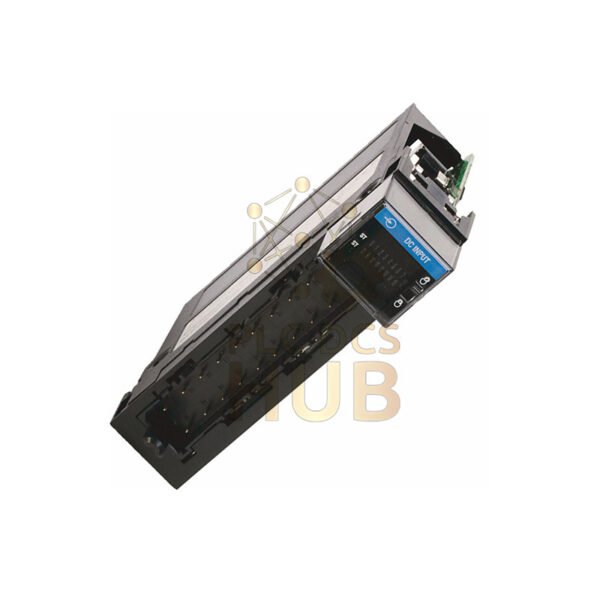

Allen-Bradley 1756-IV32: 32-Channel DC Input Module
The Allen-Bradley 1756-IV32 is a high-density DC input module for ControlLogix systems. It offers 32 input channels for efficient monitoring of digital signals.
Key Features & Benefits
- 32 DC input channels in 2 groups of 16
- Wide voltage range: 10-30V DC
- Low power consumption for energy savings
- Compact design saves chassis space
- Easy installation and configuration
Complete Technical Specifications
- Brand: Allen-Bradley / Rockwell Automation
- Full Model: 1756-IV32
- Module Type: 32-point DC Input Module
- Input Voltage: 24V DC Nominal (10-30V DC Range)
- On-State Current: 2mA @ 10V to 3.5mA @ 30V
- Off-State Current: 1.5mA maximum
- Input Delay: Programmable 0-18ms filter time
- Response Time: 350µs nominal ON, 540µs nominal OFF
- Power Use: 4.1W max, 120mA @ 5V, 2mA @ 24V
- Input Impedance: 8.6 kΩ maximum
- Isolation: 250V continuous
- Terminal Blocks: Requires 1756-TBCH or 1756-TBS6H
- Operating Temperature: 0 to 60°C (32 to 140°F)
Compatibility Information
The 1756-IV32 works with all ControlLogix chassis. It fits standard 1756 system slots.
Installation Guide
This module needs a 36-pin terminal block. Choose 1756-TBCH or 1756-TBS6H. Install in chassis, add terminal block, and wire inputs.
Download Product Manual
- Complete wiring diagrams
- Configuration settings
- Troubleshooting guide
- Get full documentation: 1756 ControlLogix I/O Manual
Professional FAQ
- How many input groups does it have? – 2 groups of 16 points each
- What is the maximum current draw? – 3.5mA per input at 30V DC
- Can it handle 12V systems? – Yes, 10-30V DC range supported
- What is the power consumption? – 4.1 Watts maximum
- Is isolation provided? – Yes, 250V continuous isolation
Shipping & Warranty
We ship worldwide via FedEx, UPS, and DHL. Full 12-month warranty included.
Package Includes
- One 1756-IV32 module
- Installation guide
- (Terminal block sold separately)
