Rockwell Automation 1756-L83E PAC – Maximum Capacity Controller

Description

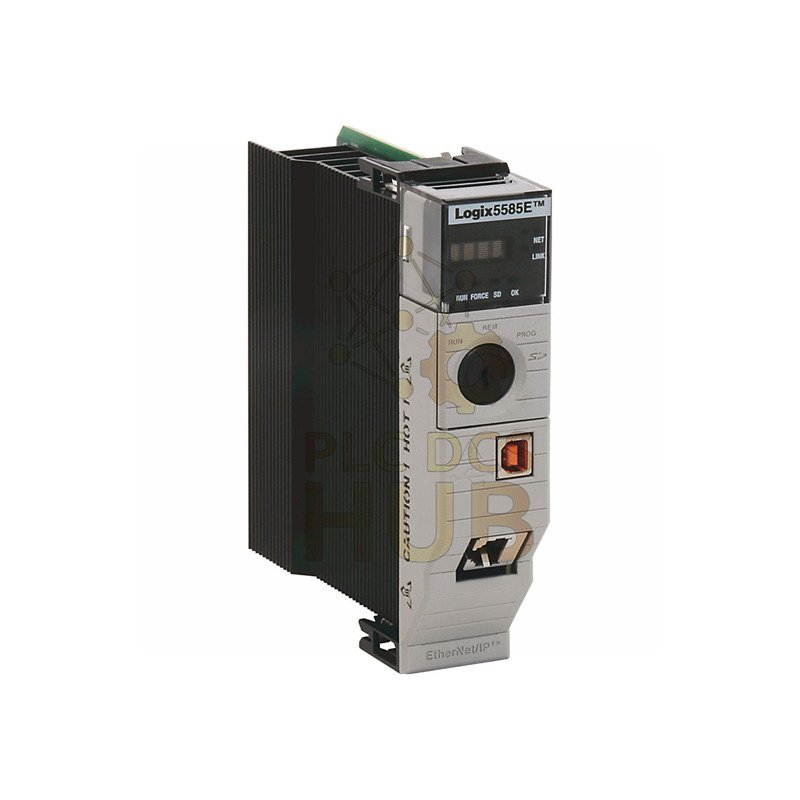

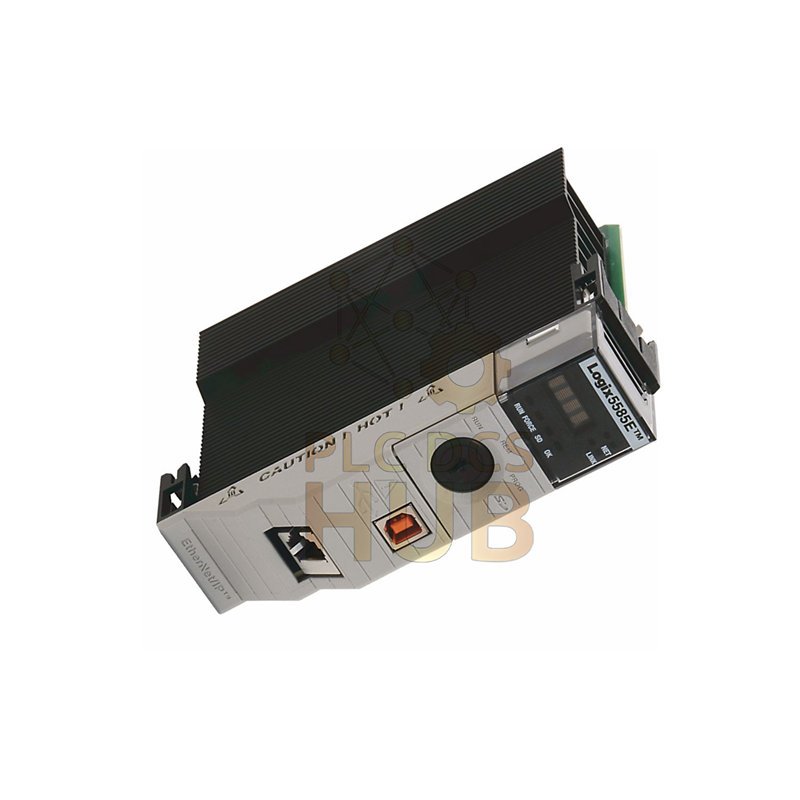

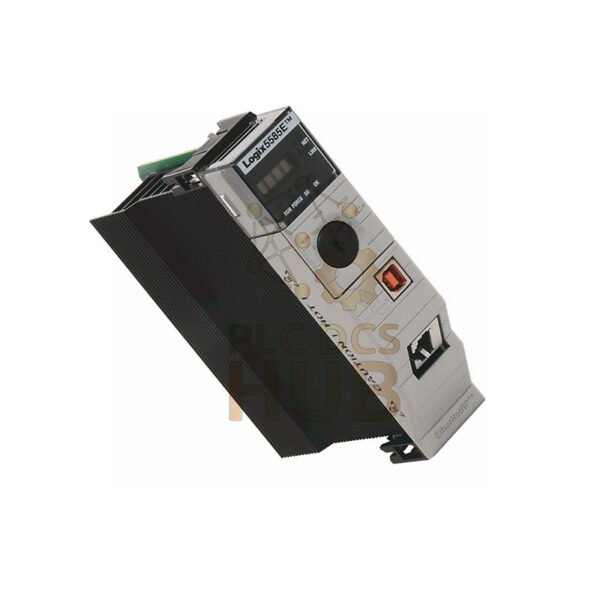

Allen-Bradley 1756-L83E ControlLogix 5580 Processor

High-Capacity Controller With Maximum Memory & Connectivity

The Allen-Bradley 1756-L83E is a top-tier ControlLogix 5580 controller. This 1756-L83E processor delivers exceptional performance with massive memory capacity. It features advanced networking and full system redundancy support. Perfect for large-scale industrial applications requiring maximum processing power and reliability. Includes a 2GB SD card for expanded non-volatile storage.

Detailed Technical Data

• Brand: Allen-Bradley / Rockwell Automation
• Model: 1756-L83E ControlLogix Processor
• Series: ControlLogix 5580
• Module Type: Programmable Automation Controller
• User Memory: 10 Megabytes
• Non-Volatile Memory: 2 GB (SD Card Included)
• Max I/O Capacity: 128,000 points
• Max Analog I/O: 4,000 points
• EtherNet/IP Nodes: Up to 250 devices (with Studio 5000 v30+)
• Ethernet Speed: 10/100/1000 Mbps
• USB Speed: 12 Mbps (USB 2.0)
• Task Capacity: 32 simultaneous tasks
• Programs per Task: 1,000 programs
• Power Consumption: 6.2 Watts
• Heat Dissipation: 21.2 BTU/hour
• Isolation Voltage: 50 Volts Continuous
• Operating Temperature: 0 to 60°C (32 to 140°F)
• Weight: 0.25 kg (0.55 lb)
• Shock Resistance: 30G operational, 50G non-operational
• Vibration Resistance: 2G at 10-500Hz
• IP Addressing: Static or Dynamic (DHCP/BootP)
• Display: 4-character alphanumeric

What’s In The Box & Warranty

You will receive: One (1) 1756-L83E ControlLogix Controller and One (1) 2GB SD Card. This product is covered by a reliable 12-month warranty. We ship quickly worldwide using FedEx, UPS, and DHL.

Frequently Asked Questions

• Q: How many Ethernet devices can connect to this controller?
  A: It supports up to 250 EtherNet/IP nodes when using Studio 5000 version 30 or higher.
• Q: Does this controller support system redundancy?
  A: Yes, it provides full support for controller redundancy configurations.
• Q: What type of SD card is included?
  A: It includes a certified 2GB Rockwell Automation 1784-SD2 card designed for industrial use.
• Q: Can it communicate with older Allen-Bradley PLCs?
  A: Yes, it can message with PLC-5, SLC-500, MicroLogix, and CompactLogix controllers.
• Q: What networking protocols does it support?
  A: It supports EtherNet/IP, ControlNet, DeviceNet, Data Highway Plus, Remote I/O, and SynchLink.
