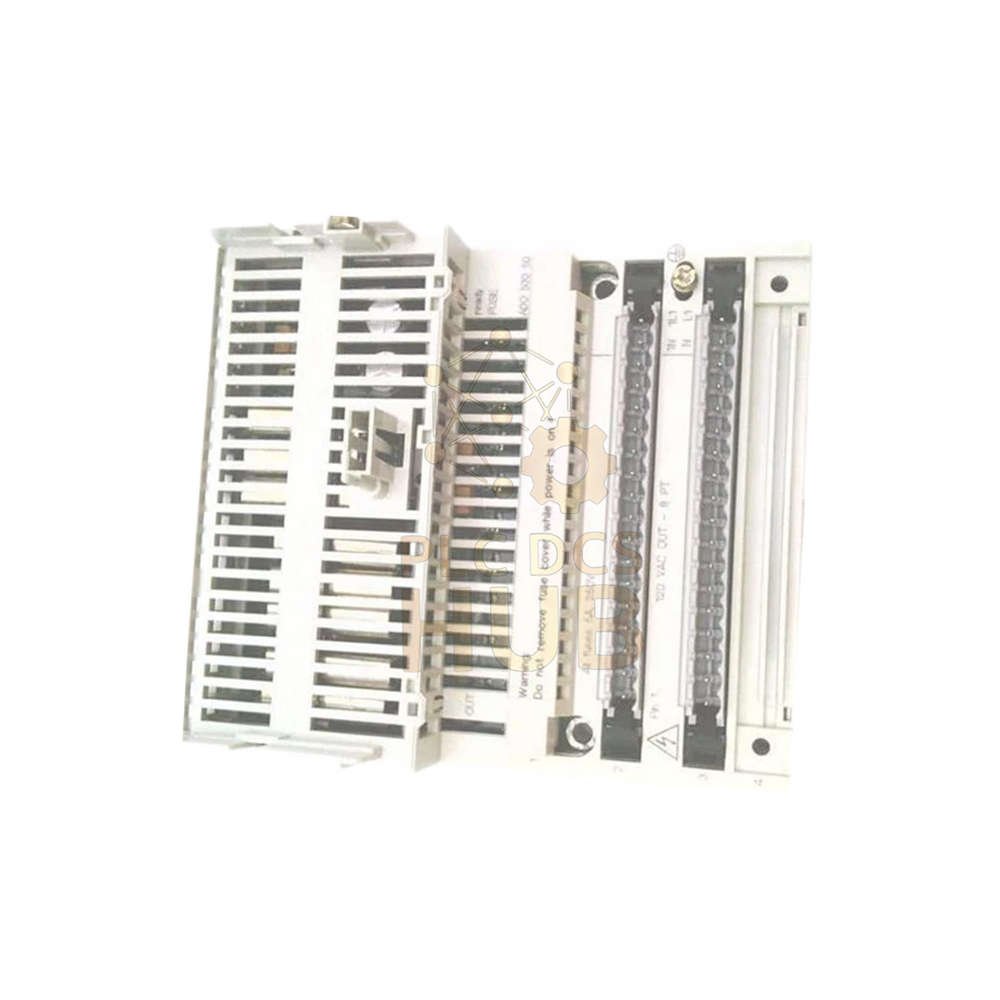

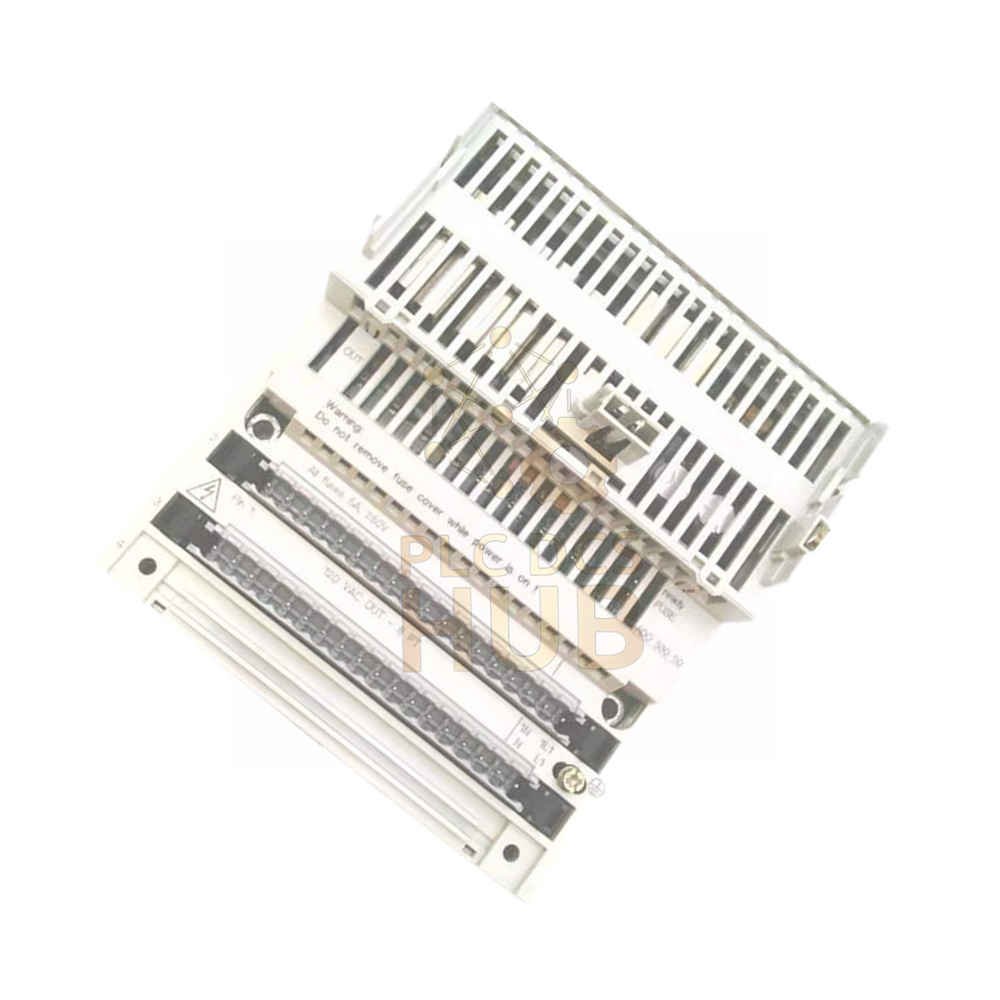

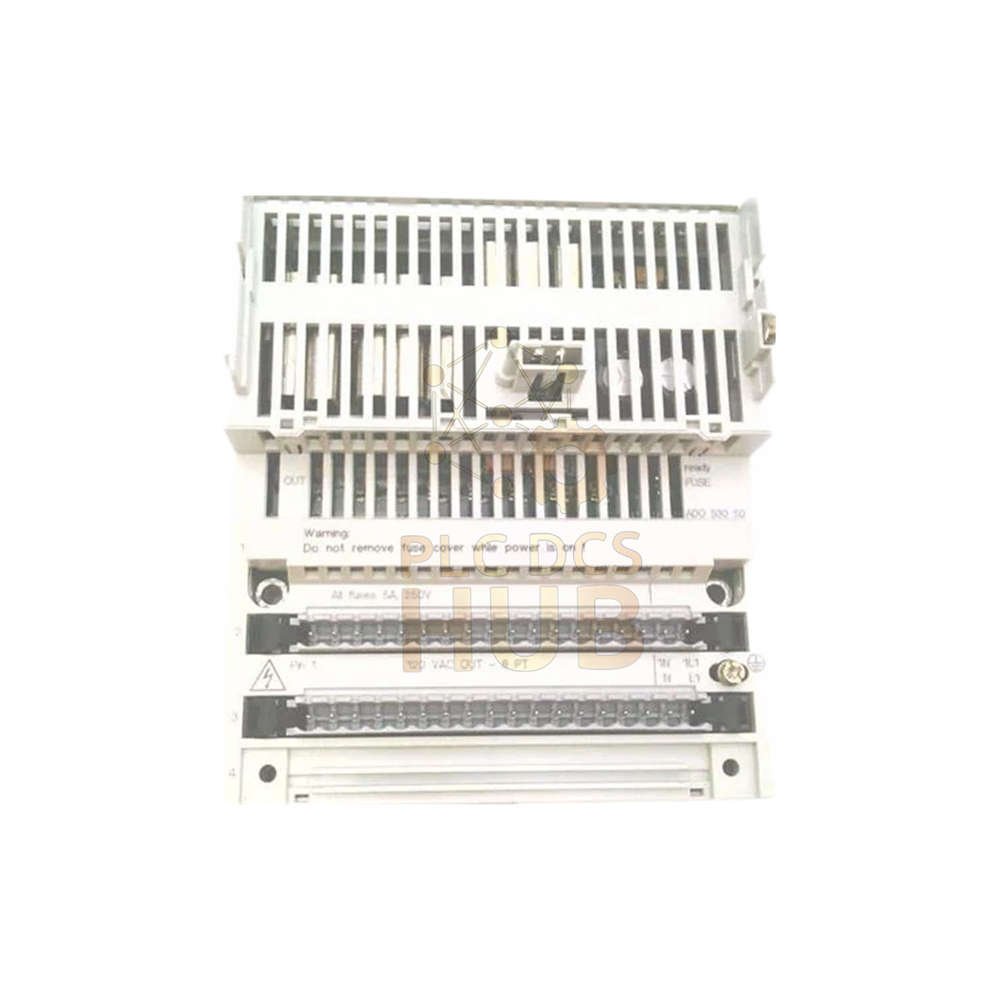

Schneider Electric 170ADO53050 – 8-Channel Triac Output Module for Momentum Series

The Schneider Electric 170ADO53050 is a discrete output module. It belongs to the Modicon Momentum product line. This module uses Triac technology for reliable AC load switching. Consequently, it suits industrial automation systems that need multiple 120V AC outputs. For engineers seeking robust control, this module delivers consistent performance.

Why Choose This Output Module

• Eight Triac outputs: Each handles 2A at 120V AC.
• High total current: 16A combined across all channels.
• Built-in protection: Internal fuses guard against short circuits and overloads.
• Fast response: 0.5 line cycle switching speed.
• Strong isolation: 1780V AC between channels for one minute.

Technical Data (Hierarchical View)

◆ Brand & Series
• Manufacturer: Schneider Electric
• Product Line: Modicon Momentum
• Part Number: 170ADO53050
• EAN: 3595861147553
• Module Type: Discrete Output Module

◆ Output Specifications
• Number of Outputs: 8
• Voltage Rating: 120V AC
• Output Technology: Triac
• Current per Channel: 2A
• Total Current Rating: 16A
• Minimum Output Current: 5mA
• Maximum Leakage Current: 1.9mA
• Maximum Voltage Drop: <1.5V at 2A

◆ Protection & Response
• Short-Circuit Protection: Internal fuse, 5A slow-blow per group
• Output Overload Protection: Internal fuse (per group)
• Surge Current Capability: 10A for 2 cycles, 15A for 1 cycle, 5A for 3 cycles
• Response Time: 0.5 line cycle (state 0 to 1 or 1 to 0)
• Channel Isolation: 1780V AC for 1 minute

◆ Power & Physical
• Power Dissipation: 6W typical, 7.5W maximum
• Weight: 0.45 kg (1.00 lbs)
• Compatibility: TSX Momentum I/O racks and adapters

Installation & Compatibility Notes

• First, mount the 170ADO53050 in a Momentum I/O rack or on a DIN rail with appropriate base.
• For best results, use copper wire rated for 75°C. Then tighten terminals to 0.5-0.6 Nm.
• Connect AC loads between output and neutral. Each output switches the hot line accordingly.
• This module works with all Momentum communication adapters (Ethernet, Modbus Plus).
• For larger systems, integrate it with Modicon Quantum PLCs using the appropriate adapter.
• Additionally, ensure the backplane provides adequate cooling. Keep ambient temperature below 60°C.

Typical Applications & Use Cases

• Controlling solenoid valves, contactors, and pilot lights in packaging lines. Likewise, it works for small motors.
• Switching AC fans and pumps in HVAC systems. Furthermore, it handles indicator panels.
• Actuating relays in material handling equipment. Similarly, it suits conveyor systems.
• Driving alarm lights in industrial control cabinets. Thus, it improves operator awareness.
• Retrofitting older AC output points in existing Momentum systems. Consequently, you avoid rewiring costs.

Diagnostic Capabilities & Troubleshooting

• First, check the module’s status LED on the front panel. Green indicates normal operation.
• If an output fails to turn on, verify the load current exceeds 5mA minimum. Otherwise, the Triac may not latch.
• Use a multimeter to measure voltage drop. A drop below 1.5V at 2A confirms healthy output.
• Blown internal fuse? Then replace the entire module. Fuses are not user-serviceable.
• For systematic testing, test each channel individually using a PLC forcing function. This approach isolates faults quickly.

Packaging, Warranty & Shipping

• Package includes: One Schneider 170ADO53050 module, quick start guide, and warranty card.
• Warranty: 12 months against manufacturing defects from invoice date.
• Shipping carriers: FedEx, UPS, DHL for fast global delivery. Moreover, express options are available.
• Typical transit time: 2 to 5 business days for stocked items. In contrast, heavy orders may take a week.
• Each unit ships in anti-static packaging inside a sturdy carton. Therefore, damage during transit is rare.

Selection & Purchasing Guide (Expert Advice)

• Choose the 170ADO53050 when you need 8 AC outputs with 2A per channel. For higher current (up to 5A), consider a relay output module instead.
• If you need DC outputs, select the 170ADO23000 (24V DC transistor module). Meanwhile, for mixed loads, use external relays.
• Always verify your load’s surge current does not exceed 15A for more than one cycle. Otherwise, the internal fuse may wear prematurely.
• Order a spare 170ADO53050 for critical production lines. This practice avoids costly downtime.
• Ask about bundle discounts when purchasing 5 or more output modules. Additionally, we offer volume pricing for system integrators.

Frequently Asked Questions (Professional & Practical)

• Q: Can the 170ADO53050 switch DC loads?
  A: No. This module uses Triac outputs designed only for AC loads (120V AC). For DC, use a transistor or relay module.
• Q: What happens if one output draws more than 2A?
  A: The internal fuse (5A per group) will blow if overload persists. However, staying within 2A per channel ensures reliable operation.
• Q: How do I know if the internal fuse has blown?
  A: The affected output group will stop switching. Unfortunately, the module has no blown-fuse indicator. Replace the module if you suspect a fuse failure.
• Q: Is the 170ADO53050 compatible with Modicon Quantum?
  A: Yes, through a Momentum adapter (e.g., 170ENT11000) or a Quantum-to-Momentum interface. The Modicon Quantum system can control it over a network.
• Q: What is the minimum load current required?
  A: The module needs at least 5mA per output to function correctly. Below this threshold, the output may not turn off fully. Thus, use a bleeder resistor for very light loads.
• Q: Does this module support hot swapping?
  A: No. Always power down the Momentum rack before inserting or removing the 170ADO53050. Otherwise, you risk damaging the backplane or the module.
• Q: What software configures the 170ADO53050?
  A: Use Schneider’s Concept or ProWORX 32. The module requires no special configuration – just I/O mapping. Nevertheless, confirm the rack power supply capacity.

Compliance & Safety Reminder

• The module meets CE, UL, and CSA standards for industrial control equipment. Therefore, it is accepted worldwide.
• Install inside a protected control cabinet. Keep away from moisture and conductive dust.
• Always follow local electrical codes when wiring 120V AC circuits. For safety, disconnect power before servicing.
• Disconnect all power before servicing the module or connected loads. Additionally, use proper lockout-tagout procedures.

Note: The 170ADO53050 provides no fuse status feedback. For critical applications, use external monitoring or a relay output module with diagnostics.
