Schneider 171CCC98020 Modicon Momentum Adaptor

Description

Product Overview

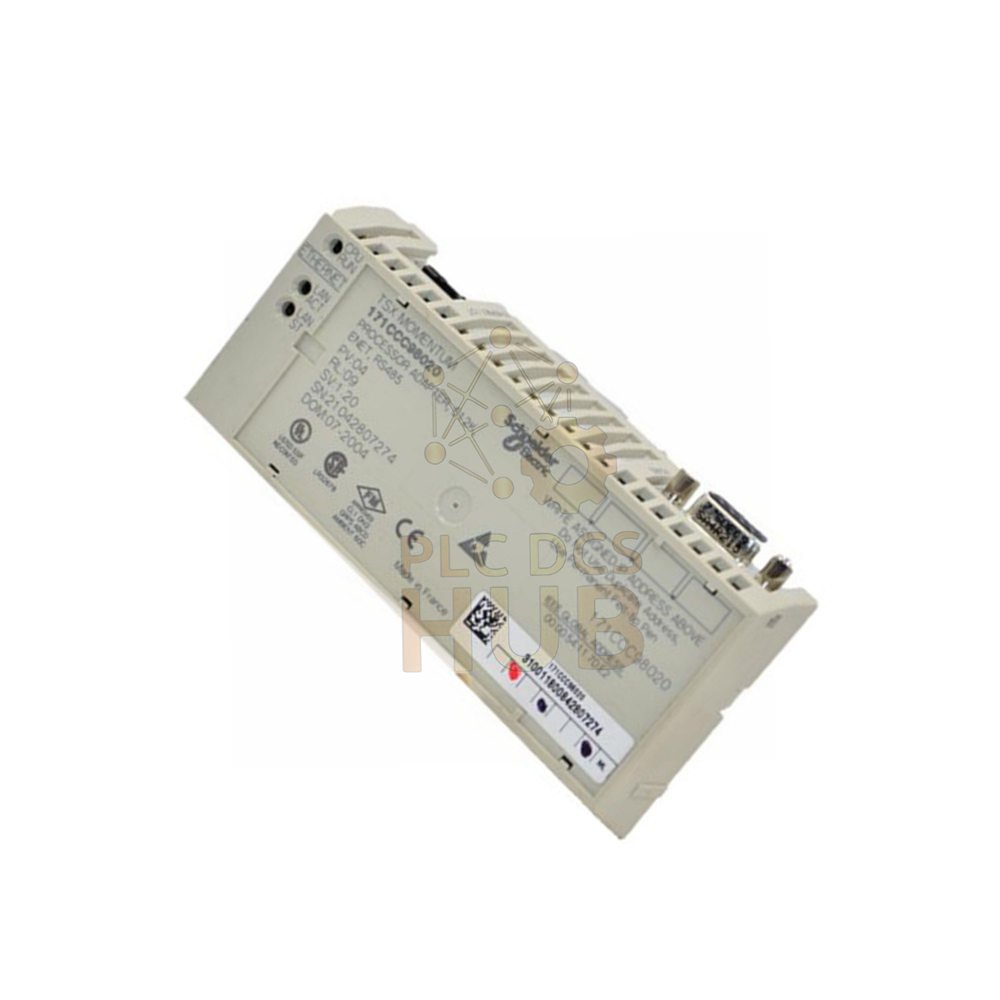

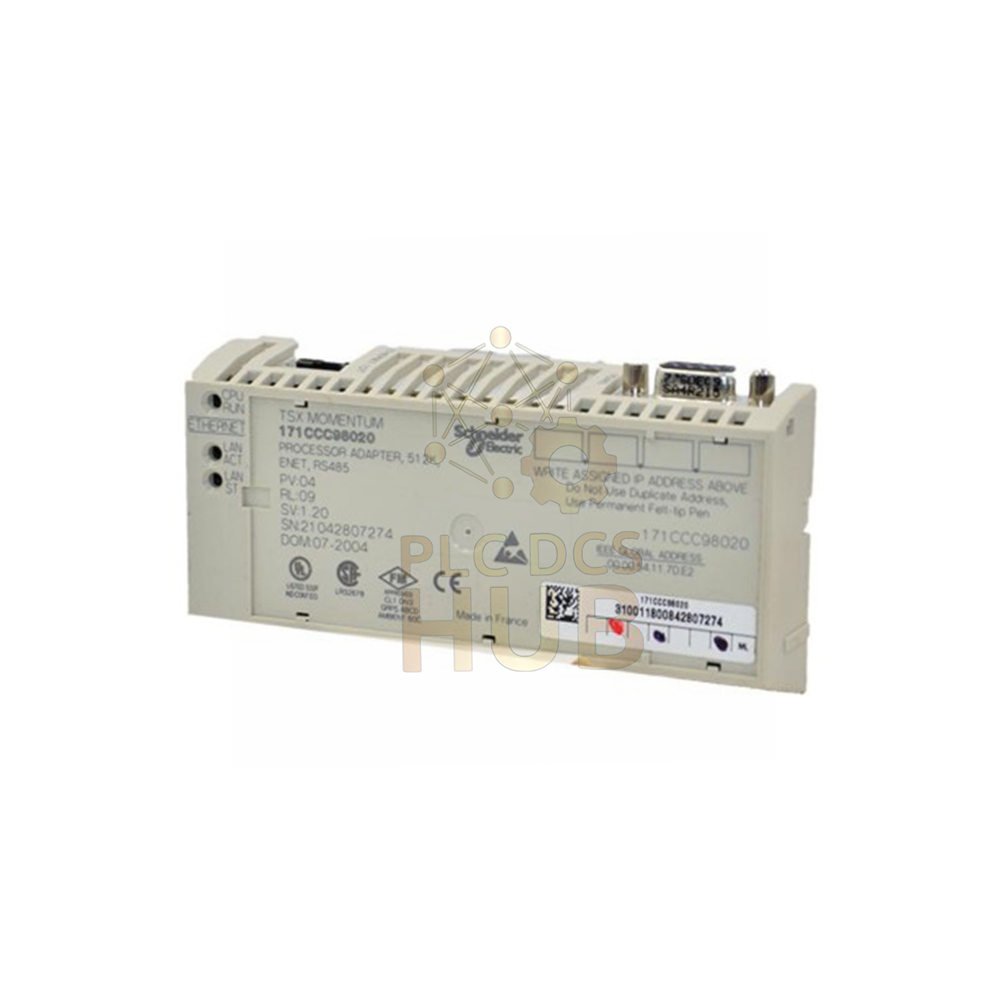

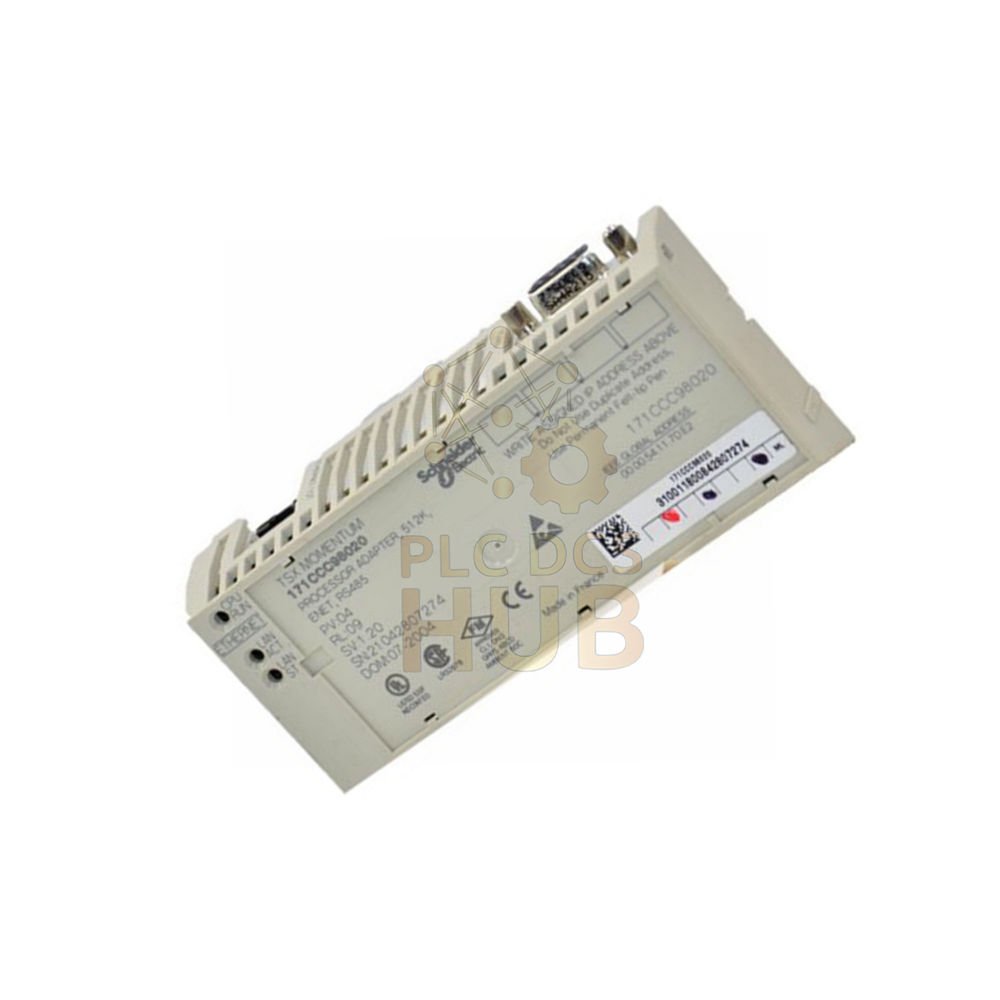

Schneider Electric 171CCC98020 is a processor adaptor module for the Modicon Momentum series. It enables strong communication in automation systems. The module supports both Ethernet and Modbus protocols. Built-in RAM ensures smooth data processing. This device suits diverse industrial control applications.

Key Features at a Glance

• Dual Protocol Support: Ethernet and Modbus in one module.
• Integrated RAM: Handles processing tasks efficiently.
• Lightweight Design: Weighs only 0.19 lbs (0.09 kg).
• CE Certified: Meets European safety standards.
• Wide Humidity Range: Works at 80% RH without condensation.
• Reliable Altitude Performance: Functions up to 1000 meters.

Technical Specifications

• Brand: Schneider Electric
• Model: 171CCC98020
• Series: Modicon Momentum
• Product Type: Processor Adaptor Module
• Communication Adaptor: Yes
• Ethernet Support: Yes
• Modbus Support: Yes
• RAM: Included (integrated)
• Weight: 0.19 lbs (0.09 kg)
• CE Marked: Yes

Environmental & Operating Conditions

• Operating Temperature: 0°C to 40°C (32°F to 104°F)
• Storage Temperature: 0°C to 40°C (typical range)
• Operating Humidity: Up to 80% RH, non-condensing
• Storage Humidity: Up to 80% RH, non-condensing
• Operating Altitude: Up to 1000 meters without derating
• Environment: Clean indoor areas, no corrosive chemicals

Technical Deep Dive (Performance Metrics)

• Measurement Range: Not applicable (communication processor)
• Frequency Response: Limited by Ethernet/Modbus baud rates
• Sensitivity: Standard industrial noise immunity
• Linearity: Not applicable (digital processor)
• Resolution: 16-bit internal processing
• Temperature Stability: Reliable from 0°C to 40°C
• Environmental Tolerance: 80% humidity, 1000m altitude
• Noise Immunity: Standard for Modicon Momentum series

Installation Guide

• Mount directly onto a Momentum I/O base.
• Ensure power is off before installation.
• Align the module with the base connectors.
• Push firmly until the latch clicks.
• Connect Ethernet cable to the RJ45 port.
• Power on and verify LED status indicators.
• No special tools required.

Debugging & Maintenance Convenience

• Check LED indicators for power and communication status.
• Use Modbus diagnostic tools to test connectivity.
• Restart the module to clear temporary errors.
• Firmware updates available through Schneider software.
• Clean with dry cloth every 6 months.
• No moving parts means low maintenance.

Compatibility Information

• Works with all Modicon Momentum I/O bases.
• Compatible with standard Ethernet networks.
• Supports Modbus TCP and Modbus RTU via gateway.
• Integrates with Modicon Quantum series through Ethernet.
• Software support: Concept, Modsoft, ProWORX.

Certifications & Standards

• CE Marked (Safety and electromagnetic compatibility)
• RoHS compliant (Restriction of Hazardous Substances)
• Meets industrial automation standards

Typical Application Scenarios

• Small to medium PLC control systems.
• Remote I/O monitoring via Ethernet.
• Modbus network integration.
• Factory automation lines.
• Building management systems.
• Retrofit projects for legacy Momentum systems.

Diagnostic Capabilities

• Built-in self-test on power-up.
• LED status indicators for power and link.
• Modbus exception codes for error tracking.
• Ping command tests Ethernet connectivity.
• Software tools read internal diagnostic registers.

Packaging List

• 1 x 171CCC98020 Processor Adaptor Module
• No cables or software included.
• No I/O base included (sold separately).
• Packaged in anti-static material.

Warranty & Shipping

• Warranty: 12 months from invoice date.
• Covers: Manufacturing defects only.
• Excludes: Water damage, lightning, misuse.
• Shipping Carriers: FedEx, UPS, DHL.
• Delivery Time: 3 to 7 business days worldwide.
• Tracking number provided for all orders.

Frequently Asked Questions (FAQ)

Q1: Does this module work alone or need a base?

It needs a Momentum I/O base. The base supplies power and I/O connections.

Q2: What is the difference between 171CCC98020 and 171CCC96030C?

The 171CCC96030C has 50MHz clock and 512KB memory. This model has RAM but no listed flash size. Check your application needs.

Q3: Can I use this with Modbus RS485 devices?

Yes. Use a gateway to convert Modbus TCP to Modbus RTU.

Q4: What happens above 1000 meters altitude?

Performance may derate. Schneider recommends staying at or below 1000m.

Q5: My module does not power on. What should I check?

First, verify the I/O base has 5V DC power.
Second, reseat the module on the base.
Third, test with a known working base.

Q6: Can I program this with free software?

Schneider’s EcoStruxure Machine Expert Basic may work. Check compatibility first.

Q7: Is this module still in production?

The Momentum series is legacy. We supply new and refurbished units with warranty.

Q8: How many I/O points can this handle?

That depends on the I/O base. Typical Momentum bases support up to 32 I/O per drop.

Selection Guide

• Choose 171CCC98020 if:
  You need basic Ethernet and Modbus communication.
  Your temperature stays between 0°C and 40°C.
  You want a lightweight, CE-certified module.
• Do not choose this if:
  You need high-speed processing (look for 50MHz models).
  Your environment exceeds 40°C.
  You require built-in flash memory for large programs.
• Better alternatives:
  For faster performance, choose 171CCC96030C (50MHz, 512KB flash).
  For Quantum series needs, see Modicon Quantum.
