Schneider Electric 140CFB03200 | 32-Point Fused Terminal Block Quantum

Description

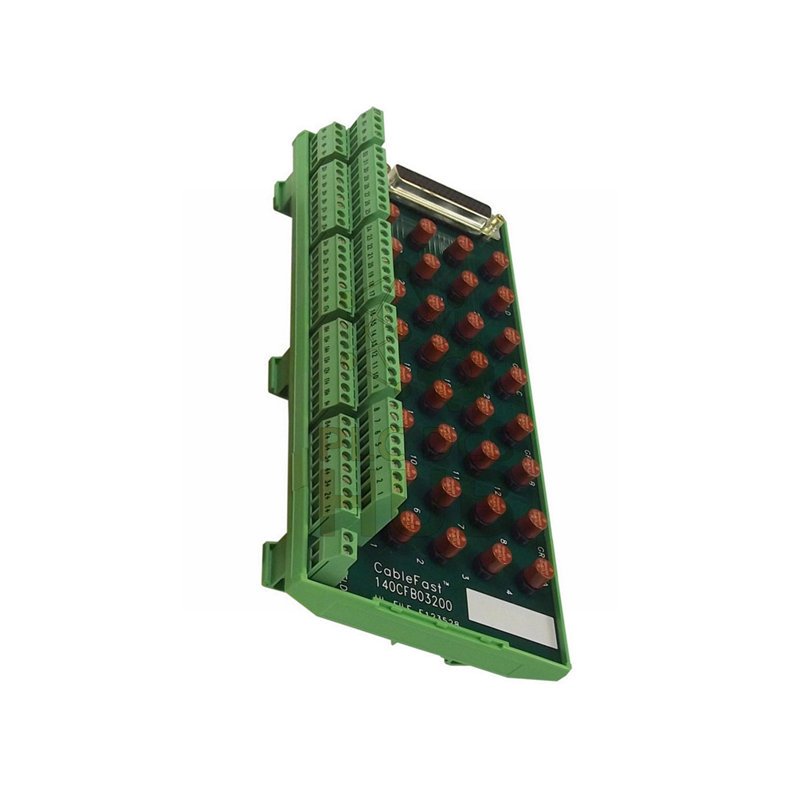

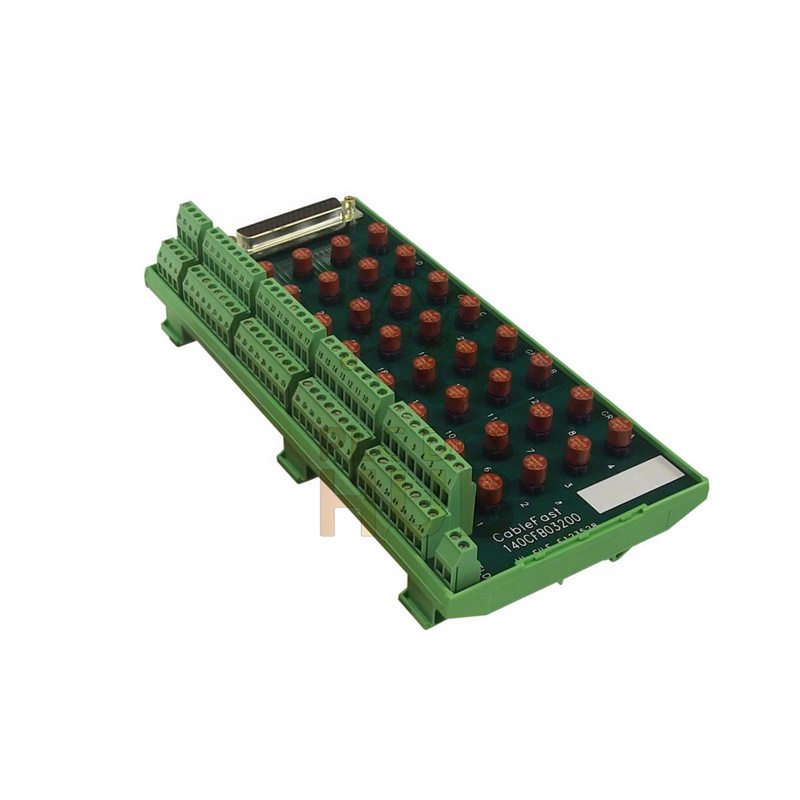

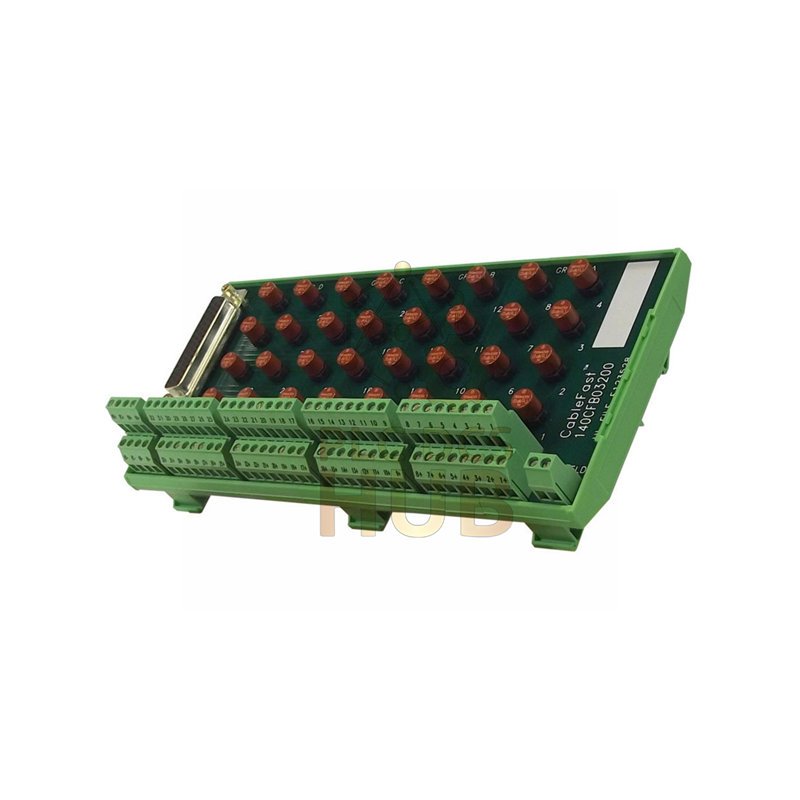

Schneider Electric 140CFB03200 Fused Terminal Block

The 140CFB03200 protects your Modicon Quantum I/O modules. This terminal block has 32 points with group fusing. It prevents single point failures from affecting other inputs. Essential for safe and reliable system operation.

Product Details

• Brand: Schneider Electric
• Model: 140CFB03200
• Type: Fused Terminal Block
• Points: 32 I/O points
• Use: Quantum I/O module protection

Key Features

• Group Fusing: 4 groups of 8 points each
• Failure Protection: Isolates single point failures
• Easy Wiring: Captive screw terminals
• Standard Mounting: Fits DIN rail
• Quick Connect: SUB-D 50 female connector

Technical Specifications

• Fuse Rating: 0.8A per group
• Configuration: 4 groups × 8 points
• Terminals: 2 terminals per point
• Mounting: Standard DIN rail
• Connection: SUB-D 50 female
• Compatible Modules: 140DDI35300, 140DAI35300, etc.

Compatible Modules

• 140DDO15310
• 140DAI55300
• 140DDI35300
• 140DAI45300
• 140DDI85300
• 140DAI35300

Installation Guide

• Mount on standard DIN rail
• Connect via SUB-D 50 connector
• Use captive screw terminals
• Follow group fusing arrangement

Support, Inquiry, Contact: +86 158 8020 0923

Download Documentation

• Complete installation guide available
• Wiring diagrams and specifications
• Download 140CFB03200 Manual PDF

Related Products

• Compare with: 140CFX00210 Replacement Jumpers
• Also see: 140CHS11000 Redundancy Module

FAQ

• How many points does it have?
  32 I/O points arranged in 4 groups of 8.
• What is the fuse rating?
  0.8A fusing protection for each group.
• Which modules does it work with?
  Compatible with 140DDI35300, 140DAI35300 and other Quantum I/O modules.
• How is it mounted?
  Standard DIN rail mounting for easy installation.
• What connector does it use?
  SUB-D 50 female connector for secure connection.

Package & Shipping

• Package Contents: One 140CFB03200 terminal block
• Package Size: 10.63″ × 7.09″ × 4.33″
• Shipping Weight: 22.75 oz (645 g)
• Shipping Methods: FedEx, UPS, DHL
• Warranty: 12-month coverage included
