Schneider Electric | Modicon M340 Processor Modbus Control – BMXP342000

Description

M340 Compact Processor

The BMXP342000 controls machines and processes. It handles many inputs and outputs. This processor works with Modbus communication.

Key Features

• Brand: Schneider Electric
• Model: Modicon M340 BMXP342000
• I/O Capacity: 1024 digital + 256 analog
• Speed: 4.2-5.4K instructions/ms
• Memory: 4MB total RAM
• Power: 72mA at 24V DC
• Weight: 0.4 lb light
• Temperature: 0°C to 60°C

Communication

• Modbus Support: RTU and ASCII modes
• RS232 and RS485 ports
• USB programming port
• 2 Ethernet modules possible
• 4 AS-Interface modules
• 32 devices per network

Memory Details

• Program Space: 3.5MB
• Data Storage: 256KB
• Memory Card: 8MB included
• Tasks: 32 event tasks
• Fast Processing: 0.18µs per instruction

Environment

• Protection: IP20 rating
• Humidity: 10-95% safe
• Hazardous Areas: Class I Division 2
• Certifications: CE, UL, CSA

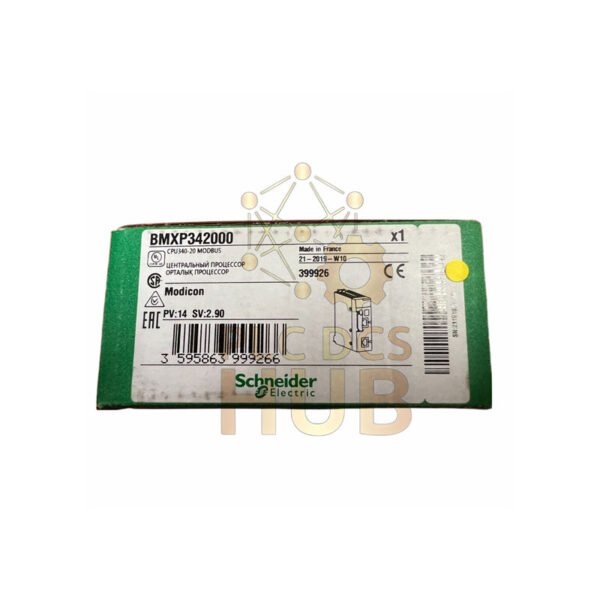

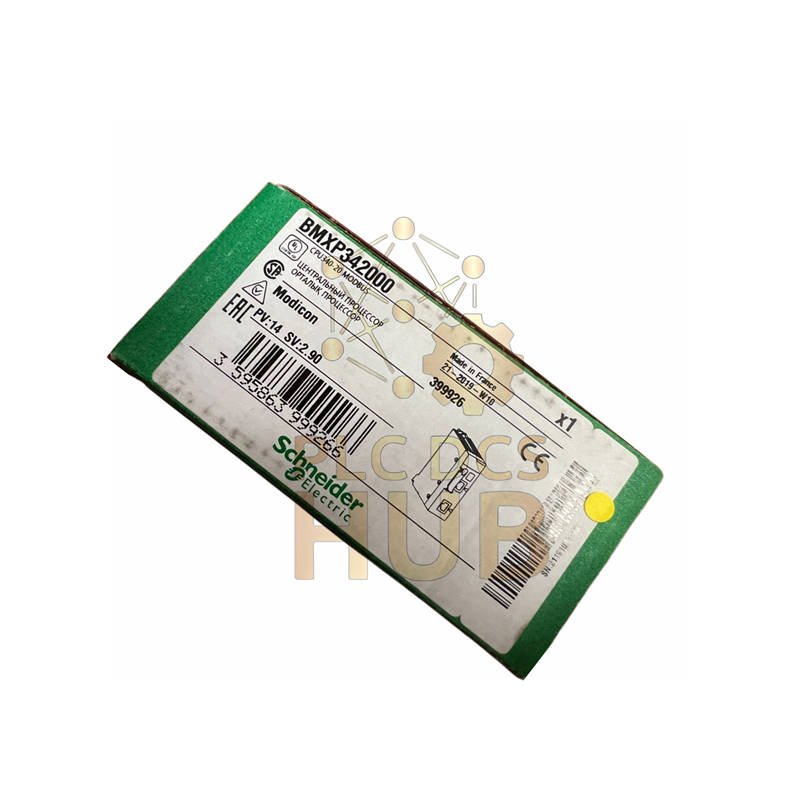

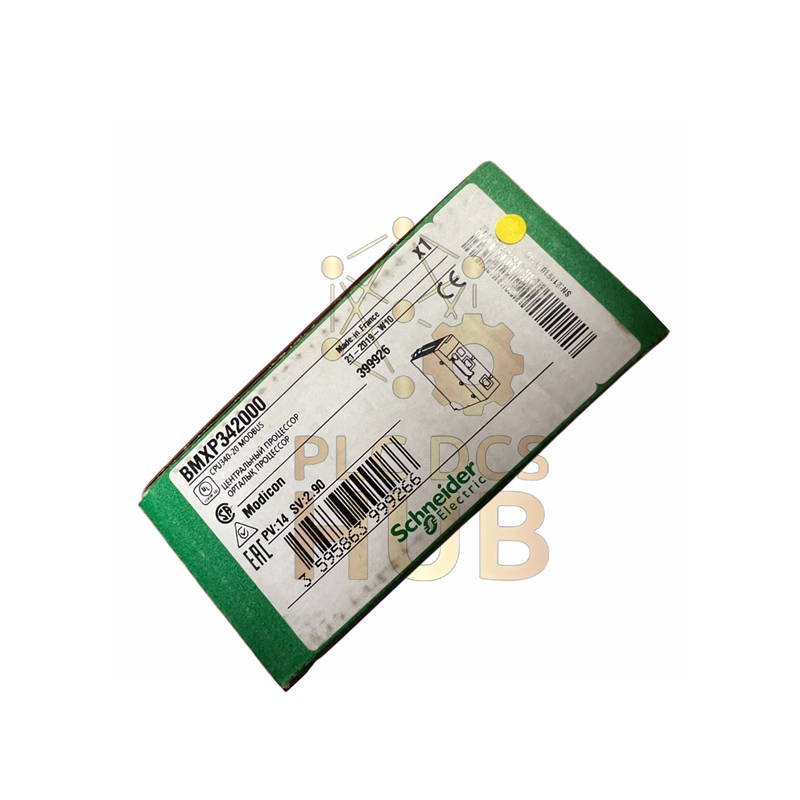

Packaging

• Single Box: 4.53″ x 4.33″ x 2.17″
• Weight: 8.5 oz
• Bulk Box: 15 units
• Shipping: FedEx, UPS, DHL

Setup

• Install in M340 rack
• Connect power
• Wire communication cables
• Check status lights
• Insert memory card

Questions

• How many devices can connect?Up to 32 devices on Modbus network.
• What memory card is included?8MB memory card for program backup.
• What communication ports are there?RS232, RS485, USB, and Ethernet options.
• How fast does it process data?5.4K instructions per millisecond maximum.
• What temperature range does it work in?It operates from 0°C to 60°C safely.

Support

• Get manual: Download PDF
• 12-month warranty
• Help available: Contact: +86 158 8020 0923
• Fast delivery
