Schneider Electric Modicon Quantum Discrete I/O Module | 140DDM39000

Description

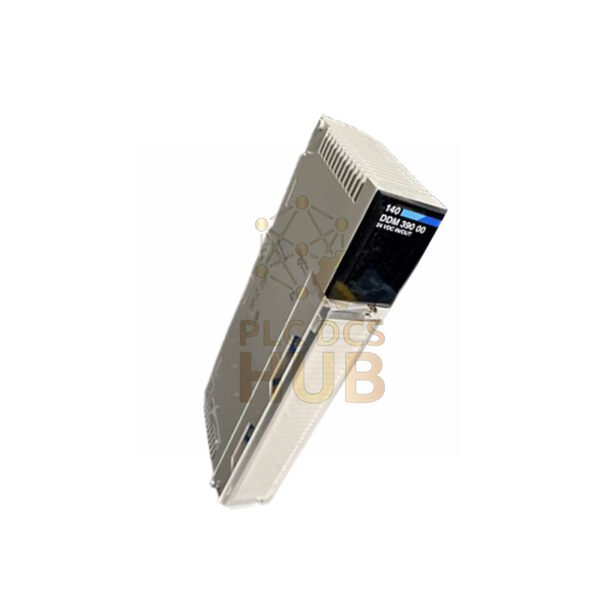

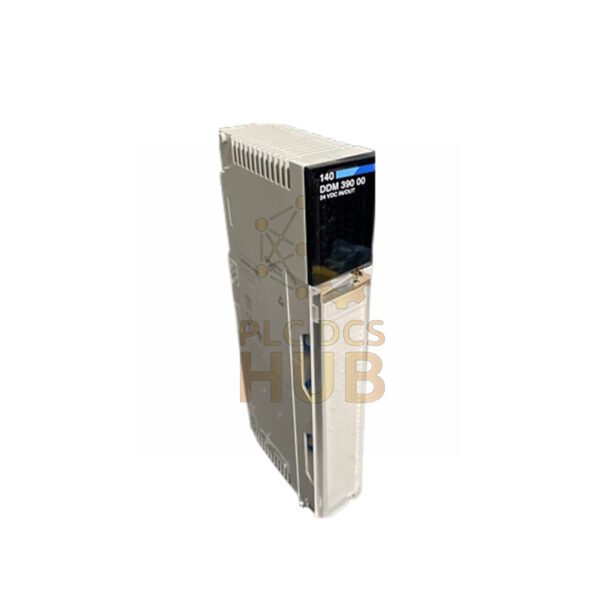

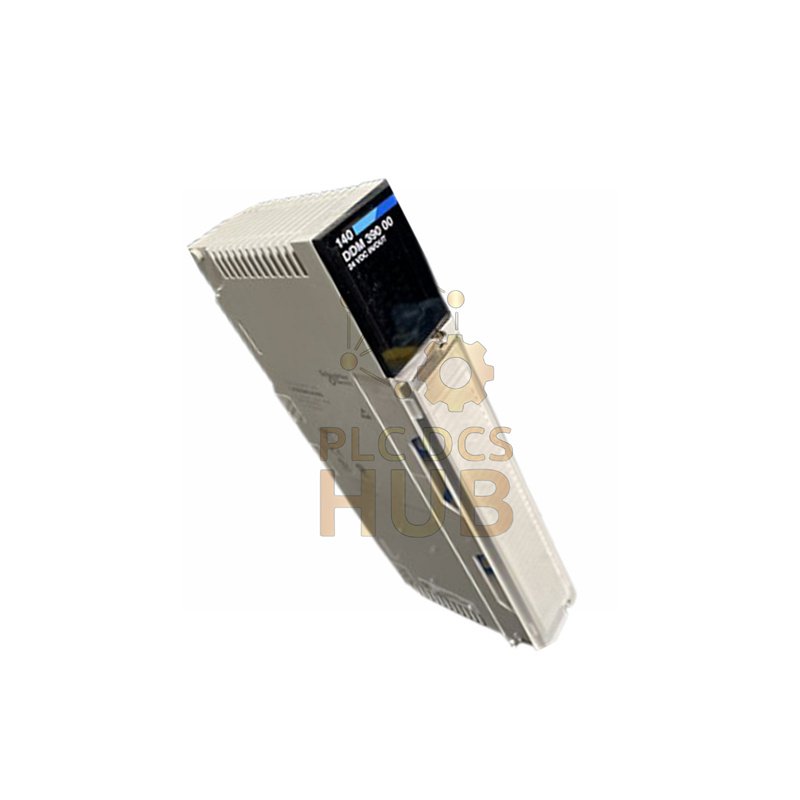

Schneider Electric Modicon Quantum 140DDM39000 Discrete I/O Module

The 140DDM39000 is a high-performance mixed discrete I/O module from the renowned Modicon Quantum automation platform. This robust module provides 16 discrete inputs and 8 solid-state outputs, all operating at 24V DC. It offers excellent reliability for demanding industrial control applications. For detailed wiring diagrams and full specifications, we encourage you to download the comprehensive manual here: Download Modicon Quantum Manual.

Key Technical Specifications

• Brand: Schneider Electric
• Model: 140DDM39000
• Product Type: Mixed discrete I/O module for Modicon Quantum.
• Discrete Inputs: 16 sink-type inputs, divided into two groups of 8.
• Input Voltage: 24V DC, with a state 1 guaranteed between 15-30V.
• Discrete Outputs: 8 solid-state sink outputs, arranged in two groups of 4.
• Output Current: Capable of up to 0.5A per point and a total of 4A per module.
• Response Time: Very fast, with less than 1 ms for both on and off states.

Installation and Power Details

• Addressing: Requires 1 input word and 0.5 output word in the controller configuration.
• Bus Current: The module needs 330 mA from the Quantum baseplate power supply.
• Power Dissipation: Calculate dissipation as 1.75 W plus load-dependent factors.
• Internal Fusing: Each output group has internal protection with a 5 A fuse rating.

For any technical Support or product Inquiry, please feel free to Contact: +86 158 8020 0923.

Packaging and Shipping Information

• Unit Package: Each 140DDM39000 module comes individually packed (PCE).
• Package Dimensions: 12.28 x 6.42 x 1.77 inches (31.2 x 16.3 x 4.5 cm).
• Master Carton: A larger box (S03) contains 7 units for bulk orders.
• Shipping: We ship globally via reliable carriers like FedEx, UPS, and DHL.

Frequently Asked Questions (FAQ)

• What is the logic type for this module? The 140DDM39000 uses sink logic for both its inputs and outputs.
• What is the maximum load per output point? Each solid-state output can handle a maximum of 0.5 A.
• Does it support high inductance loads? Yes, it can drive loads up to 500 mH at 4 Hz.

Need more information? For any Inquiry, our Support team is ready to assist. Contact: +86 158 8020 0923.
