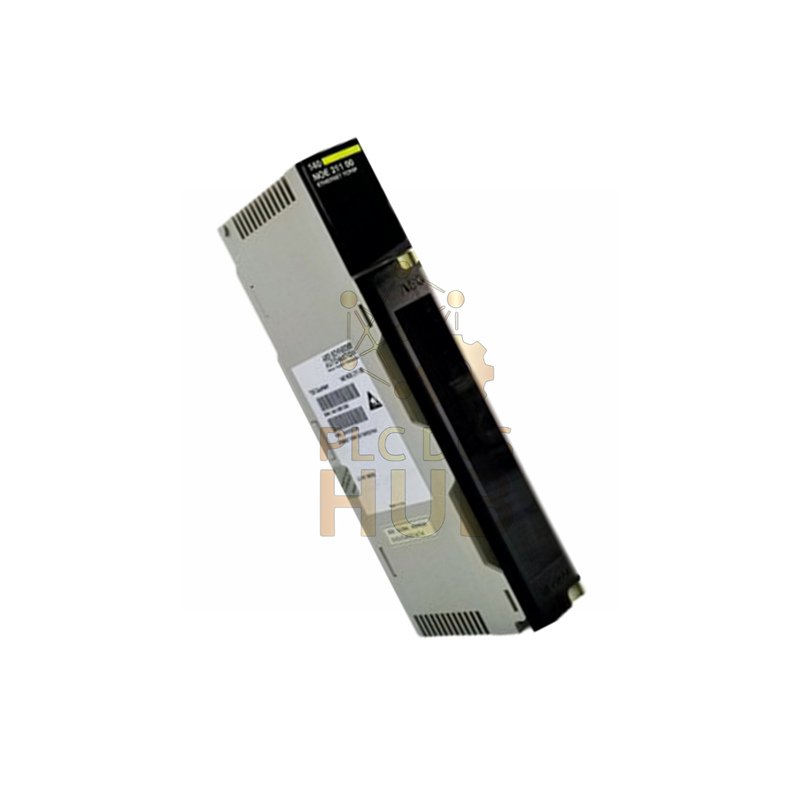

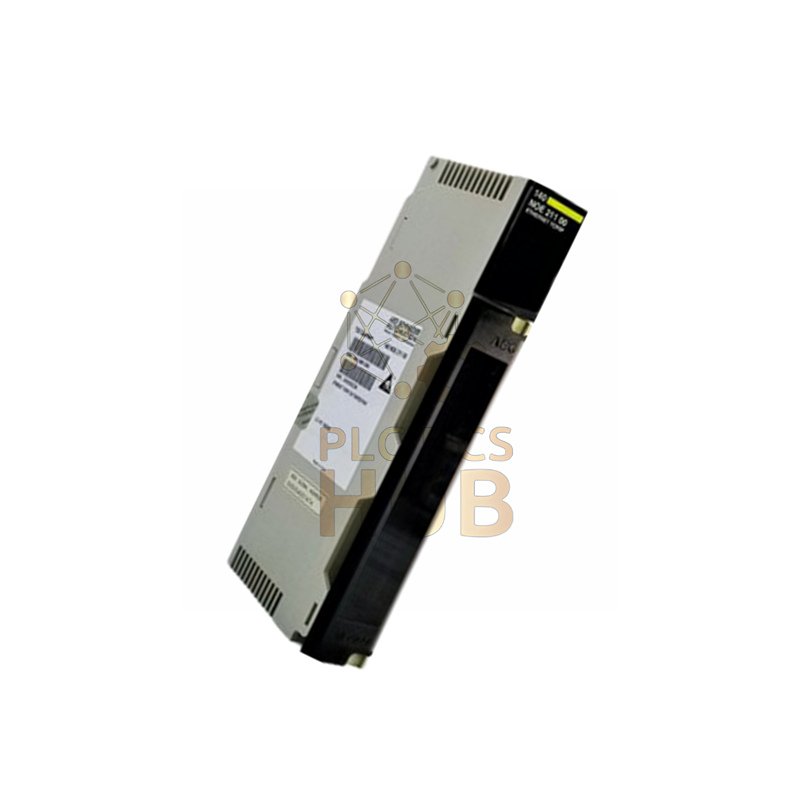

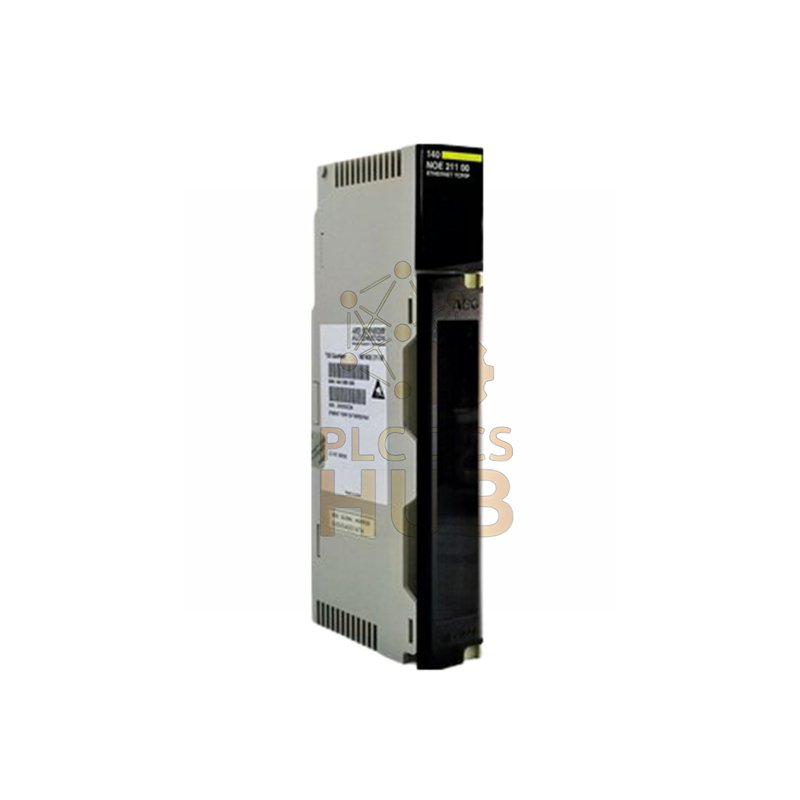

Schneider Electric Quantum – 140NOE21110 Ethernet Communication Module

Description

Schneider Electric 140NOE21110 Ethernet Communication Module

The 140NOE21110 provides network connectivity for Modicon automation systems. This module features both Ethernet and serial communication ports. It enables reliable data exchange in industrial environments. Download the complete installation guide: Download Network Manual.

Communication Features

• Brand: Schneider Electric
• Model: 140NOE21110
• Ethernet Port: 1 x 10/100 Mbps auto-negotiation
• Serial Port: 1 x RS232 for legacy devices
• Protocol: Modbus TCP/IP and serial communication
• Voltage: 5V DC operation from baseplate
• Power: 3.5W maximum power consumption

Physical Specifications

• Dimensions: 100mm H x 40mm W x 130mm D
• Weight: 0.3 kg lightweight design
• Mounting: Standard Quantum module format
• Operating Temp: 0°C to 60°C industrial range
• Storage Temp: -40°C to 85°C wide range
• Humidity: 5% to 95% non-condensing

Installation & Networking

• Easy plug-in installation to Quantum rack
• LED indicators for network status
• Supports up to 1000 meters altitude
• Industrial-grade components
• UL and CE certifications included
• Simple configuration via software

Need networking help? Contact: +86 158 8020 0923 for technical support.

Shipping & Warranty

• Shipping: FedEx, UPS, DHL available worldwide
• Delivery: Express shipping options
• Warranty: 12-month quality guarantee
• Packaging: Protective industrial packaging
• Support: Technical assistance provided
• Returns: Standard return policy applies

Network Module FAQ

• What protocols does this module support?
  It supports Modbus TCP/IP over Ethernet and Modbus RTU over RS232.
• Can I connect to existing networks?
  Yes, the 10/100 Mbps port auto-negotiates with standard switches.
• What software is needed for configuration?
  Use Unity Pro or other Modicon programming software.
• How many devices can connect simultaneously?
  Multiple clients can connect to the Modbus TCP server.
• Is the RS232 port isolated?
  Yes, it provides electrical isolation for safety.

Technical inquiry? Contact: +86 158 8020 0923 for quick answers.
