Schneider Electric Quantum Output Module – 16 Point AC | 140DAO84220

Description

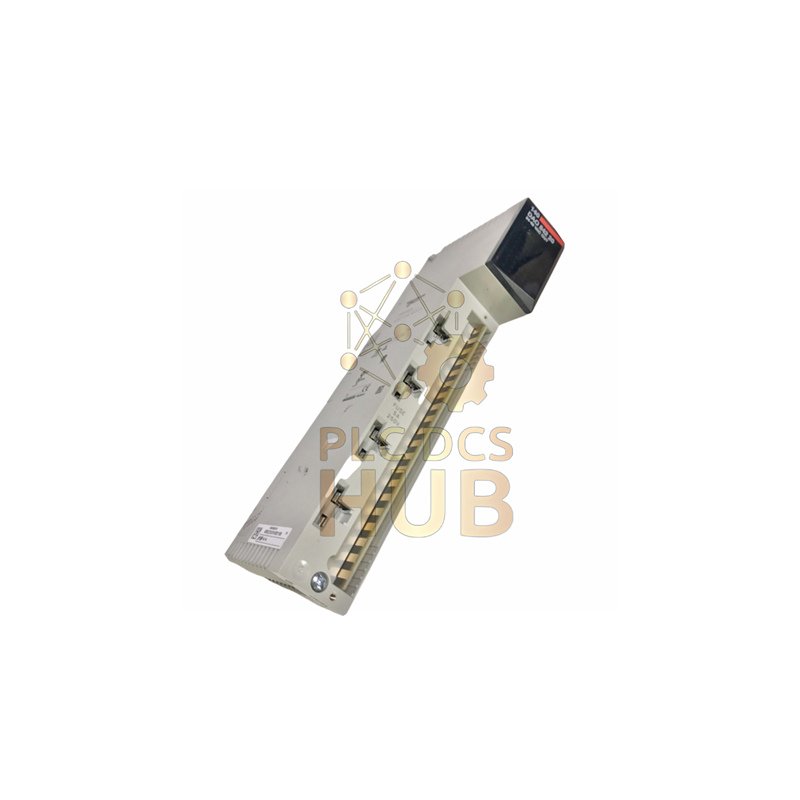

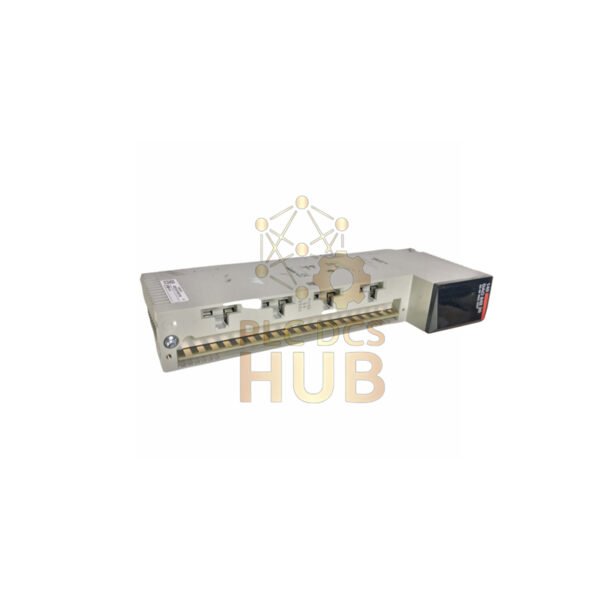

Schneider Electric 140DAO84220 AC Output Module

The 140DAO84220 controls AC loads for Modicon Quantum systems. This output module drives 16 points from 20-56V AC. It offers fast response and built-in protection.

Product Details

• Brand: Schneider Electric
• Model: 140DAO84220
• Type: AC Output Module
• Outputs: 16 points
• Voltage: 20-56V AC
• Frequency: 47-63 Hz
• Response Time: ≤0.5 ms
• Weight: 0.45 kg

Key Features

• 16 output channels
• 4 groups of 4 outputs
• Fast 0.5ms switching
• 5A fuse protection
• LED status indicators
• RC filter included

Electrical Specifications

• Output Current: 4A per point
• Module Current: 16A total
• Surge Current: 45A for 1 cycle
• Voltage Drop: 1.5V maximum
• Bus Current: 350 mA required

Installation Guide

• Mount in Quantum rack
• Connect load wiring
• Check fuse status
• Test all outputs
• Download manual here

Package Contents

• One 140DAO84220 module
• Secure packaging
• Quick shipping available

Shipping Options

• FedEx Express
• UPS Worldwide
• DHL International

Related Products

• 140NOM21200 Adapter
• 140NOM25200 Fiber Adapter

Frequently Asked Questions

• How many output points?
  16 discrete AC outputs.
• What voltage range?
  20-56V AC operation.
• What is the response time?
  0.5 milliseconds switching.
• What protection features?
  5A fuses and RC filters.
• How are outputs grouped?
  4 groups of 4 channels each.
