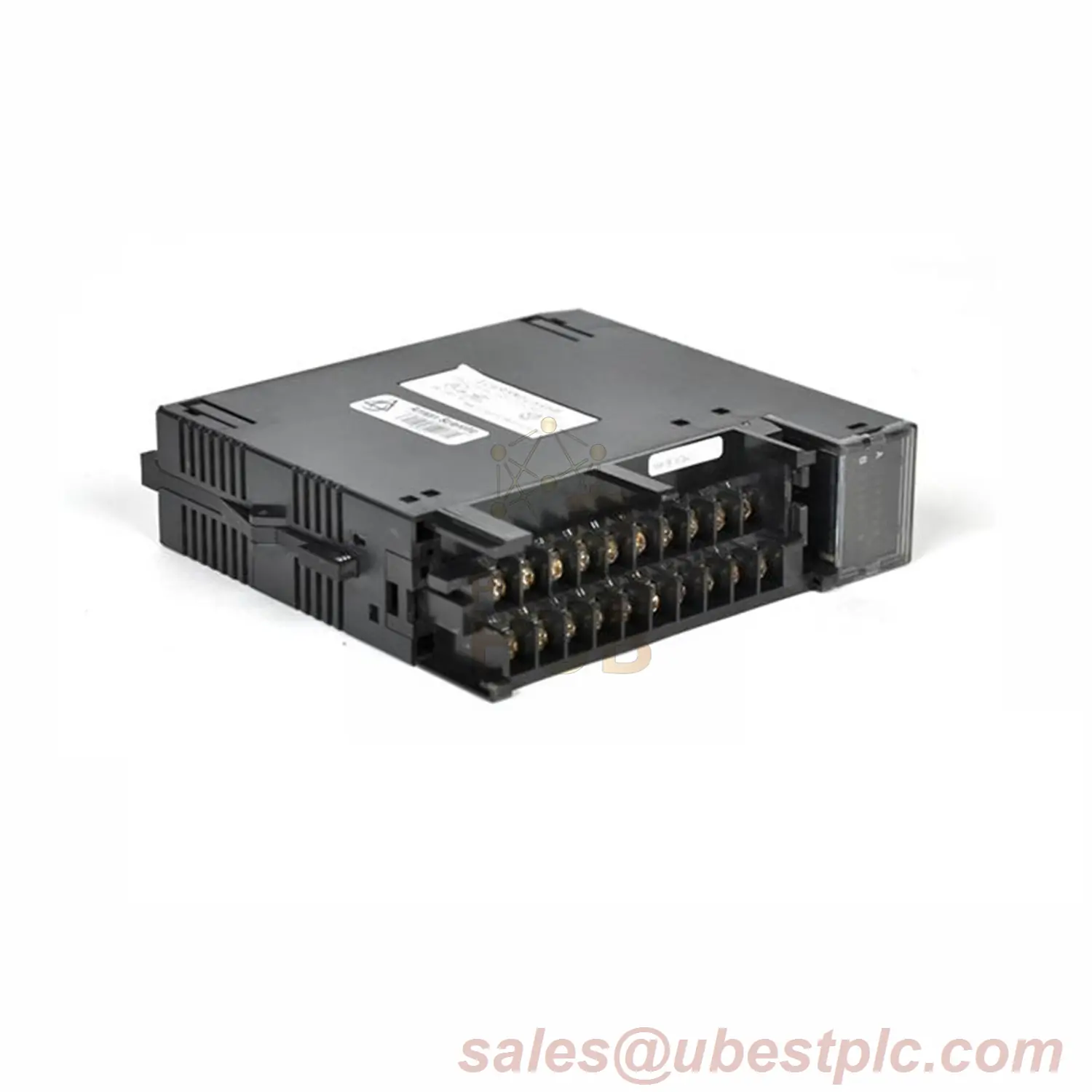

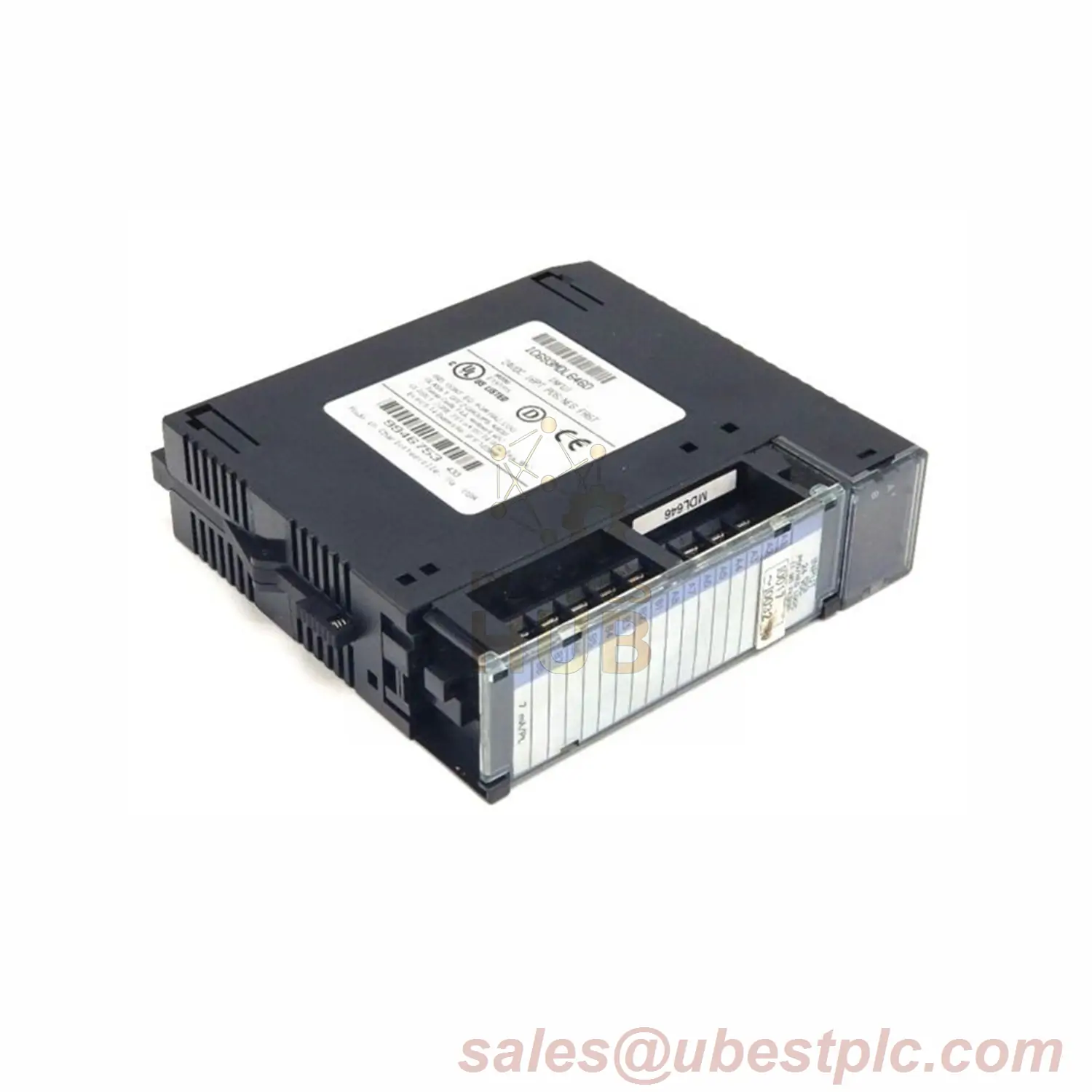

GE IC693MDL655 32-Point Input Module
High-Density Input Control
Optimize your Series 90-30 PLC with the IC693MDL655 32-point input module. Features four isolated groups for flexible signal management in demanding industrial environments.
Technical Specifications
| Brand | GE Fanuc |
| Model | IC693MDL655 |
| Input Points | 32 discrete inputs (4×8 groups) |
| Voltage Range | 0-30V DC |
| Response Time | 2ms max (ON/OFF) |
| Isolation | 1500V (field/logic) 250V (between groups) |
| Current Draw | 7.0mA @24V DC (typical) |
| Connectors | Two 24-pin (Fujitsu FCN-365P024-AU) |
Installation Guide
- Power off Series 90-30 PLC
- Insert module into any I/O slot
- Connect field devices using 24-pin connectors
- Verify LED status lights for each input
Compatibility
Designed for Series 90-30 PLC systems (5/10-slot baseplates). Not compatible with Series 90-70.
Packaging Includes
- IC693MDL655 Input Module
- Mounting hardware
- Installation documentation
- 12-month warranty (certificates excluded)
Global Shipping
Express delivery via FedEx, UPS, DHL. Trackable worldwide.
FAQ
Q: How many isolated groups?
A: Four groups of eight inputs each.
Q: Minimum ON voltage?
A: 11.5V DC minimum to activate input.
Q: Cable options?
A: Use pre-wired IC693CBL327/328 or custom cables.
