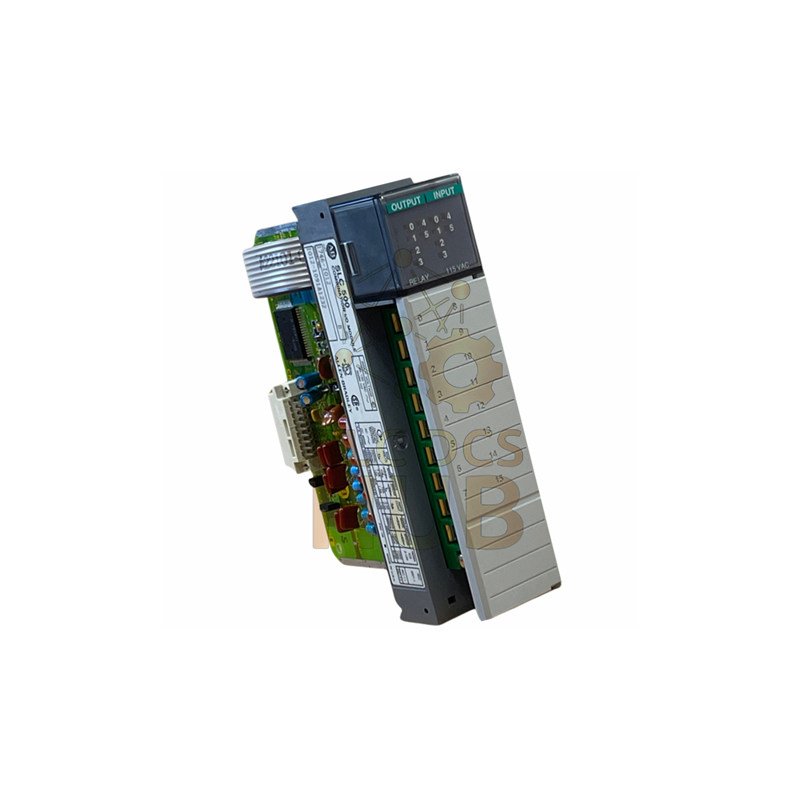

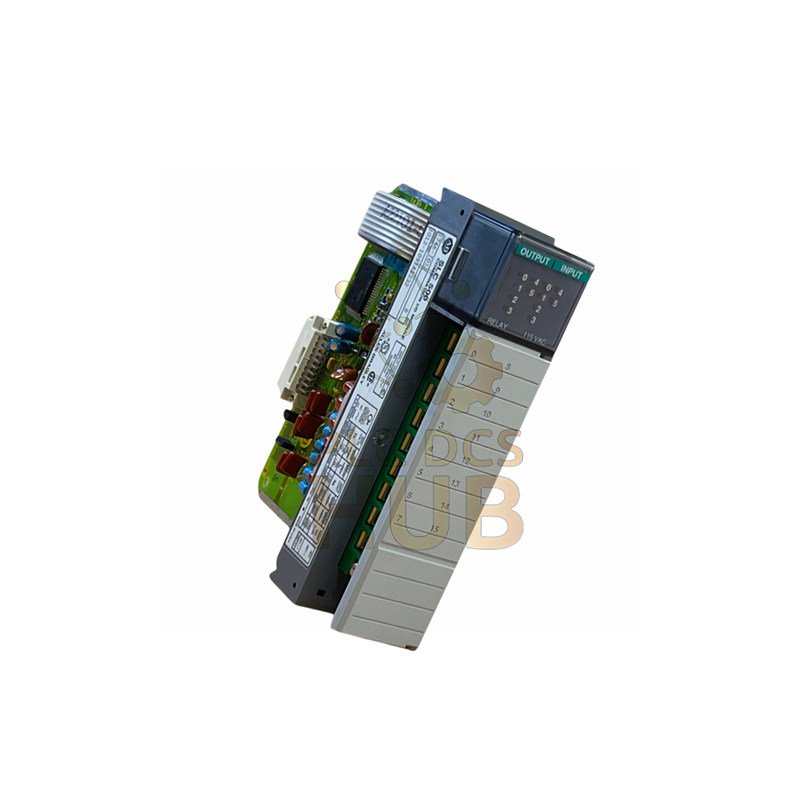

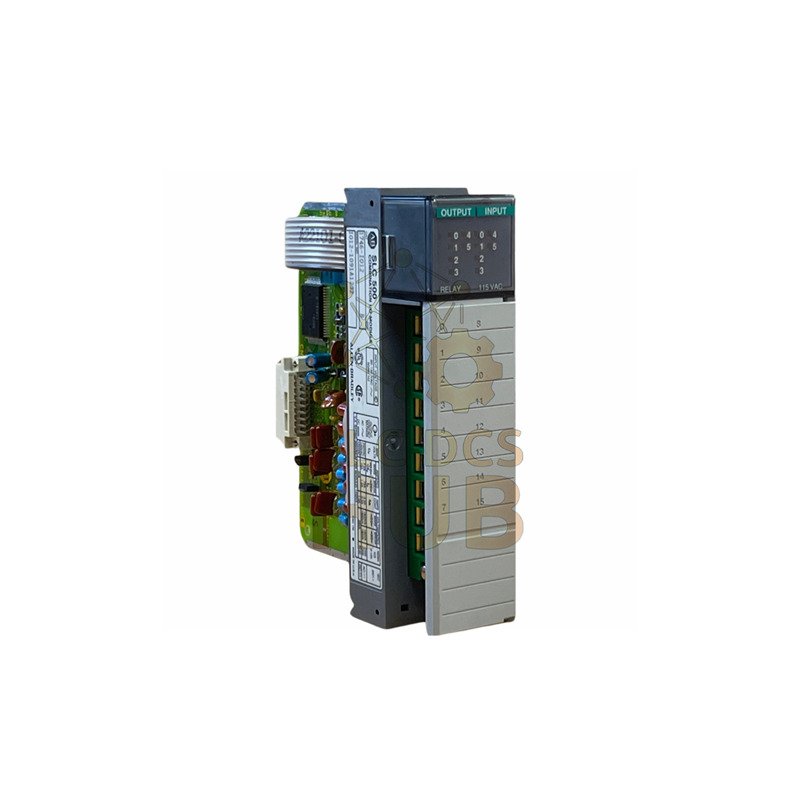

Allen-Bradley 1746-IO12: 6 Input/6 Output Combination Module
Meet the Allen-Bradley 1746-IO12, a versatile combo module for your SLC 500 system. It packs six 120V AC inputs and six relay outputs into one slot. This saves space and cost. It is perfect for controlling motors, lights, and more in a compact setup.
Complete Technical Data
- Brand: Allen-Bradley
- Model: 1746-IO12
- Series: SLC 500
- Module Type: Digital I/O Combination
- Input Channels: 6
- Input Voltage: 85-132 VAC
- Output Channels: 6 Relay (Form A)
- Output Rating: 2.0A @ 120VAC / 1.2A @ 24VDC
- On/Off Delay: 35ms / 45ms
- Backplane Current: 90mA @ 5V DC
- Power Dissipation: 4.60 W
- Work Temperature: 0 to 60°C (32 to 140°F)
What’s In The Box?
- One (1) 1746-IO12 Module
12 Month Warranty
We promise a 12-month warranty on this product. It covers any defects in materials or workmanship.
We Ship Fast
We ship quickly using FedEx, UPS, and DHL. Your order will be on its way fast.
Download The Manual
Get the full manual to learn more about wiring and specs:
- Learn how to wire the module.
- See full technical specifications.
- Understand installation steps.
- Download Now
Frequently Asked Questions
- Q1: What does “Form A” mean for the outputs?
- A1: Form A means the relay contacts are Normally Open (N.O.) when the module is off.
- Q2: Can I use the outputs for DC and AC voltage?
- A2: Yes. The relay outputs can switch both AC (up to 240V) and DC (up to 125V) power.
- Q3: What is the maximum current each output can handle?
- A3: Each output can handle 1.5 amps at 120V AC or 1.2 amps at 24V DC.
- Q4: How many slots does this module need?
- A4: Just one slot in your SLC 500 chassis.
- Q5: Is this module isolated?
- A5: Yes, it has optical isolation between the I/O and the backplane for safety.
