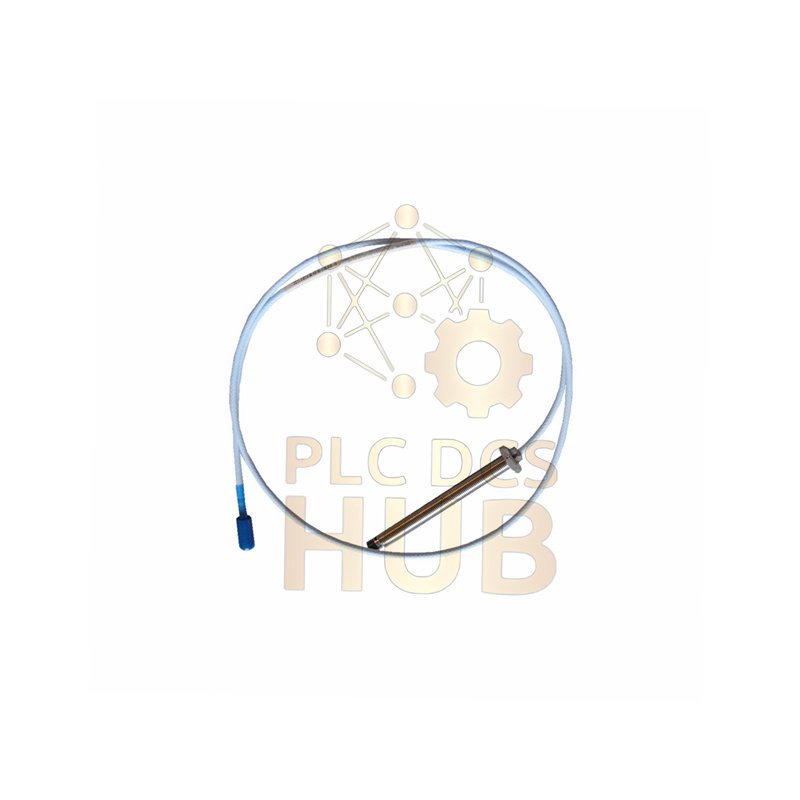

Introducing the Bently Nevada 330103-03-06-05-02-00. This is a compact 3300 XL 8 mm Proximity Probe. It features a short 60mm case and a 0.5-meter cable. Perfect for space-limited vibration monitoring on metric machinery.
Decoding Your Probe’s ID
Every part of the model number 330103-03-06-05-02-00 tells a story:
- Series & Type: 330103
- This identifies: 3300 XL 8mm Probe, M10x1 thread, standard design.
- Dimension A: -03
- This specifies: A 30 mm smooth (unthreaded) section at the tip.
- Dimension B: -06
- This defines: A total case length of 60 mm.
- Cabling: -05
- This means: Integrated cable length is 0.5 meters (1.6 ft).
- Connection: -02
- This indicates: Standard ClickLoc connector (no protective cap).
- Compliance: -00
- This confirms: Base model, no agency approvals included.
Key Advantages
- Short & Sturdy: 60mm case fits where longer probes cannot.
- Metric Ready: M10x1 thread for direct installation.
- Neat Installation: Short 0.5m cable avoids messy excess.
- Robust Build: 8mm stainless steel body and PPS tip for durability.
- For different mounting styles, see 3300 NSv Probes.
Essential Technical Data
- Manufacturer: Bently Nevada
- Product Line: 3300 XL Vibration Monitoring
- Performance
- Linear Range: 2.0 mm (80 mils)
- Optimal Gap: Set to -9 Vdc output.
- Probe Resistance (0.5m): 7.45 Ω ± 0.50 Ω
- Physical Specifications
- Thread: M10 x 1
- Case: 60mm total (30mm unthreaded + 30mm threaded)
- Materials: Stainless Steel Case, PPS Tip, Viton® Seal
- Installation Torque (Critical)
- Full Threads: 11.2 N•m max (100 in•lbf) recommended.
- First 3 Threads: 7.5 N•m max (66 in•lbf) recommended.
- Do not exceed maximum rated torque.
- Environmental Ratings
- Temperature: -52°C to +177°C standard operation.
- Storage Warning: Keep above -34°C to protect seal.
- Humidity: Excellent stability (<3% change).
- Safety System Use: Suitable for ia or nA/ec intrinsically safe loops with proper external barriers.
Simple Installation Guide
- Clean the M10x1 mounting hole.
- Hand-tighten the probe, then use a torque wrench.
- Do not overtighten. Follow the recommended torque values above.
- Connect the ClickLoc connector securely to the extension cable.
Package & Guarantee
- Includes: One 3300 XL 8mm probe, ready for installation.
- Warranty: Full 12-month manufacturer warranty against defects.
- Shipping: Reliable express options via FedEx, UPS, or DHL.
- Expert Support: Get instant help on WhatsApp: +86 158 8020 0923.
Professional FAQ
What is the purpose of the 30mm unthreaded section?
It acts as a pilot or alignment section. It centers the probe in the mounting hole before the threads engage. This ensures the tip is perpendicular to the target shaft.
Why are there two different torque specifications?
The first three threads are more delicate. You must use a lower torque (7.5 N•m) when starting. Once fully engaged, you can apply the higher torque (11.2 N•m) to the probe’s hex flats.
Can this probe be used in a T3 temperature class system?
Yes. When integrated into an approved intrinsic safety system, this probe can satisfy requirements for Temperature Class T3 (ambient up to +120°C). Refer to the temperature schedule for details.
How do I know if I need the “-02” or “-01” connector option?
Choose -02 (this model) for standard use where the connector is immediately plugged in. Choose -01 if the probe will be stored or shipped before use, as it includes a protective cap.
What’s a critical pre-installation check for short-case probes?
Measure the depth of your mounting hole. For this 60mm probe, ensure the hole is deep enough for the threads to fully engage (up to 15mm) but not so deep that the tip cannot reach the required gap from the shaft. A simple depth gauge check prevents installation errors.
Selection Checklist
- Verify your equipment uses M10x1 metric threads.
- Confirm the 60mm case length fits your available space.
- The 0.5m cable is ideal for nearby junction boxes.
- For hazardous areas, plan for an external safety barrier system.
- All purchases include warranty and trusted global shipping.
