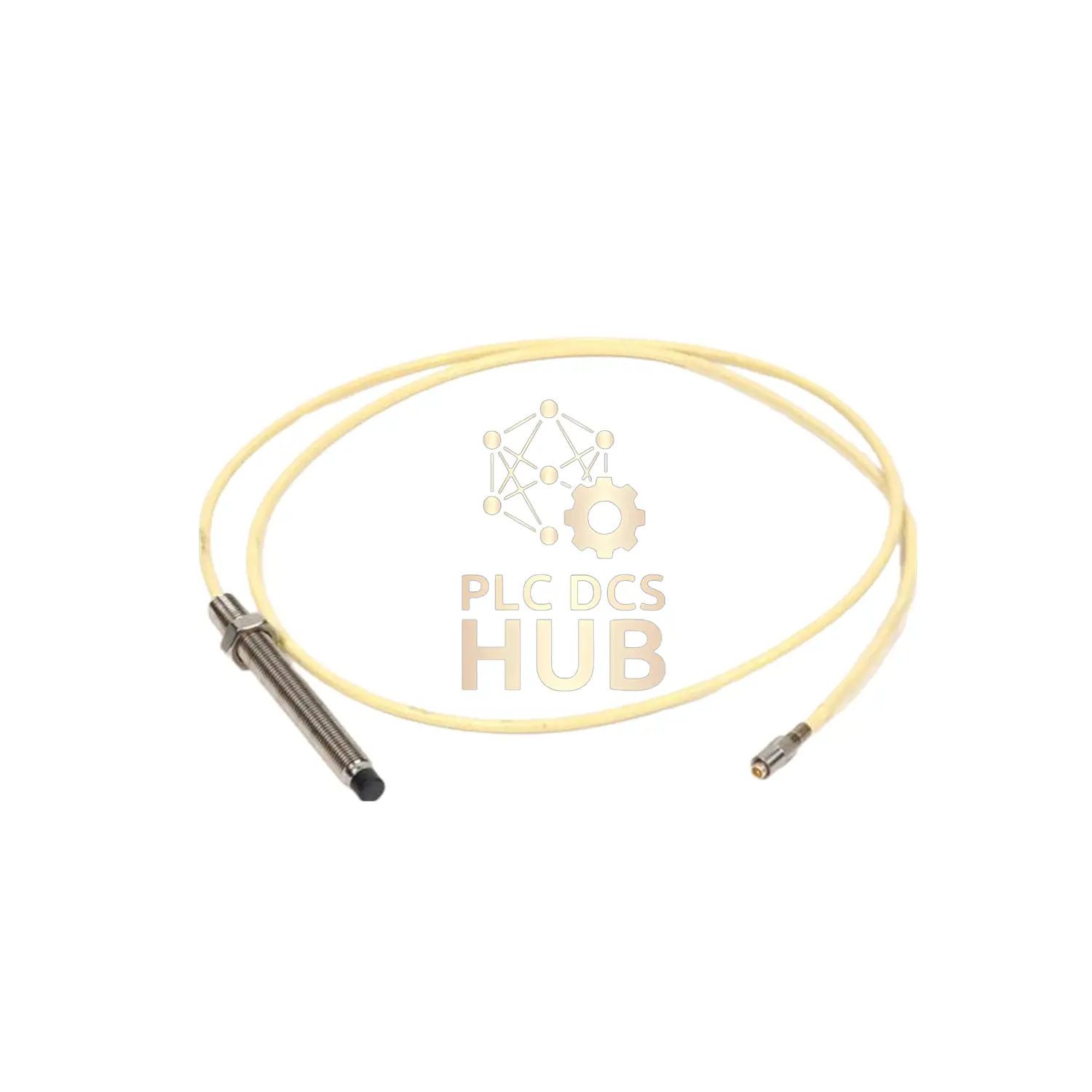

Standard Mount Probe Bently Nevada 21504-00-36-10-02

Description

Bently Nevada 21504 Proximity Transducer: Simple Vibration Monitoring

Product Code Breakdown

• 21504-00-36-10-02:
  • -00: 0mm unthreaded length
  • -36: 3.6in case length
  • -10: 1.0m (39in) total length
  • -02: Miniature male coaxial connector

Key Features

• Wide Range: 80 mils (2.0mm) vibration measurement
• High Accuracy: 200 mV/mil (±4% when calibrated)
• Heat Resistant: Probe works up to +177°C (+350°F)

Technical Specs

• Input: -17.5V to -26Vdc (12mA max)
• Output: 200 mV/mil scale factor
• Temp Range: Probe -34°C to +177°C
• Humidity: 95% non-condensing
• Weight: 0.59kg (1.3lbs)

Where to Use

• — Pump vibration checks
• — Motor health monitoring
• — Compressor diagnostics

Installation Notes

- Mount with 3/8-24 threads.
- Keep probe 10 mils (0.25mm) from target.
- Use included coaxial connector.

Package & Warranty

• Proximity transducer unit
• Miniature male coaxial connector
• 12-month factory warranty

FAQ

Q: Works in hot areas?
A: Yes – probe handles up to +177°C (+350°F).

Q: Waterproof?
A: Resists water, oil, and some chemicals (check specs for details).
