Description

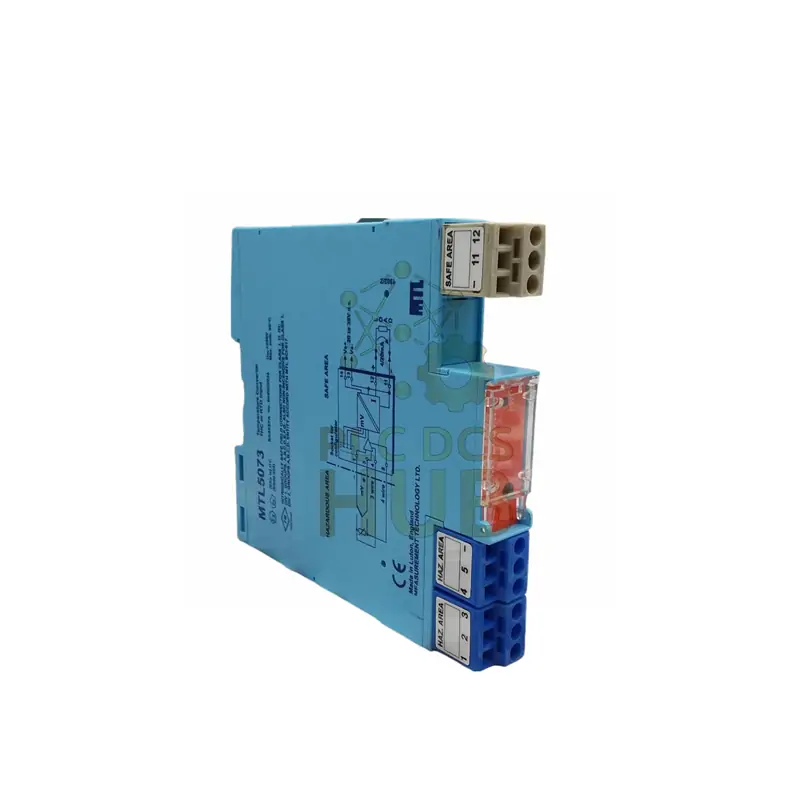

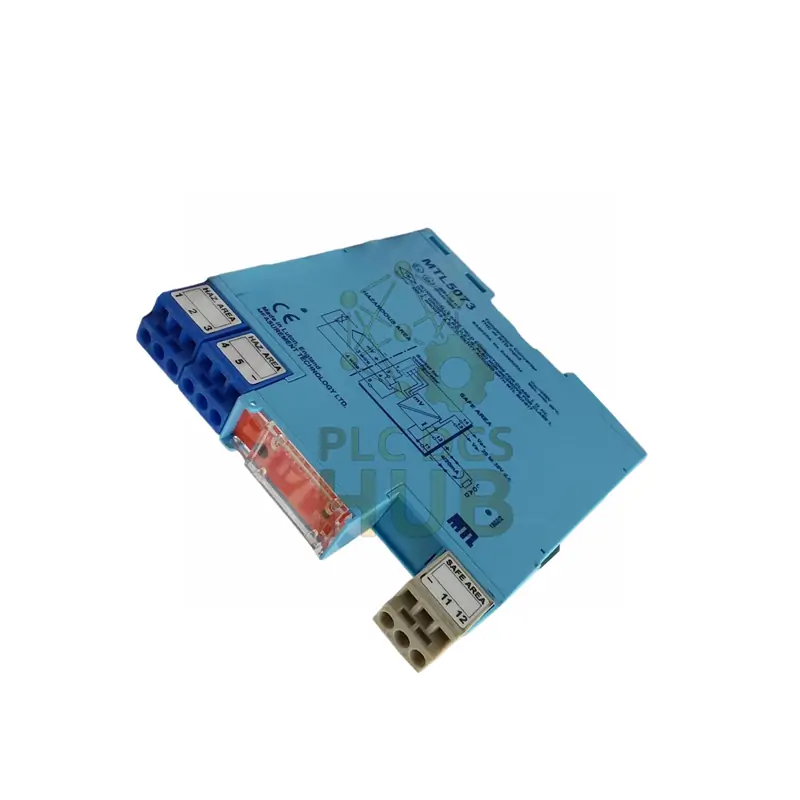

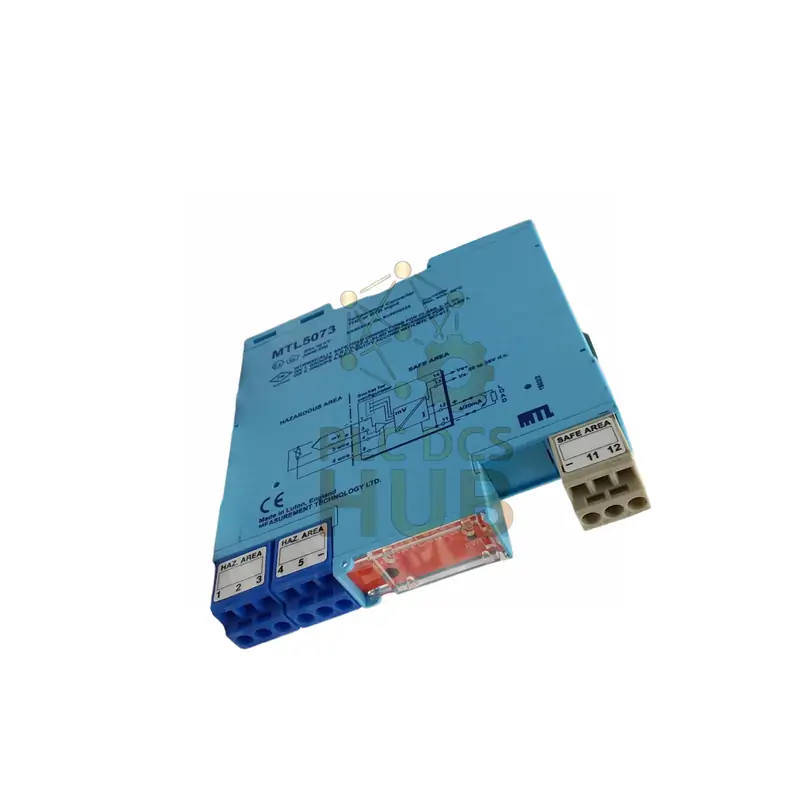

MTL5073: Reliable Temperature Converter for Safe Operations
Make temperature reading safe and easy. The MTL5073 takes signals from temperature sensors and turns them into a standard 4-20mA current. It works with many sensor types and keeps your system safe with strong isolation.
Technical Specifications
- Brand: MTL
- Model: 5073
- Input Types: Thermocouple (Types J,K,T,E,R,S,B,N), mV, RTD (100Ω Pt)
- Output Signal: 4-20mA
- Power Supply: 35V DC Rated
- Isolation: 3 Port Isolated
- Accuracy: High precision conversion
- Response Time: <1 second
- Load Resistance: Up to 600Ω
- Operating Temperature: -20° to +60°C
- Storage Temperature: -40° to +85°C
- Humidity Range: 0-95% Non-condensing
Connection Guide
- Terminal 1: THC/EMF/RTD input –ve
- Terminal 3: THC/EMF/RTD input +ve
- Terminal 4: 3-wire RTD input –ve
- Terminal 5: 4-wire RTD input +ve
- Terminal 11: Output –ve
- Terminal 12: Output +ve
- Terminal 13: Power Supply –ve
- Terminal 14: Power Supply +ve
Default Settings
The MTL5073 converter comes ready to use with common settings: 3-wire RTD input, linearization on, temperature in °C, 0sec damping, output set for 0-250°C range, and alarms enabled.
Frequently Asked Questions
- Q1: Can I use this MTL5073 with an existing thermocouple?
A1: Yes, it supports most common thermocouple types like J, K, and T. - Q2: What power supply do I need?
A2: It needs a DC power supply, rated up to 35V. - Q3: How do I know if the sensor wire breaks?
A3: The MTL5073 has an alarm that can alert you if the circuit opens. - Q4: Is the output signal isolated?
A4: Yes, it has full 3-port isolation for safety. - Q5: What is the warranty for the MTL5073?
A5: It comes with a full 12-month warranty for peace of mind.
Shipping & Support
We ship quickly using FedEx, UPS, and DHL. Your purchase is protected by our 12-month warranty on the MTL5073 temperature converter.
