TR Electronic CDV75M-00012 Safe Encoder | PROFIsafe | 8192 Steps

Description

Product Overview

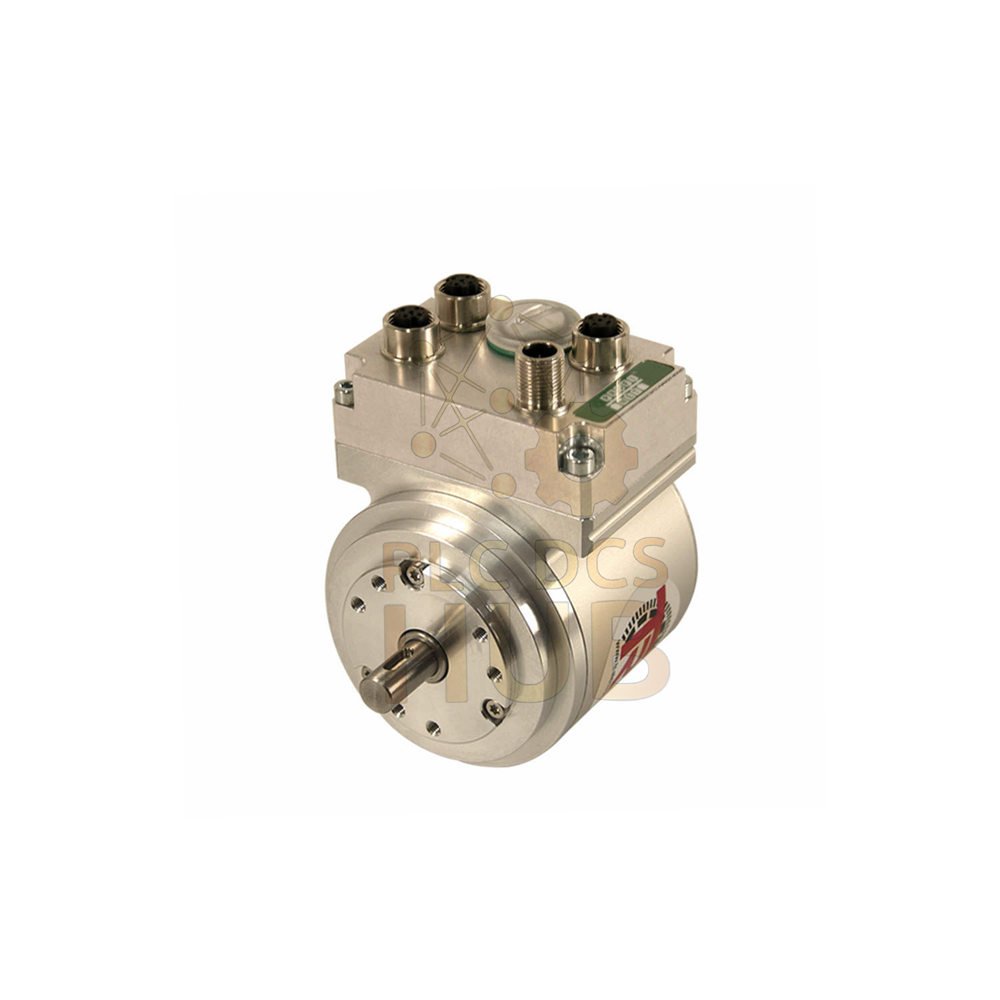

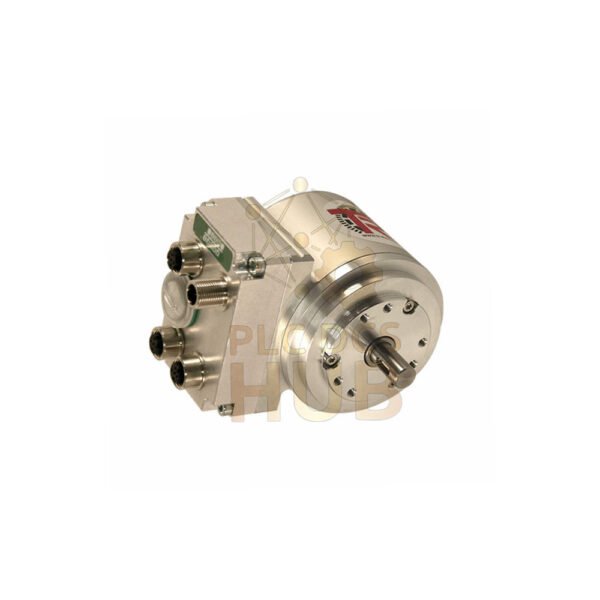

TR Electronic CDV75M-00012 is a safe rotary encoder with PROFINET and PROFIsafe. Specifically, this device uses two redundant scanning systems for safety. Therefore, it provides internal cross-validation for reliable operation.

For example, it offers 8192 steps per turn and up to 32768 turns. Moreover, the total resolution reaches 28 bits. As a result, you get highly precise position feedback for safety-critical applications.

Furthermore, this encoder operates from -20°C to +70°C. Consequently, it suits both cold storage and warm industrial environments. The unit weighs approximately 1 kg.

Key Features

• PROFINET IO with PROFIsafe protocol
• Two redundant scanning systems for safety
• 8192 steps per turn and 32768 turns
• Safe integration time from 50 to 500 ms
• Velocity output in increments per safe time
• PFH as low as 1.45×10⁻⁹ per hour

Technical Specifications

Basic Identification

• Brand: TR Electronic
• Model: CDV75M-00012
• Type: Safe Rotary Encoder with PROFINET
• Shaft/Flange: 10 mm Keyway / 19.5 mm with ZB50/D75, 9 x M4
• Connector Position: Radial
• Connector Type: 4 x M12
• Remark: TTL Incremental output available

Measurement Resolution

• Steps per revolution: 8192
• Revolutions: 32768
• Total resolution: 28 bits
• Main measurement system capacitance: 8.192 steps/rev, 32.768 turns

Safety Architecture

• Safety principle: 2 redundant scanning systems with internal cross validation
• Safe integration time: 50 to 500 ms
• Unsafe integration time: 5 to 500 ms
• Monitoring window size: 50 to 4000 increments
• Standstill tolerance preset: 1 to 5 increments per safe integration time
• Counting direction: Forward or Backward selectable
• Output code: Binary

Electrical Data

• Voltage supply: 13 to 27 VDC, SELV or PELV
• Current consumption at no-load: Less than 180 mA at 24 VDC
• Cycle time: 1 ms minimum (IRT or RT mode)
• Transmission rate: 100 MBit/s

PROFINET Interface

• Protocol: PROFINET IO with PROFIsafe
• PROFIsafe profile number: 3.192b
• Standards: IEC 61158 and IEC 61784-1
• Incremental output: Available without zero impulse
• Sine/Cosine output: Optional
• Factory preset pulses: 4096, 8192, 12288, 16384, or 20480

TR Specific Functions

• Velocity output in increments per safe integration time
• Preset function available
• Configurable via PROFINET

Mechanical Data

• Maximum mechanical speed: 6000 rpm
• Shaft load axial: up to 50 N
• Shaft load radial: up to 90 N
• Bearing life: ≥ 3.9×10¹⁰ revolutions
• At 3000 rpm and 60°C operating temperature
• Permissible angular acceleration: ≤ 10⁴ rad/s²
• Start-up torque at 20°C: 0.6 Ncm typical
• Mass: 1 kg typical

Environmental Conditions

• Protection class: IP54 per DIN EN 60529
• Working temperature: -20°C to +70°C
• Storage temperature: -30°C to +80°C (dry)
• Relative humidity: 98%, non-condensing per DIN EN 60068-3-4
• Vibration: ≤ 100 m/s², sine wave 50 to 2000 Hz per DIN EN 60068-2-6
• Shock: ≤ 600 m/s², half-sine for 5 ms per DIN EN 60068-2-27
• EMC immunity: EN 61000-6-2
• EMC emissions: EN 61000-6-3

Safety Data (High Demand Mode)

• PFH: 1.45×10⁻⁹ per hour
• PFDavg (T = 15 years): 9.53×10⁻⁵
• MTTFd: 421 years (high)
• DCavg: 95% (high)

Installation Guide

• First, mount the encoder using the 9 x M4 mounting holes.
• Then, connect the 4 x M12 connectors radially.
• Next, use a 10 mm keyway shaft coupling.
• Also, keep cables away from high voltage sources.
• After that, secure all connectors tightly for IP54 protection.
• Finally, do not exceed the specified shaft loads.

Commissioning & Maintenance

• First, configure the encoder via PROFINET using any standard tool.
• Then, set the safe integration time between 50 and 500 ms.
• Next, adjust the monitoring window size as needed.
• Also, select forward or backward counting direction.
• For maintenance, check shaft alignment every 12 months.
• Additionally, clean connectors with a dry cloth only.
• Finally, no lubrication is required for normal use.

Compatibility

• This encoder works with any PROFINET IO controller.
• For safety, use a PROFIsafe-enabled master like Siemens F-CPU.
• Specifically, it complies with IEC 61158 and IEC 61784-1.
• Therefore, it integrates seamlessly with most industrial PLCs.

Certifications

• CE marked for European markets
• PROFIsafe certified (profile No. 3.192b)
• IP54 tested for dust and water spray protection
• Complies with EN 61000-6-2 and EN 61000-6-3 for EMC
• Meets DIN EN 60529, 60068-2-6, and 60068-2-27 standards

Package Contents

• TR Electronic CDV75M-00012 safe encoder (1 unit)
• Mounting flange with 9 x M4 screws
• 4 x M12 mating connectors
• Quick start guide
• Configuration software download link

Warranty & Shipping

We offer a 12-month warranty from the shipment date. Specifically, this covers manufacturing defects only. However, normal wear and misuse are not included.

We ship worldwide via FedEx, UPS, and DHL. Therefore, express delivery takes 3 to 7 business days. Furthermore, we provide tracking numbers within 24 hours.

Typical Applications

• Safe position feedback for servo drives
• Robot joint monitoring in collaborative cells
• Packaging machine safety functions
• Wind turbine blade pitch control
• Automated guided vehicle steering feedback
• Elevator door position safety monitoring

Diagnostic Capabilities

• Internal cross-validation between two scanning systems
• PROFIsafe cyclic redundancy check (CRC)
• Velocity output for overspeed detection
• Standstill monitoring with adjustable tolerance
• Real-time status via PROFINET diagnostics

Frequently Asked Questions (FAQ)

1. What makes this encoder “safe” compared to standard encoders?

This encoder uses two redundant scanning systems inside one housing. Therefore, it performs internal cross-validation on every measurement. As a result, it detects any internal fault immediately and stops safely.

2. What safety level can I achieve with this encoder?

The PFH value is 1.45×10⁻⁹ per hour. Consequently, you can use it in SIL 3 systems per IEC 61508. For machine safety, it meets Performance Level e (PLe) per EN ISO 13849.

3. Can I use this encoder at temperatures below 0°C?

Yes, the working temperature range is -20°C to +70°C. Therefore, it works in cold storage and outdoor applications. However, keep the storage temperature between -30°C and +80°C.

4. How do I set the safe integration time correctly?

First, consider your machine’s stopping time. Then, set the safe integration time between 50 and 500 ms. A shorter time gives faster reaction but may cause nuisance trips. Start with 200 ms and adjust downward gradually.

5. What is the difference between IRT and RT mode?

IRT (Isochronous Real-Time) provides deterministic cycle times as low as 1 ms. RT (Real-Time) is slightly slower but still very fast. Both work well for safety applications. Choose IRT for servo drives requiring synchronized motion.

6. Which incremental pulse count should I choose?

Options include 4096, 8192, 12288, 16384, or 20480 pulses. Therefore, higher pulse counts give better resolution. However, they also require faster controller processing. For most applications, 8192 pulses works well.

7. Is IP54 protection enough for my application?

IP54 protects against dust and water spray from any direction. Consequently, it suits most indoor industrial environments. However, for washdown areas or outdoor rain, choose a higher IP rating like IP65 or IP67.

Selection Guide

• Choose CDV75M-00012 when you need PROFINET with PROFIsafe safety communication.
• Pick this model for applications requiring two redundant scanning systems.
• Select this encoder for SIL 3 or Performance Level e systems.
• Consider this unit for operating temperatures from -20°C to +70°C.
• Add the sine/cosine output option if you need analog speed feedback.
• For shaft connection, match your existing 10 mm keyway coupling exactly.
• Avoid this encoder if you need SSI interface or higher than 6000 rpm speed.
